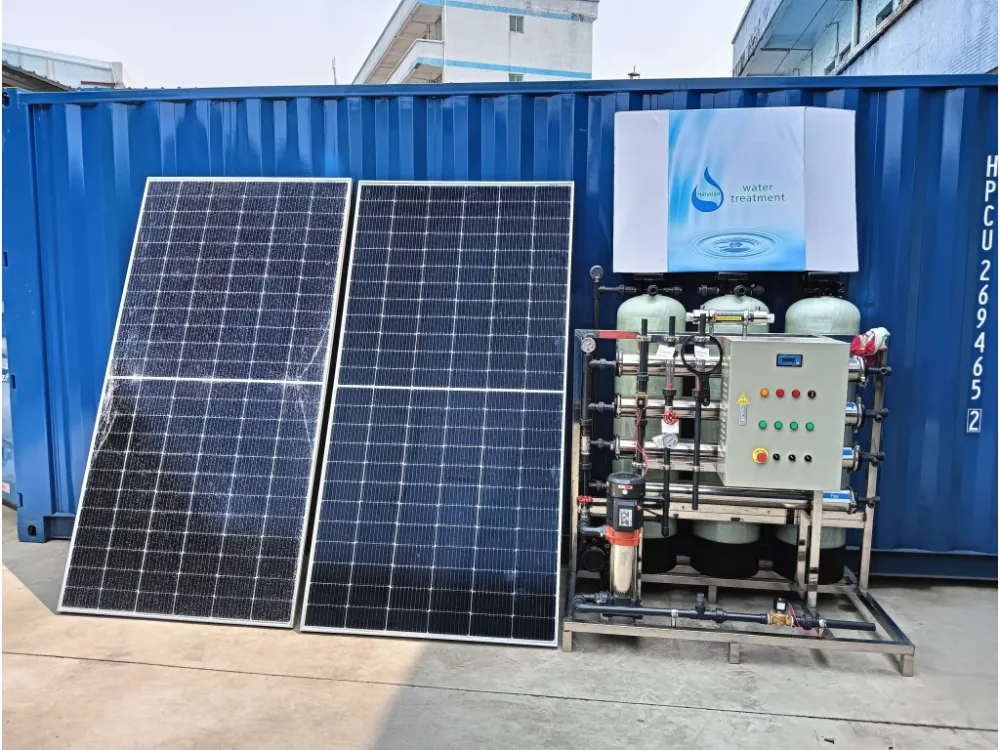

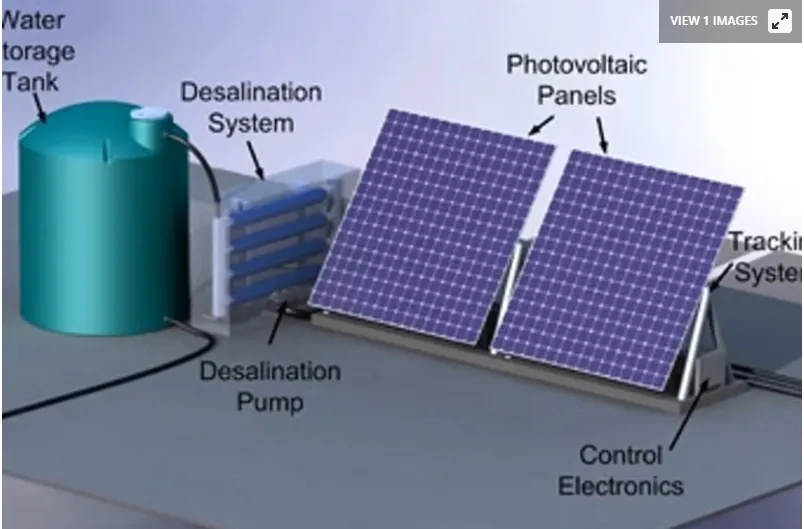

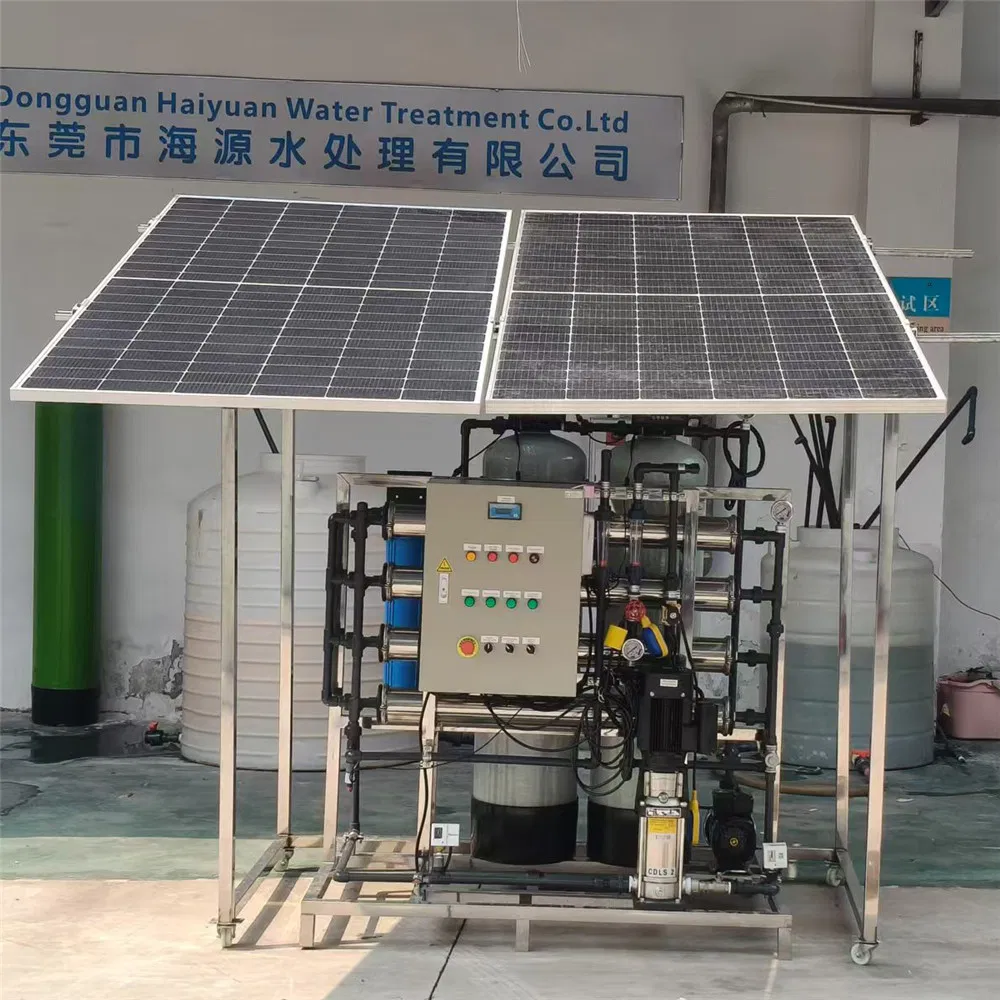

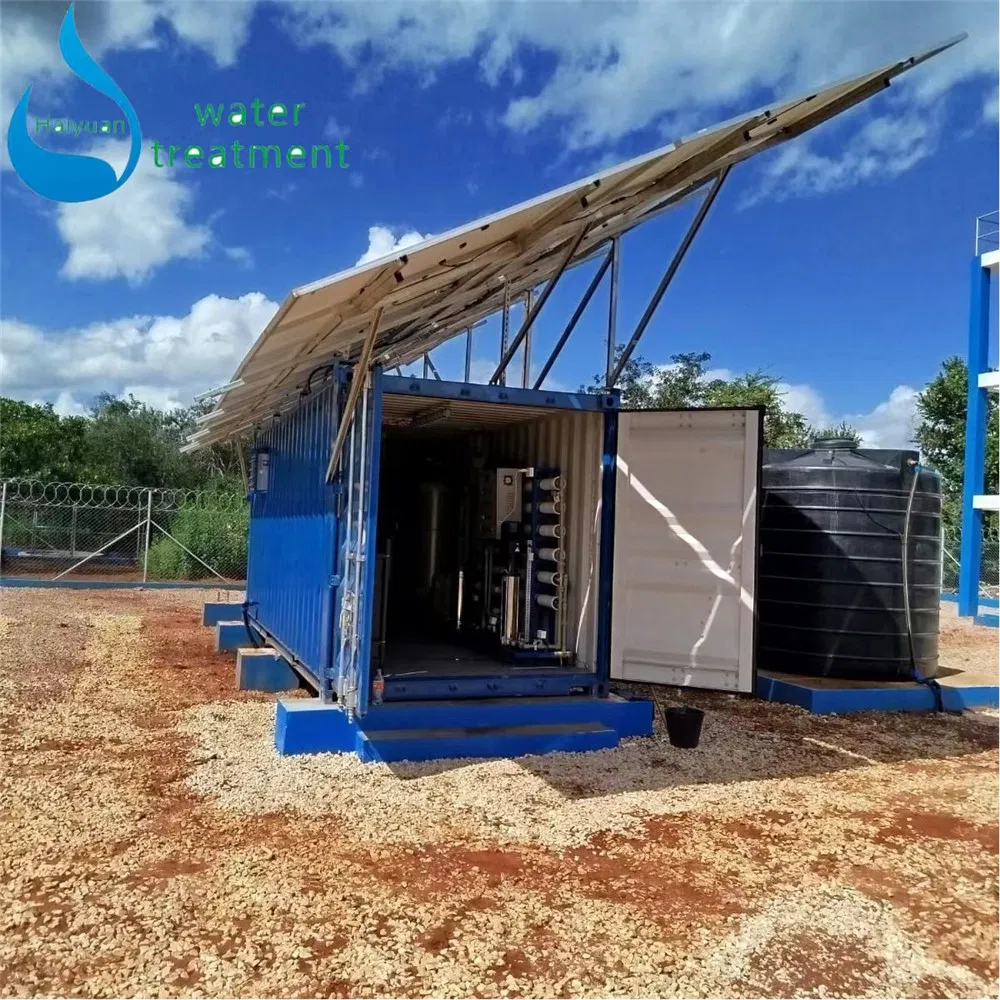

A solar powered reverse osmosis water system is a device that uses solar energy as energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates multiple technical links such as solar heat collection, power conversion and reverse osmosis membrane separation to achieve a green and sustainable process of extracting fresh water.

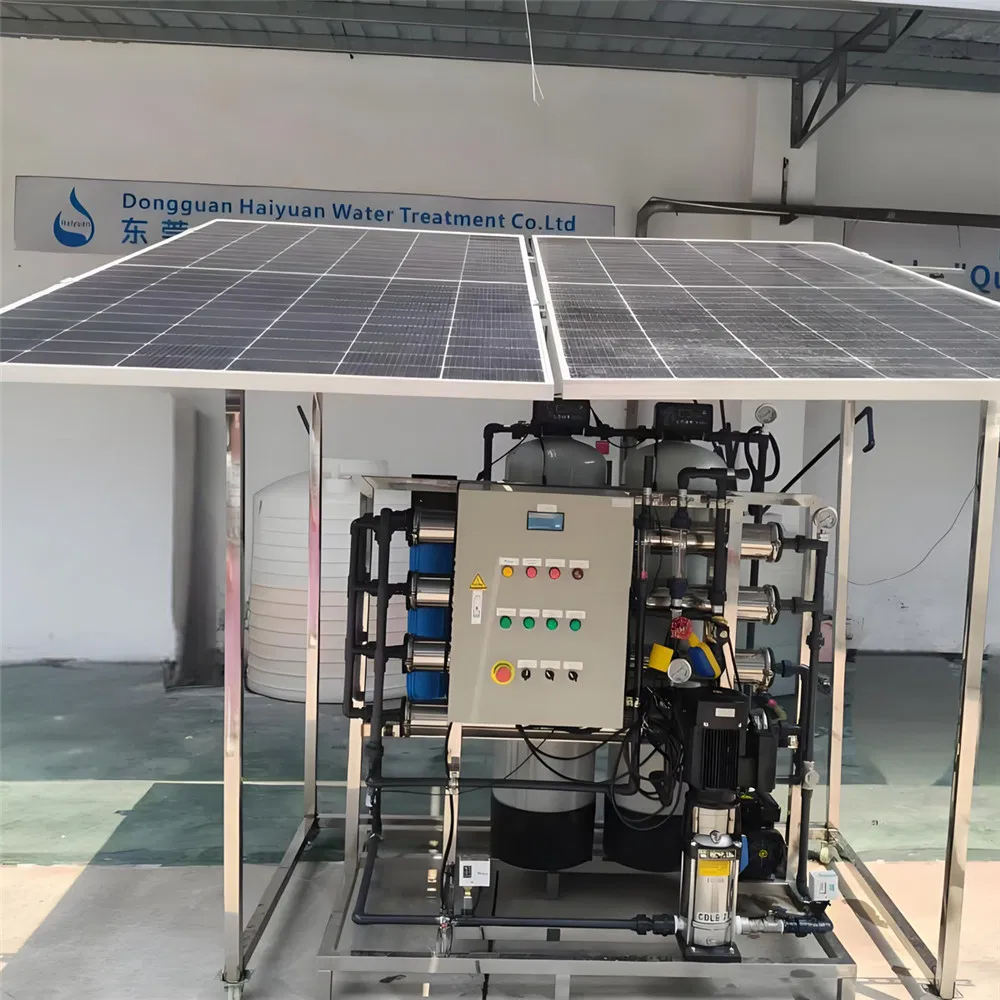

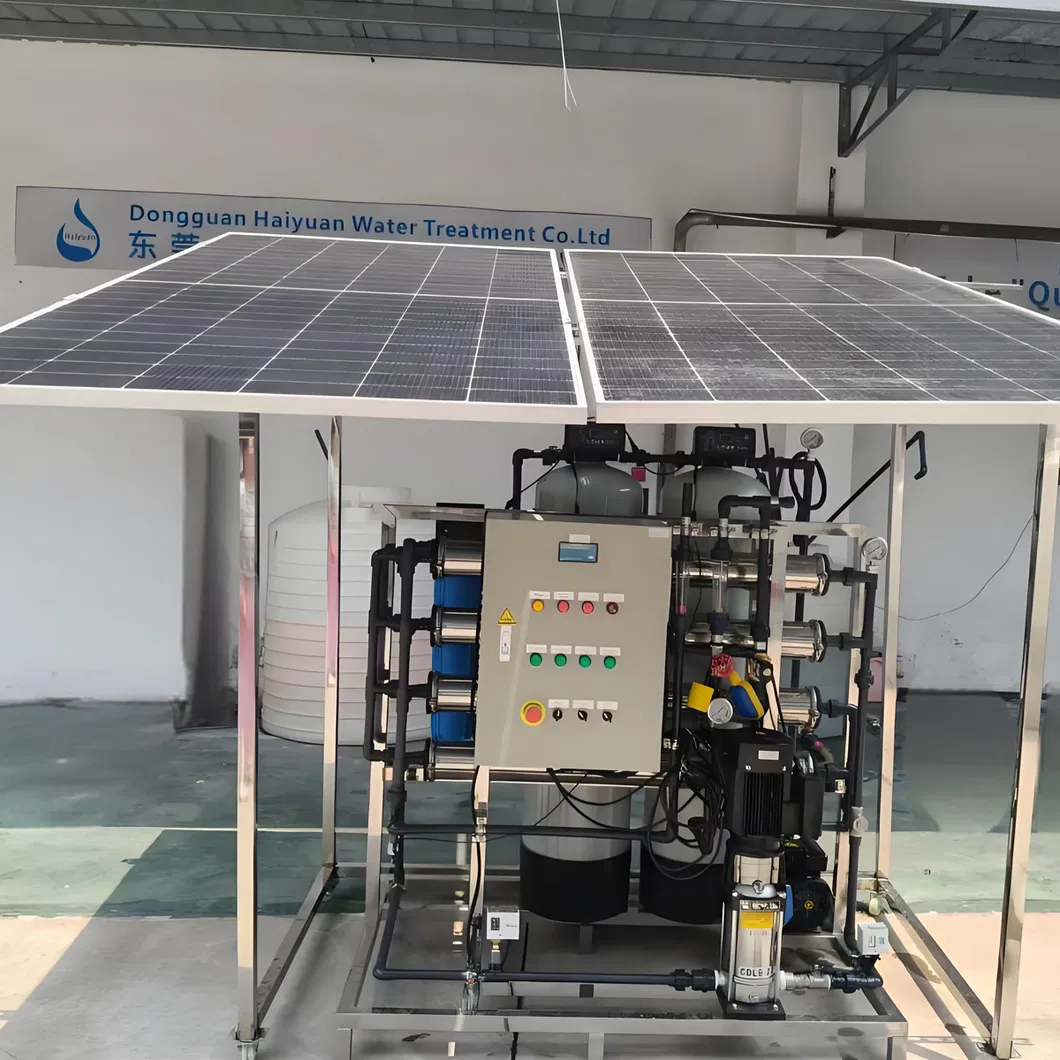

| HY-1000L/hr Solar Reverse Osmosis System Specifications | |||
|---|---|---|---|
| Flow rate | 1000L/hr | Recovery rate | 50% |
| Applicable power | 1PH x 220V, 50Hz | Rated power | 1.65KW |
| Solar powered | 35 KW | Inverter | 44KW |
| Solar panel | 14 PCS | Battery | 14PCS, 36KW |
| Incoming TDS | 80-100 ppm | Output TDS | <0.6ppm |
The system provides fresh water supply by desalinating brackish water, improving quality of life and responding effectively to natural disasters.

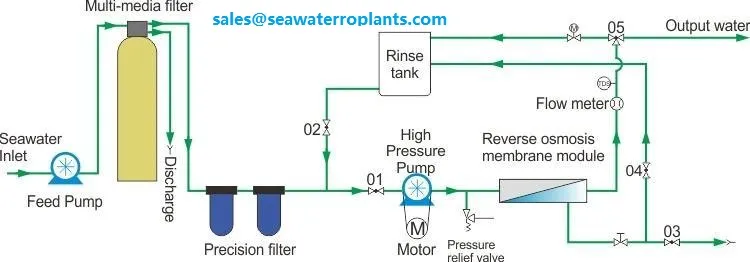

| Part | Component | Function |
|---|---|---|
| Pre-treatment | Quartz sand filter | Remove suspended particles and large impurities |
| Active Carbon Filter | Remove color, free chloride, and organic matter | |
| Anti-scalant system | Prevent membrane blocking | |
| RO Main Part | High pressure pump (SS316L) | Provide high pressure for RO membranes |
| Ro membranes | >98% desalination rate, removes ions |

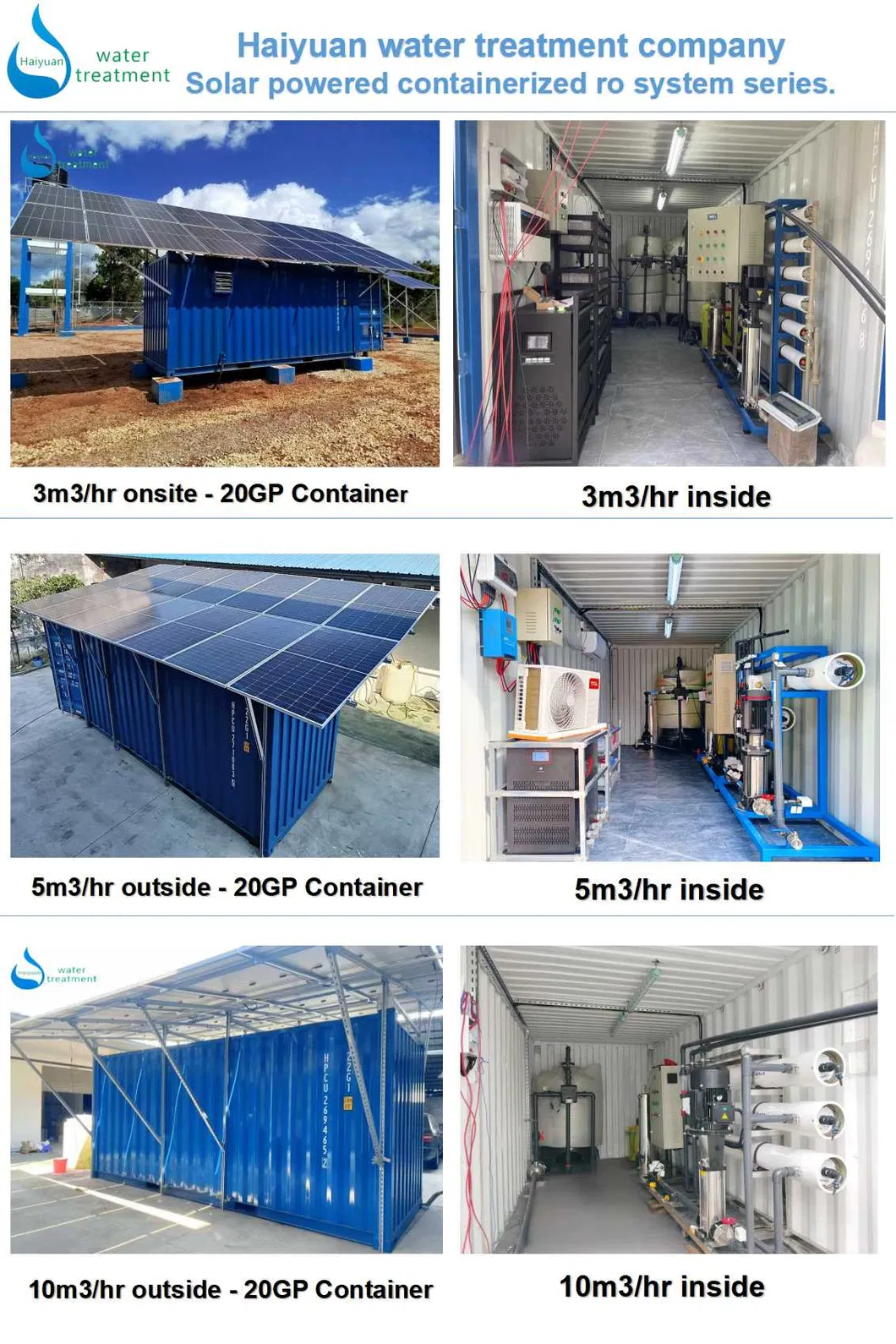

| Model (20GP) | Membrane Qty | Capacity m3/D | Weight/kg | Power |
|---|---|---|---|---|
| HYSW-20GP-20 | 4040×8 | 20 | 2800 | 220V-440V / 50Hz-60Hz |
| HYSW-20GP-30 | 4040×12 | 30 | 2920 | |
| HYSW-20GP-40 | 4040×16 | 40 | 3030 |
| Model (40HGP) | Membrane Qty | Capacity m3/D | Weight/kg | Operating Pressure |
|---|---|---|---|---|
| HYSW-40HGP-60 | 8040×6 | 60 | 4900 | 4.0-6.5 Mpa |
| HYSW-40HGP-100 | 8040×10 | 100 | 5150 | 4.0-6.5 Mpa |
| HYSW-40HGP-150 | 8040×16 | 150 | 5530 | 4.0-6.5 Mpa |
We have more than 15 years of experience in water treatment systems, providing integrated professional and technical manufacturing. Our mission is to be your water treatment industry consultant, offering high-quality service and reasonable prices.
