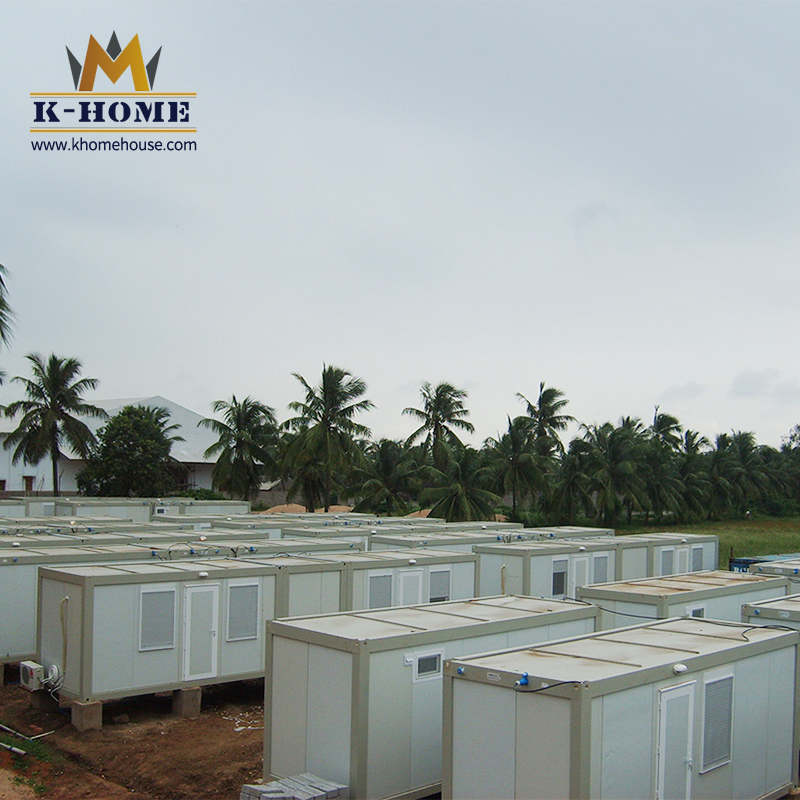

Temporary Portable Living Quarters Construction Site Containerized Housing Unit

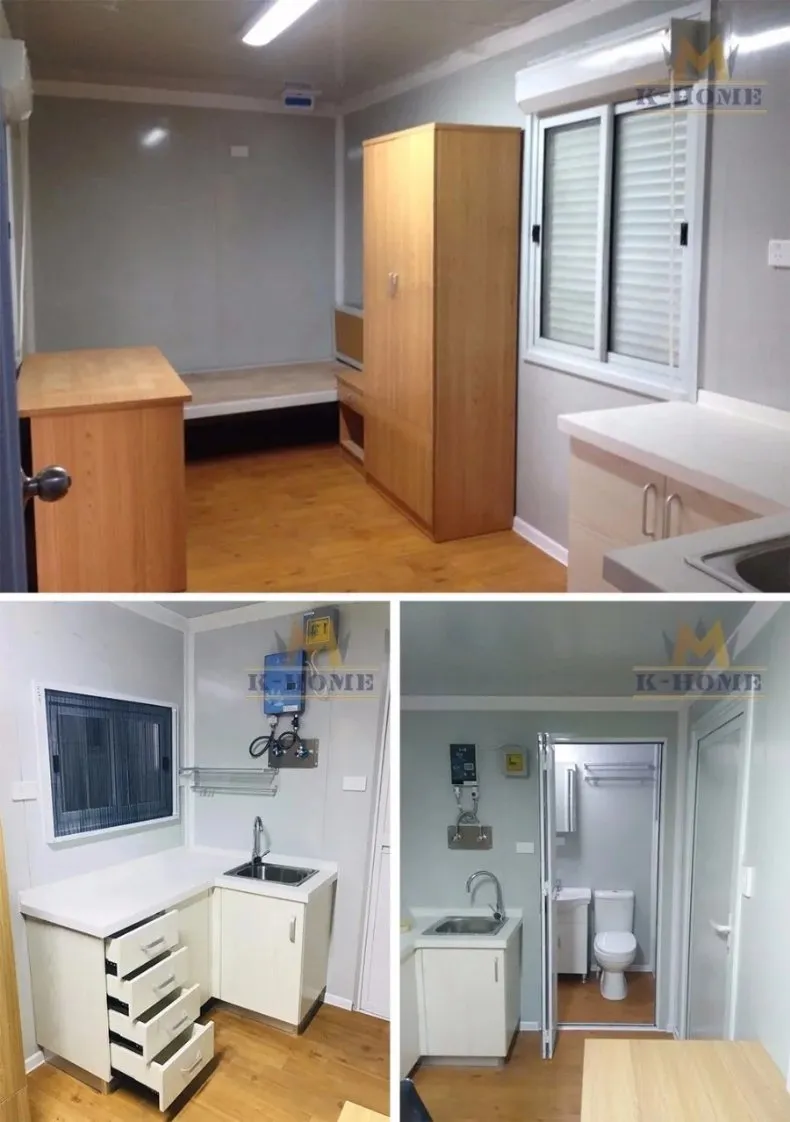

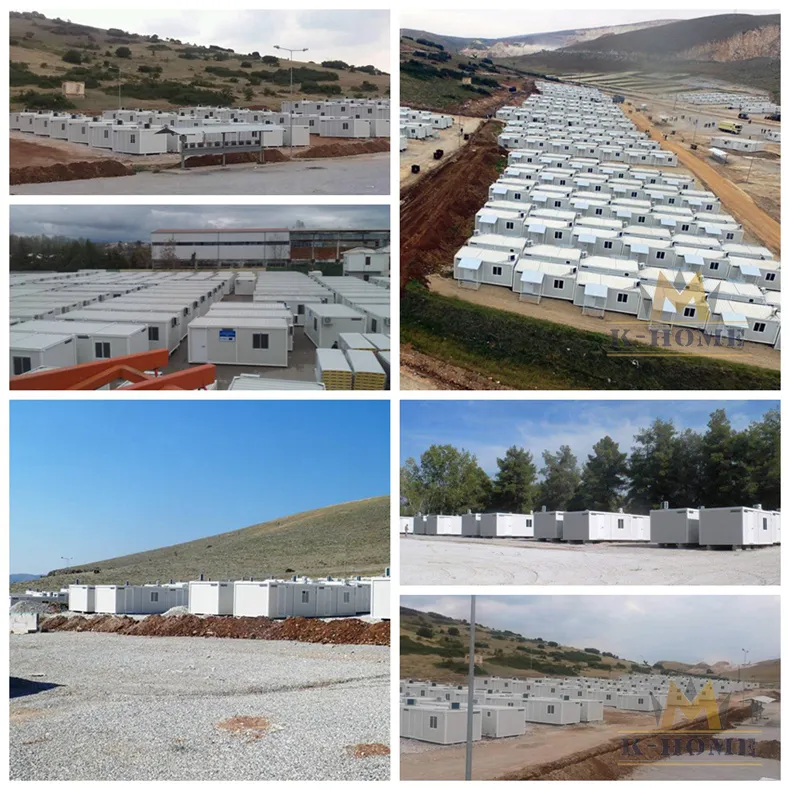

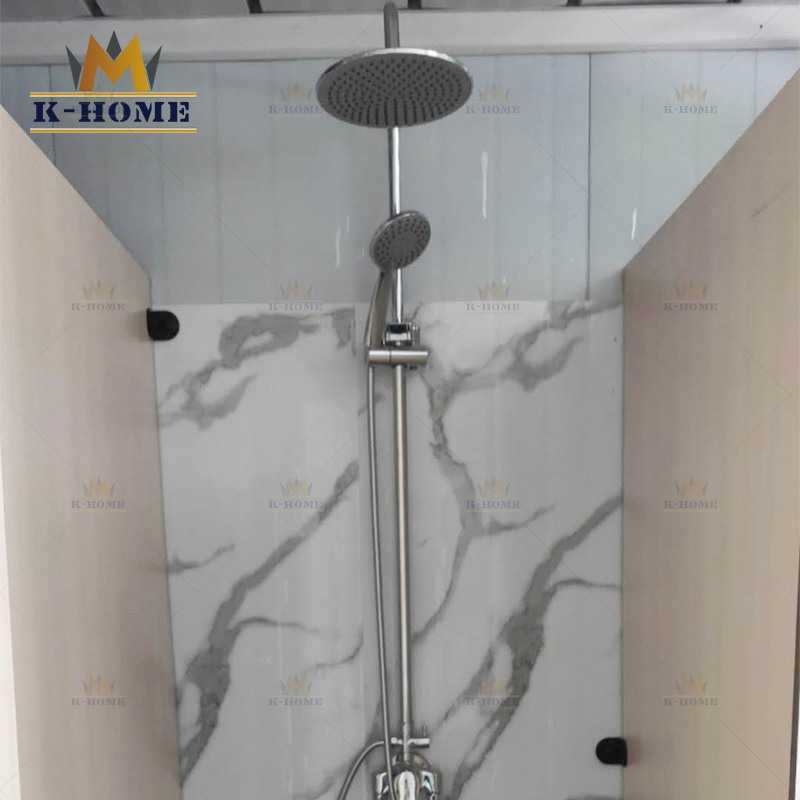

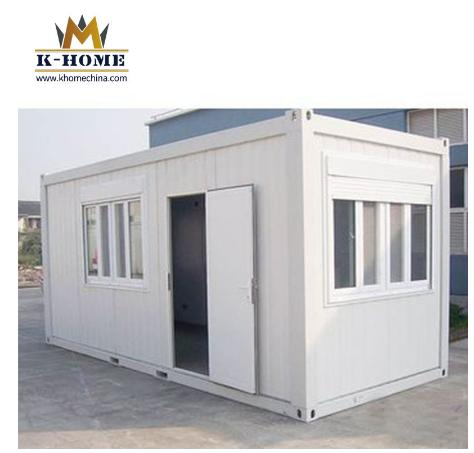

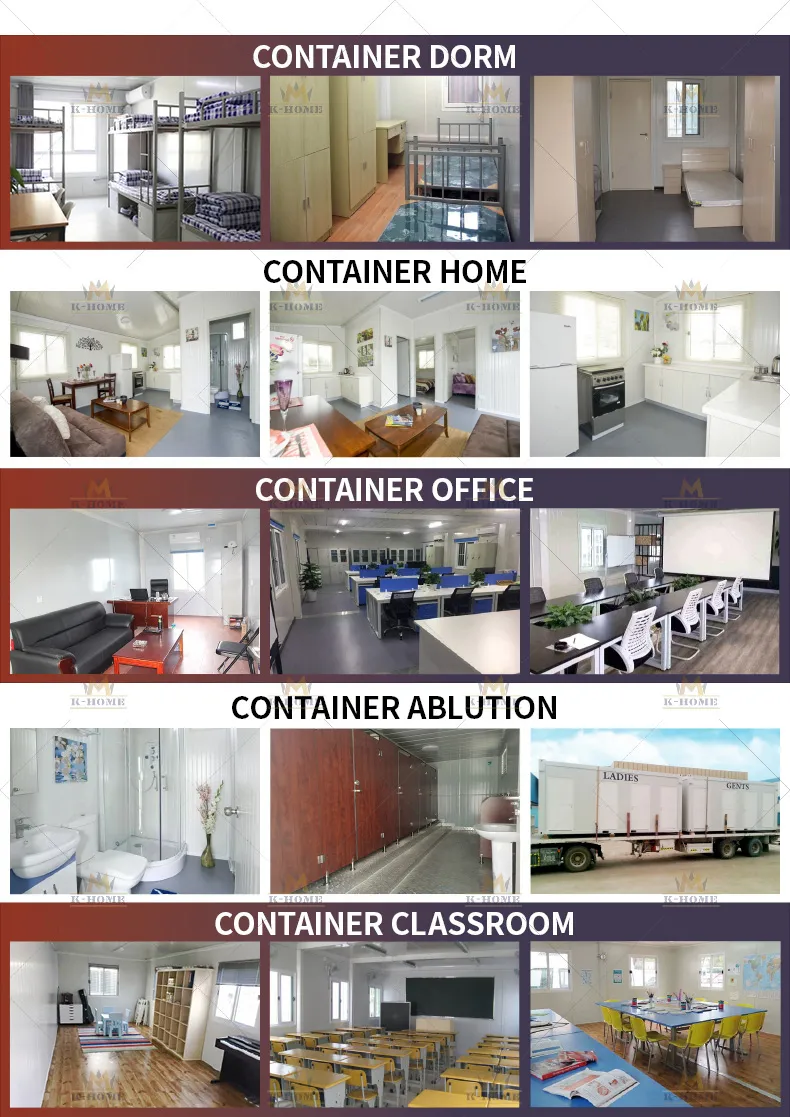

Modular Container Standard Equipment includes two windows, one door, distribution box, fluorescent lamp, socket, etc. The prefab tiny house is widely used as remote site camps, temporary dwellings, worker camps, warehouses, temporary schools, and site offices. It can be equipped with toilet boxes and shower boxes. The main frame is made of special steel plate, and the side plate adopts sound insulation packing, providing heat insulation, cold prevention, and fire prevention. This product is simple to install and move, designed for long-term use.
| Category | Feature | Details |
|---|---|---|
| Size & Structure | Unit Area | 18m² (Length: 6m, Width: 3m, Height: 2.8m) |

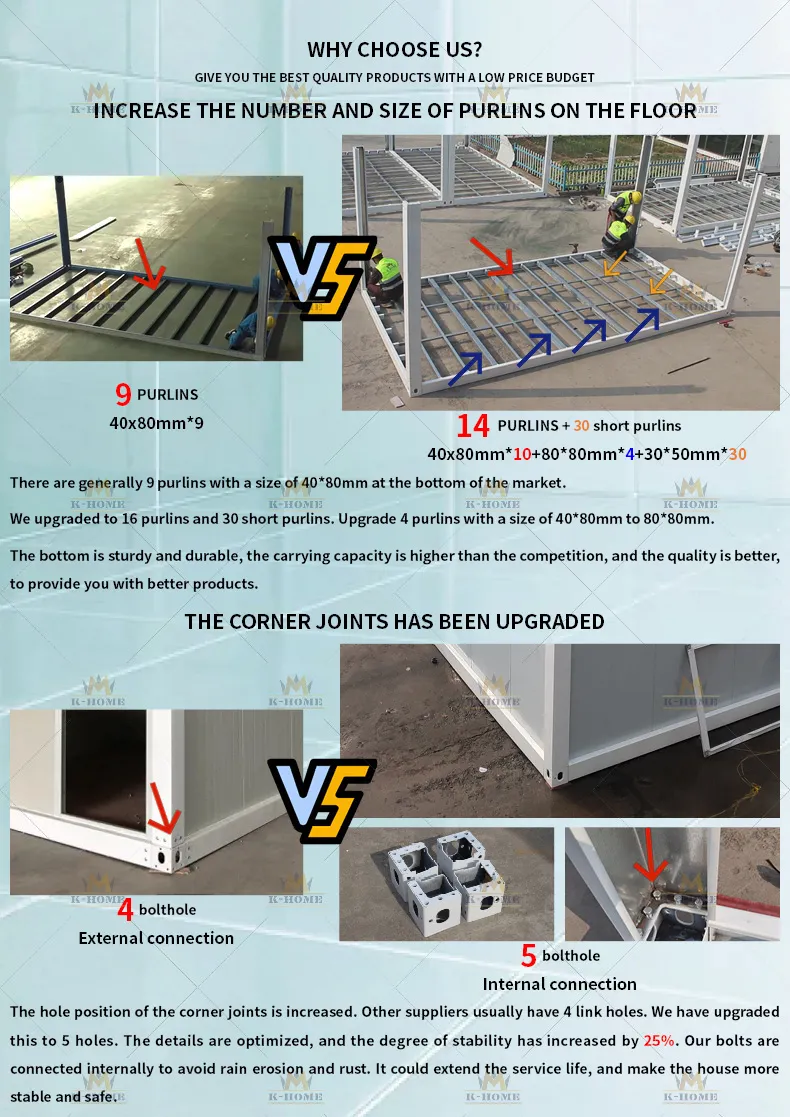

| Floor System | 3mm Galvanized Steel main structure + 15mm MGO board + PVC leather | |
| Column System | 2.5mm Shaped Galvanized Steel | |
| Roof System | Roof Insulation | 0.4mm steel sheet + 50mm glass wool insulation |
| Roof Ceiling | Shaped steel plate with various patterns | |

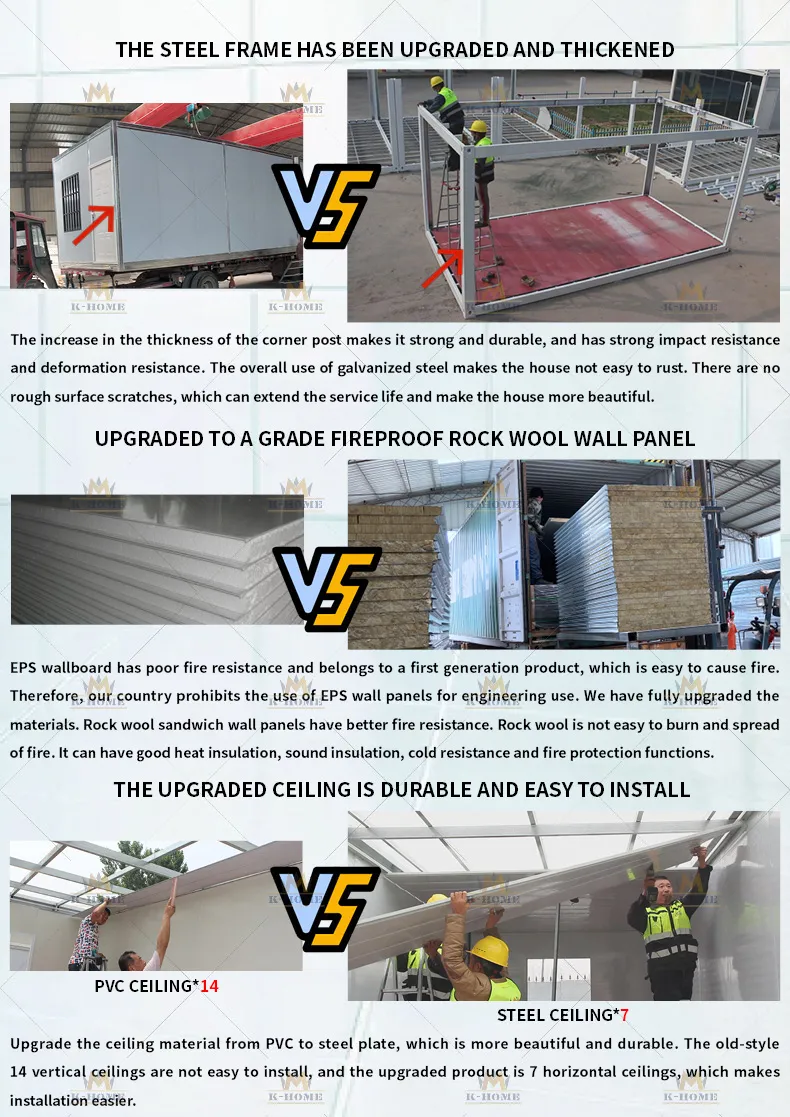

| Walls | Wall Panel | 50mm Sandwich Panel (0.35mm thickness steel) |

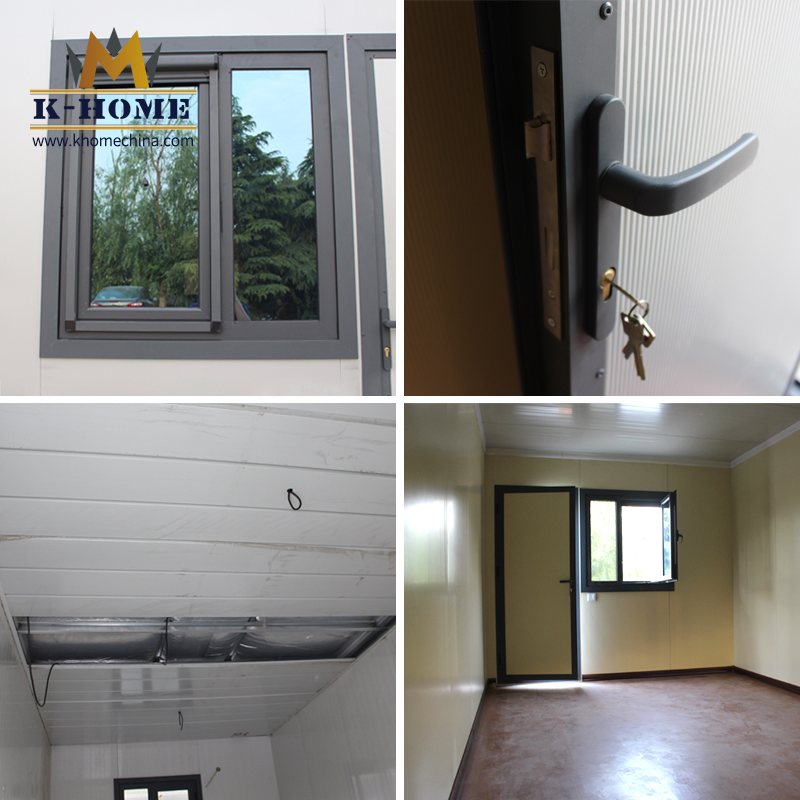

| Openings | Door & Window | Steel door (2000*980mm); Aluminum alloy sliding window with screens |
| Electrical | System | LED lights, double sockets, air-switch, and safety protection box |
