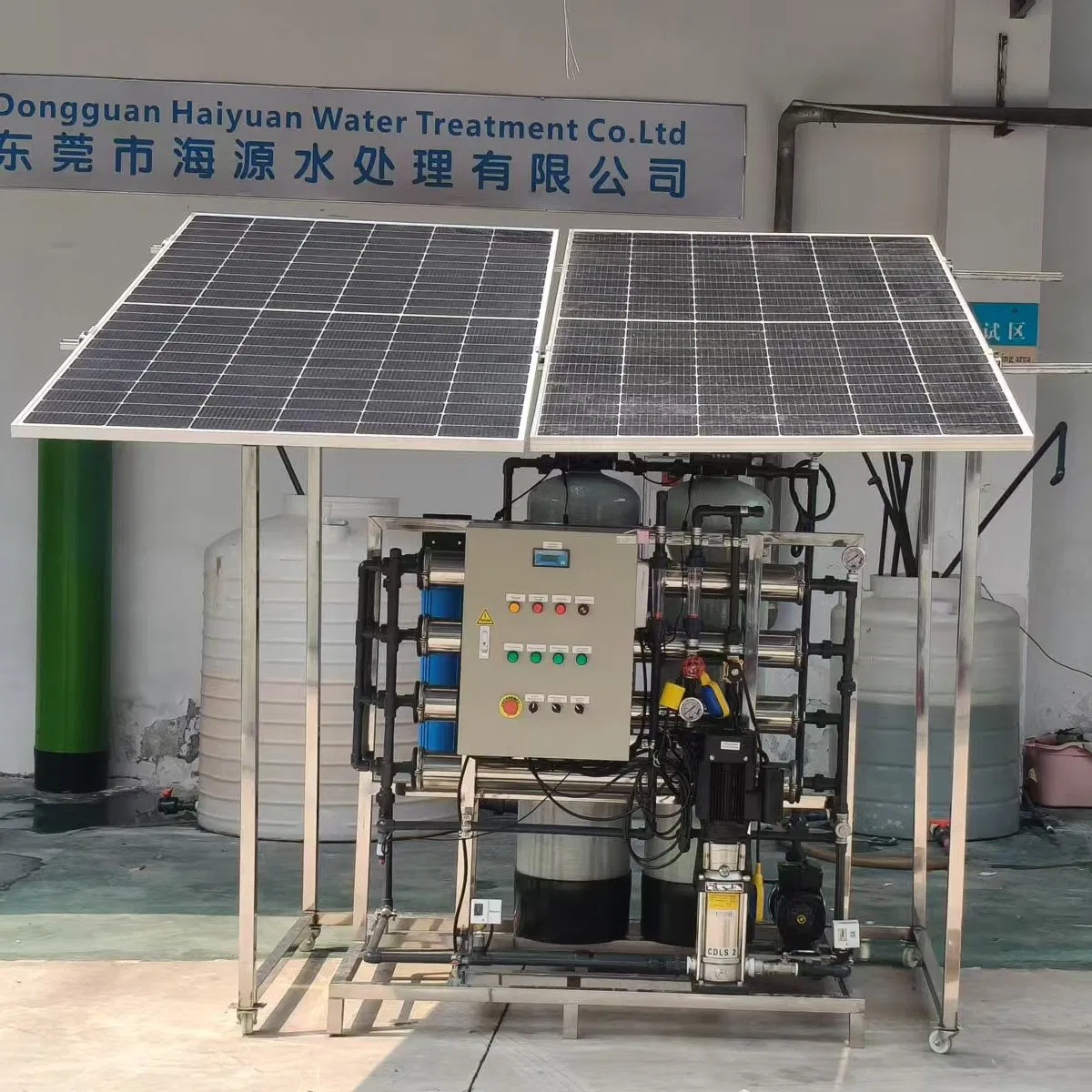

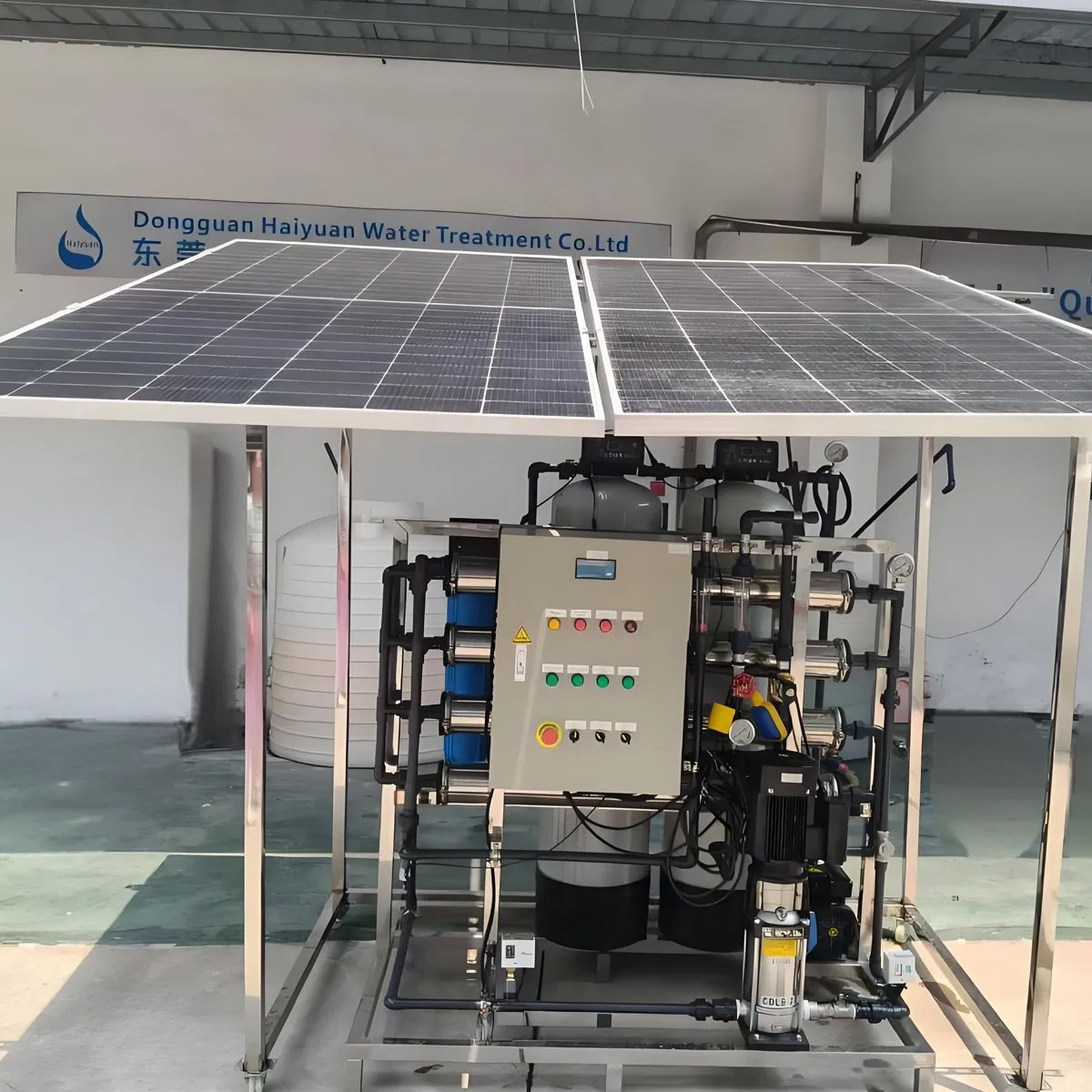

Solar Reverse Osmosis Ro System 1000LPH Solar Powered Water Treatment Systems

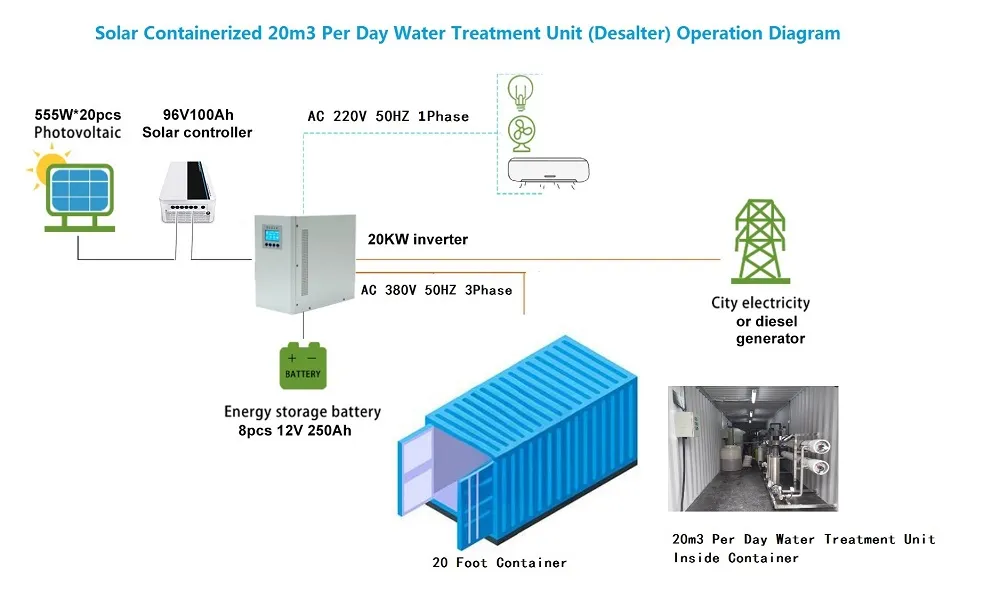

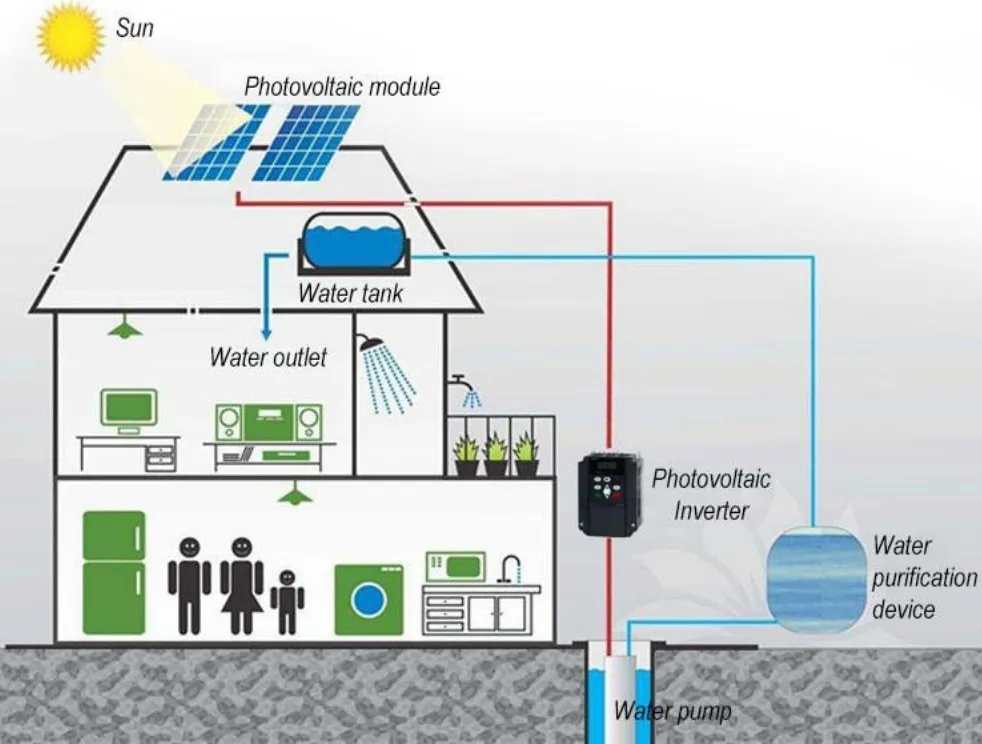

A solar powered reverse osmosis water system is a device that uses solar energy as energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates multiple technical links such as solar heat collection, power conversion and reverse osmosis membrane separation to achieve a green and sustainable process of extracting fresh water.
| HY-1000L/hr Solar RO System Parameters | |||
|---|---|---|---|
| Flow rate | 1000L/hr | Recovery rate | 50% |
| Rated power | 1.65KW | Solar panel | 14 PCS |
| Solar powered | 35 KW | Battery | 14PCS, 36KW |
| Incoming TDS | 80-100 ppm | Output TDS | < 0.6ppm |
| Working pressure | 2.9 Bar | Operating Temp | 5-45ºC |

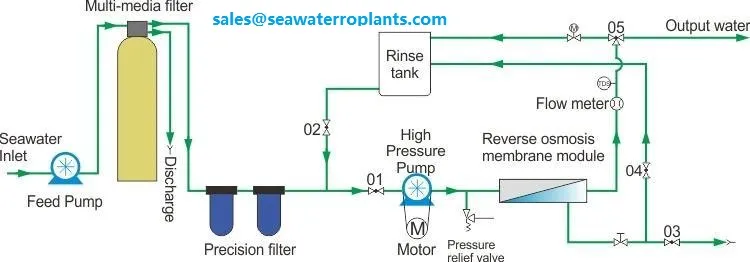

| Stage | Component | Function |
|---|---|---|
| Pre-treatment | Quartz sand filter | Remove suspended particles and large impurities. |
| Active Carbon Filter | Remove color, free chloride, and organic matter. | |
| 5/1 Micron filter | Remove micro colloids to protect RO membranes. | |
| RO Main Part | High pressure pump | Stainless steel 316L, provides pressure for osmosis. |
| RO membranes | Desalination rate >98%, removes ions. |

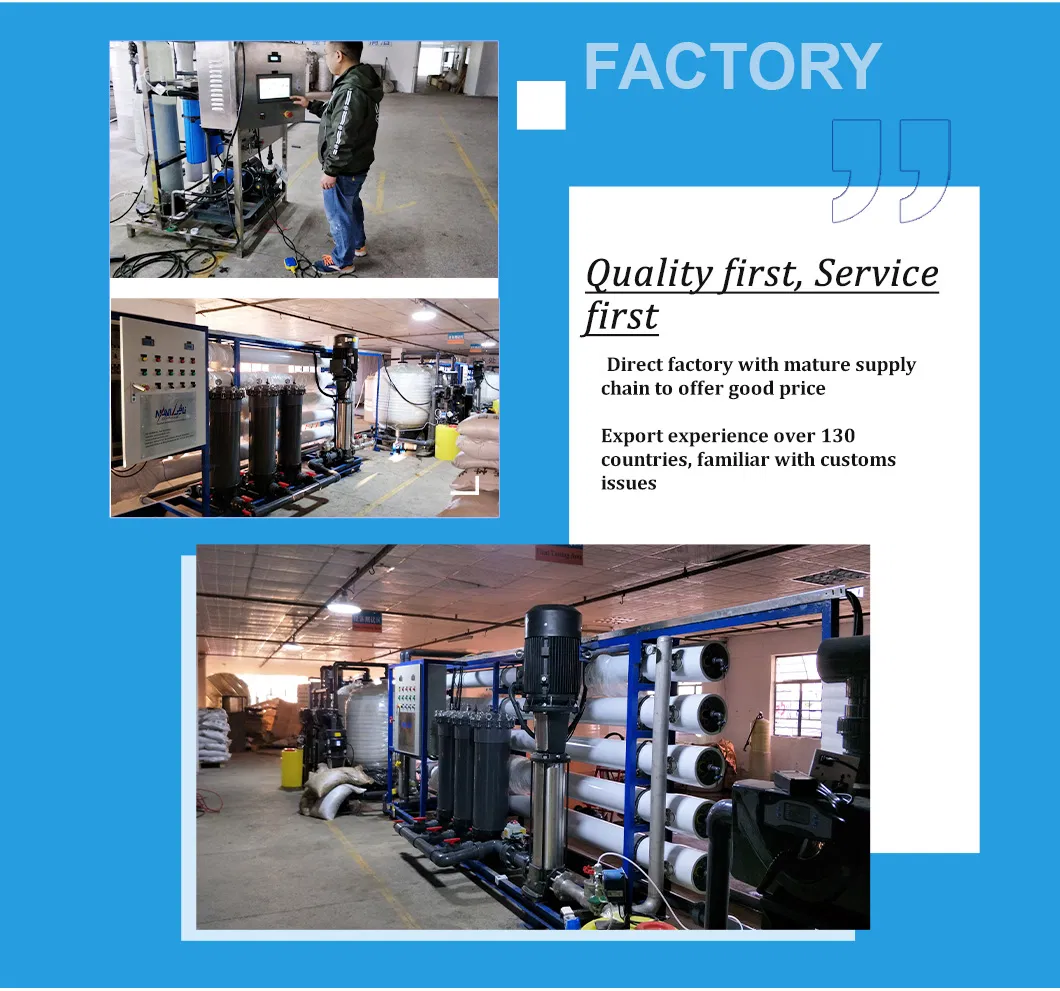

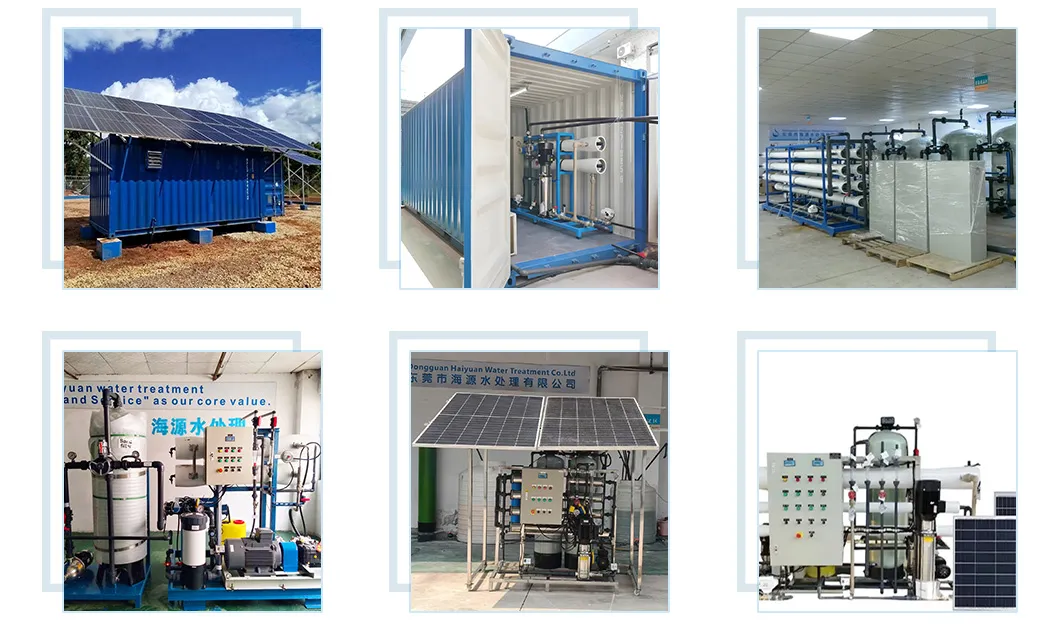

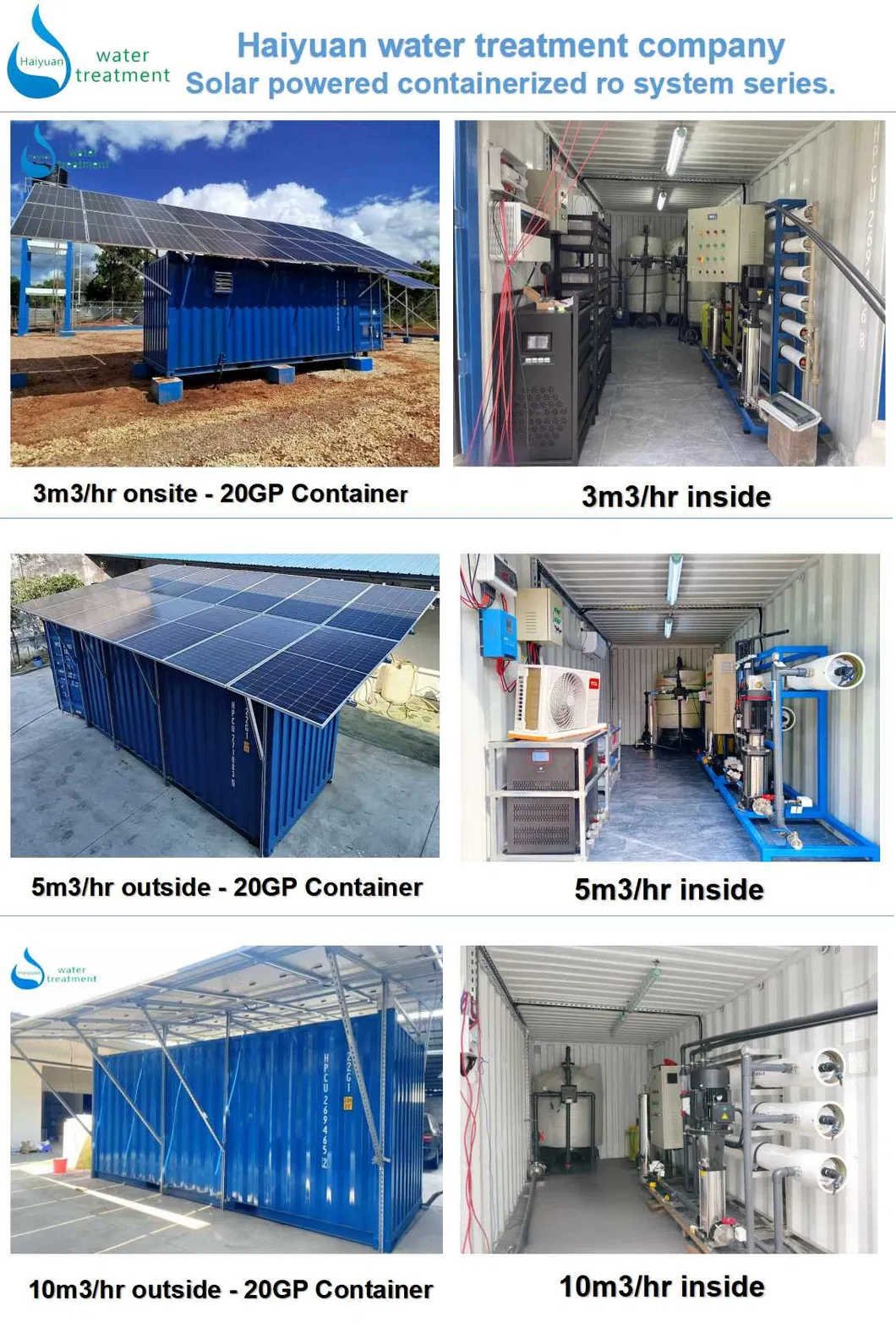

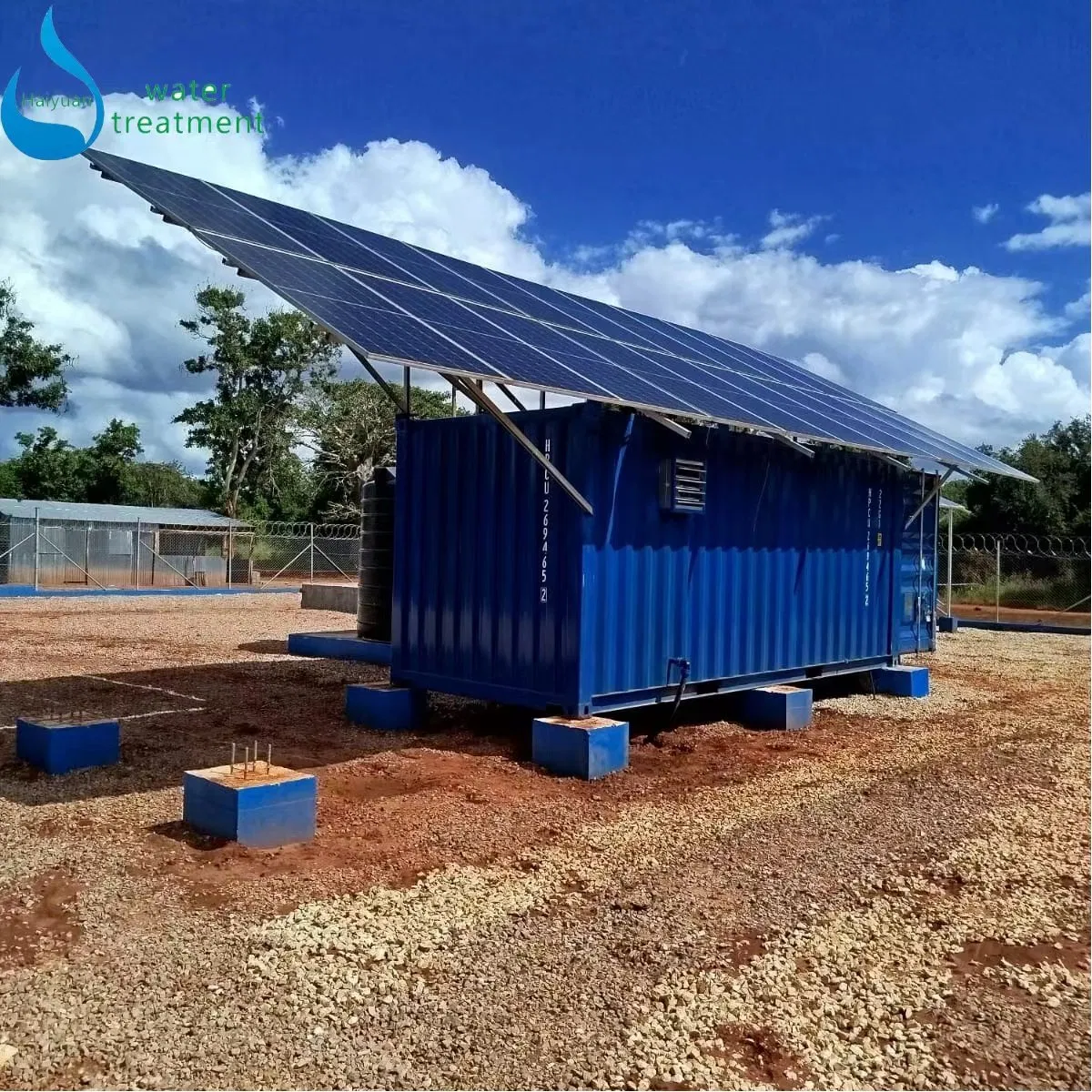

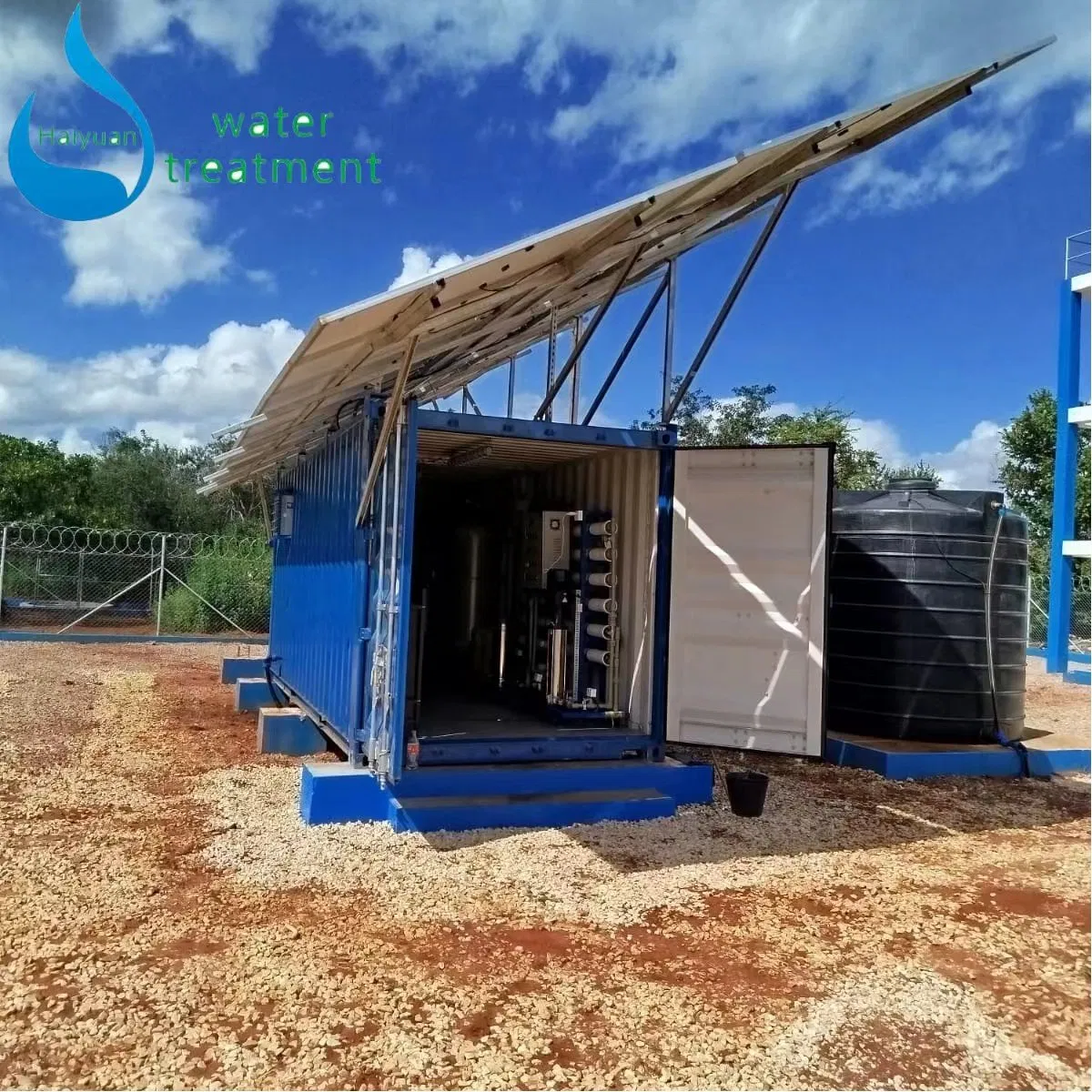

With more than 15 years of experience in water treatment systems, we design, manufacture, and install containerized solar-powered water purification systems. We focus on providing high-quality solutions to help customers get ideal products at reasonable prices.
