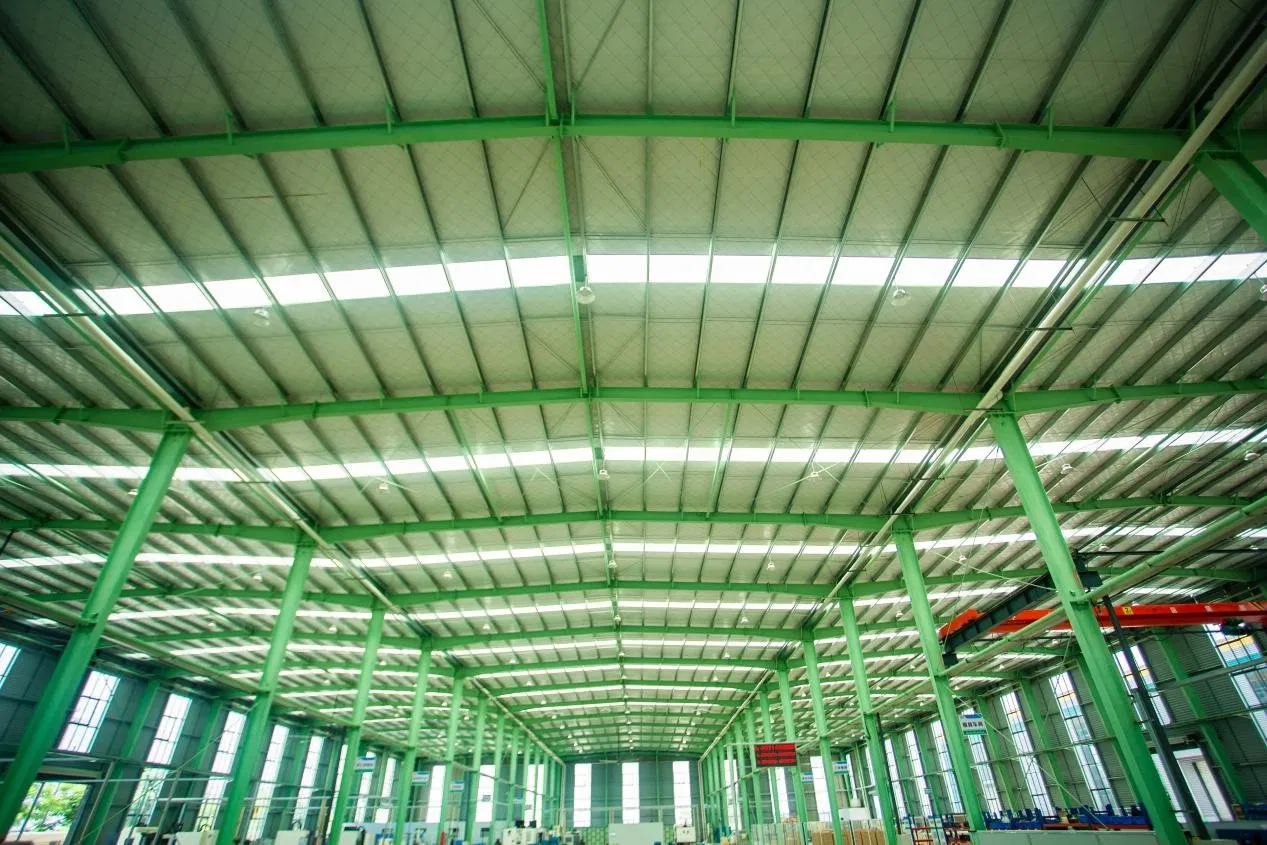

Prefabricated Steel Construction Prefab Villa House Factory Light Weight Steel Structure

Customization: Available
After-sales Service: After-Sales Service
Connection Form: Bolt Connection

Product Description

Basic Information
Feature Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable
Service Life More Than 50 Years
Steel Grade Q235B, Q345b
Purlin C or Z Type Section
Structure Type H-Section Steel
Capacity 1,000,000 Square Meters/Year
Company Profile

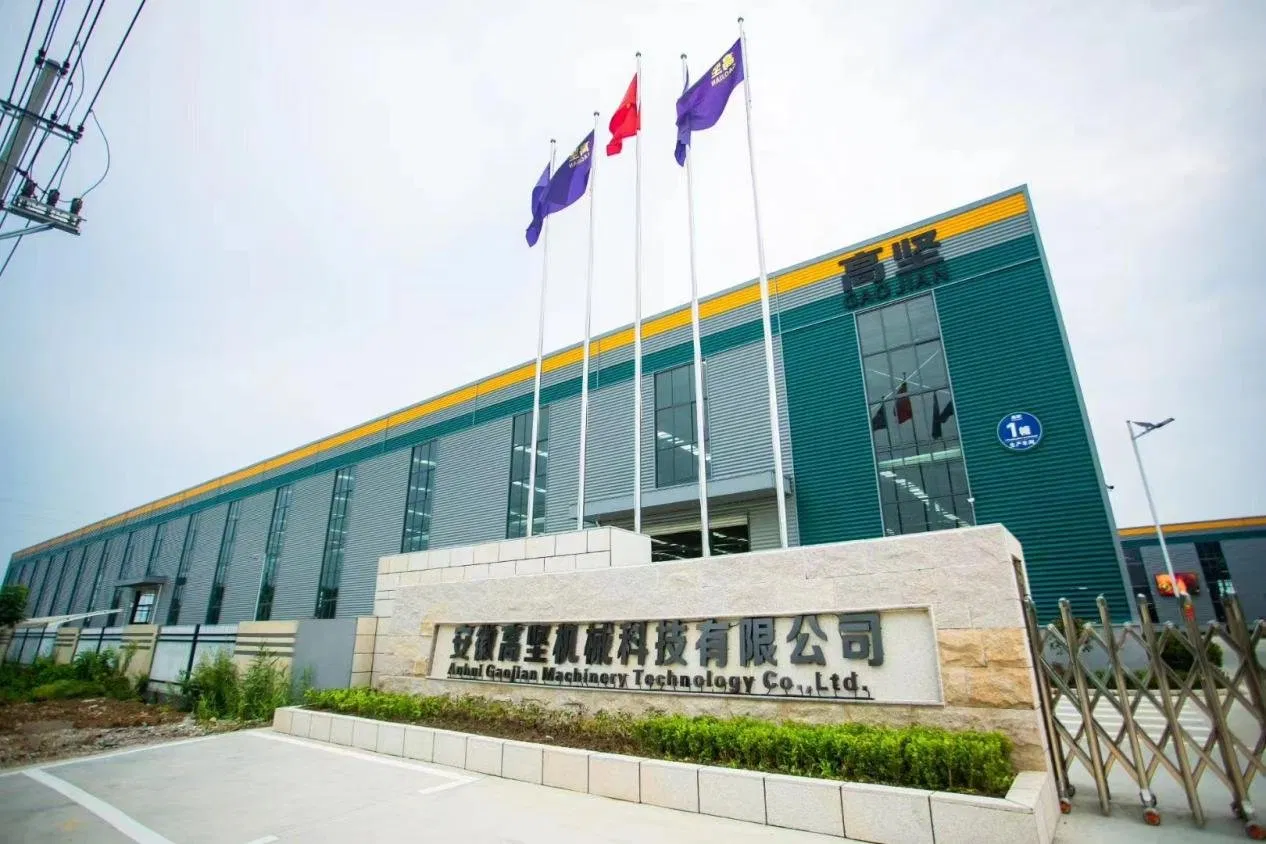

Factory Exterior
Factory Interior

Our company was established in 2020, featuring a professional design team, excellent department managers, and a comprehensive management system. We are a modern assembly and construction enterprise that integrates design, production, and installation. We provide customers with various steel buildings of reliable quality and competitive pricing.

Prefabricated Steel Construction Factory Light Weight Steel Structure

Steel structure buildings are formed by a main framework linking H beams, C purlins, and Z purlins. The roof and walls use a variety of panels with components like windows and doors. Advantages include wide spans, high strength, light weight, low cost, energy saving, and excellent seismic performance.

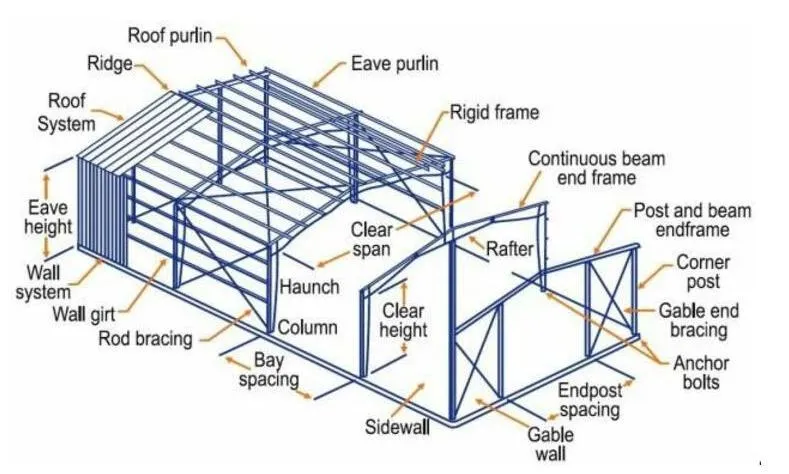

Steel Structure Model
Production Process

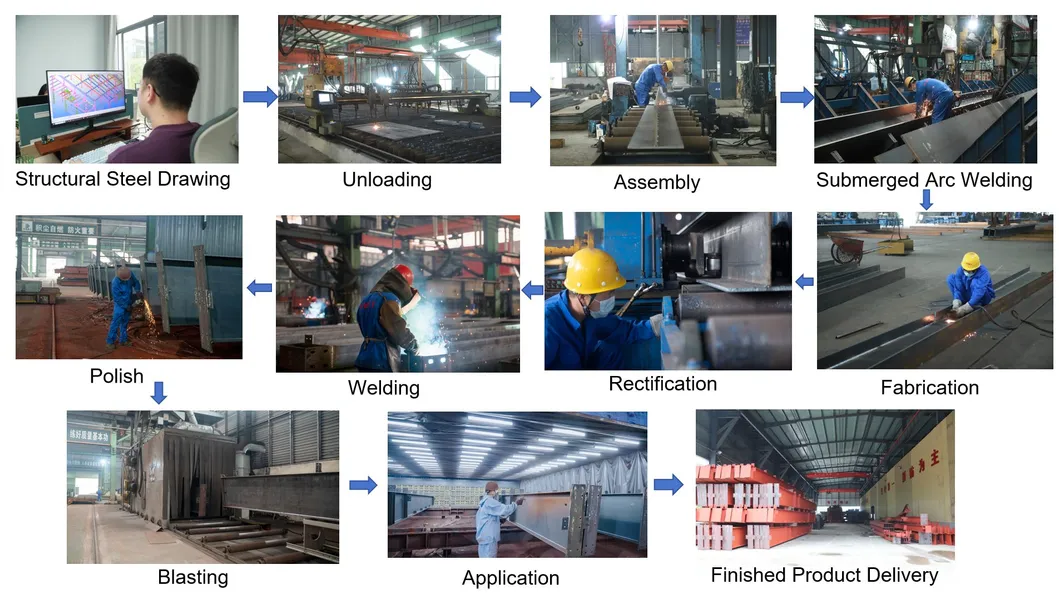

Process 1

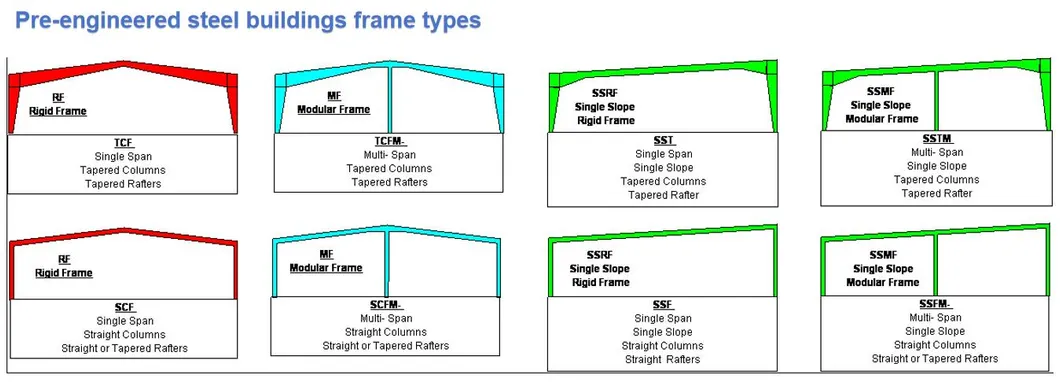

Process 2

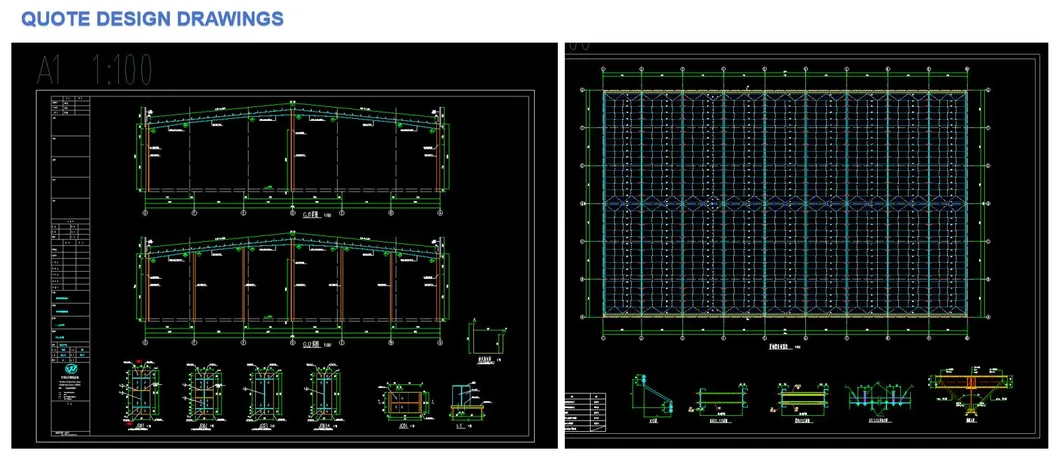

Process 3
Project Cases

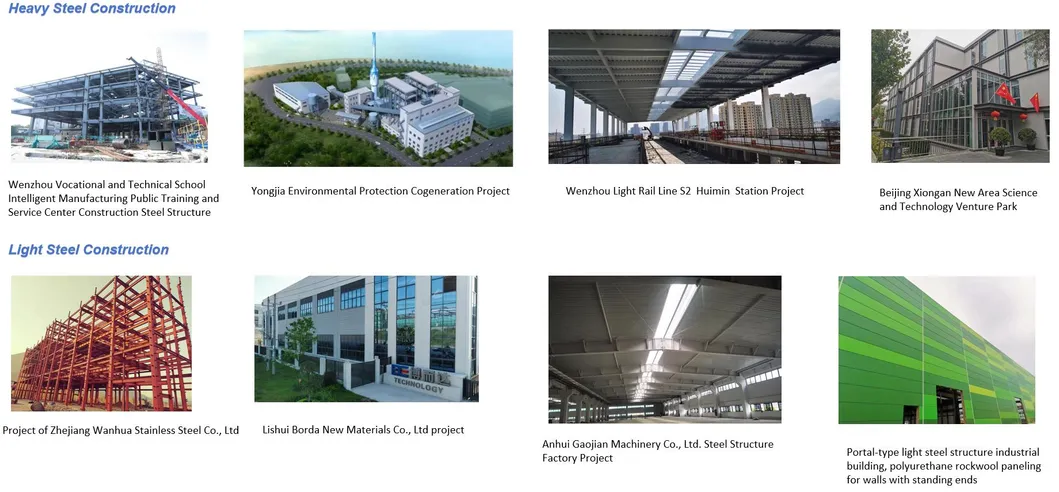

Project Case 1

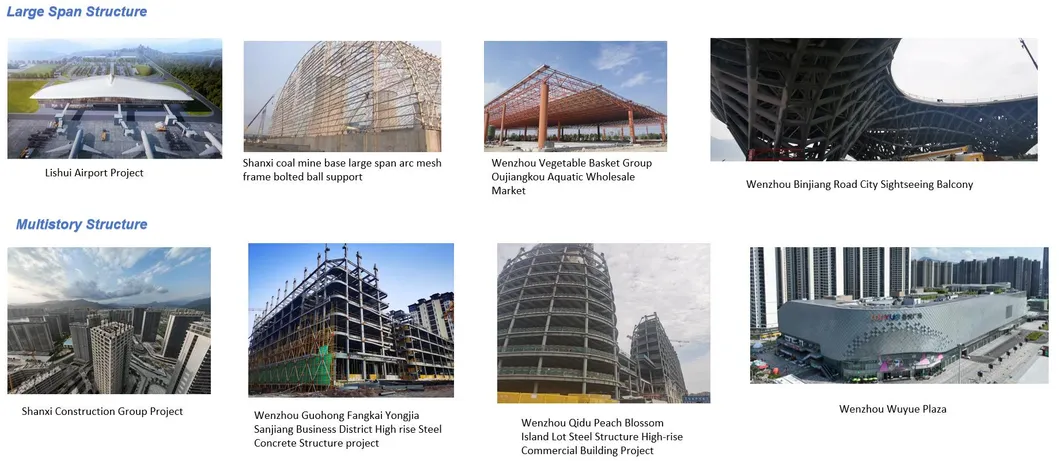

Project Case 2

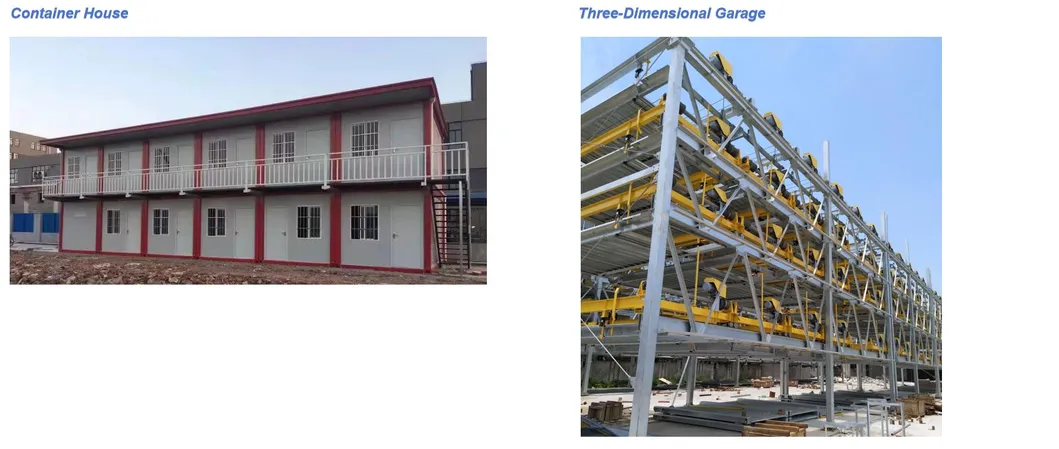

Project Case 3

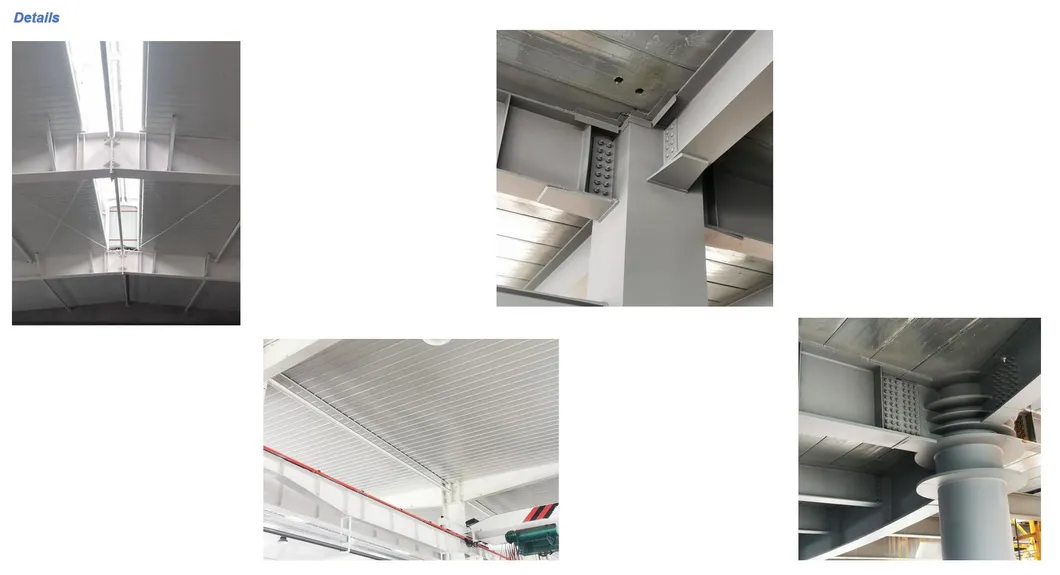

Project Case 4
Product Specification
Component Details & Materials
SizeWidth * Length * Height (Customizable)
Steel FrameQ345 (S355JR) or Q235 (S235JR) steel; Painted or Galvanized H-section
BracingX-type, V-type, or angle/round bar bracing
Wall & Roof PurlinC section or Z section channel (C80~C300; Z100~Z300)
CladdingEPS, Rock Wool, Glass Wool, or PU Sandwich Panels (50mm - 200mm)
Window & DoorPVC/Aluminum Alloy frames; Sliding or Roller shutter doors
Surface ProcessShot blasting Sa2.5; Two layers of Anti-rust Painting or Galvanized
Certifications

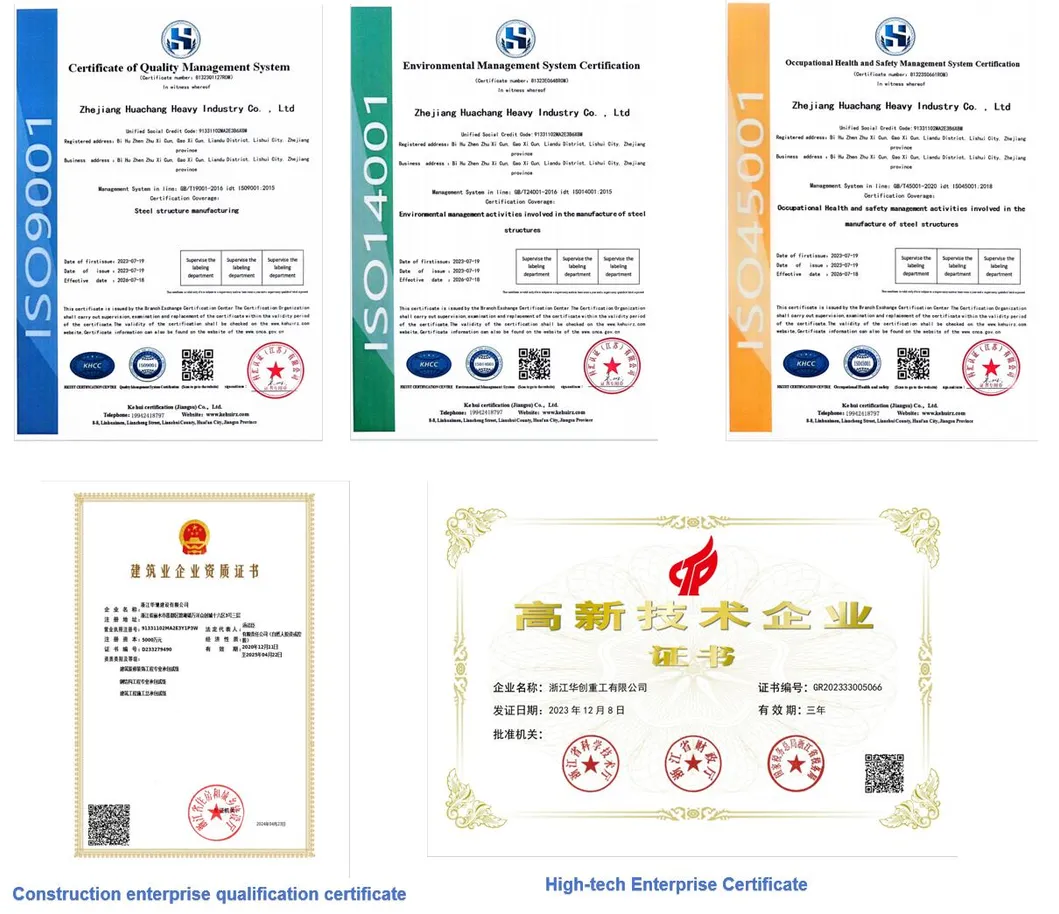

Certification Documents
Required Information for Design
  • 1. Location: Where will the project be built?
  • 2. Dimensions: Length * Width * Height?
  • 3. Local Climate: Max wind speed, snow load, and seismic level?
  • 4. Usage: Purpose of the building?
  • 5. Insulation: Preferred panel type (EPS, Rock Wool, PU)?
  • 6. Crane: Is an overhead crane needed? (Provide lifting capacity and height)
Frequently Asked Questions
Do you supply installation services?
Yes, we provide professional installation services. We can send engineers and construction workers to supervise and instruct the assembly on-site.
What is a pre-engineered steel structure?
It means components are fabricated in a factory and ready for on-site assembly with bolts. This method is faster than conventional building and is not dependent on weather conditions.
How long can the steel frame be used?
The main structure is designed for a service life of at least 50 to 100 years, following standard industry regulations.
Is a steel structure better than concrete?
Steel has an excellent strength-to-weight ratio and handles tensile stresses better than concrete. Steel structures are also faster to construct and easier to transport.
What is the anti-rust treatment used?
We use a 12-head large shot blasting machine (Grade S2.5), followed by epoxy zinc-rich primer, epoxy iron intermediate paint, and epoxy polyester topcoat.
How do we cooperate on a specific project?
First, send us your project details and requirements. We will then provide a design proposal and quotation for your review to finalize the deal.
