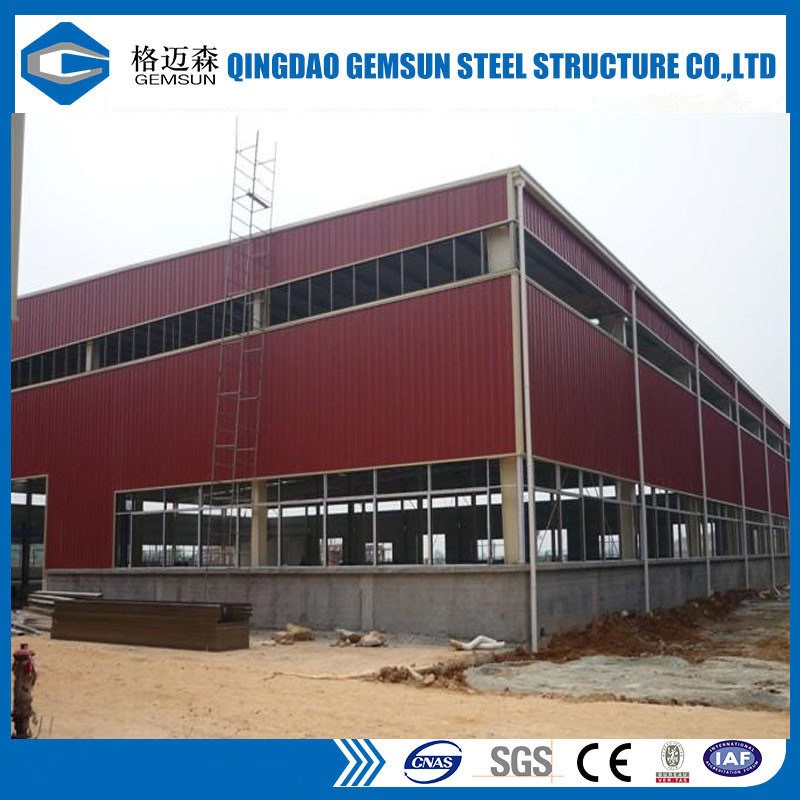

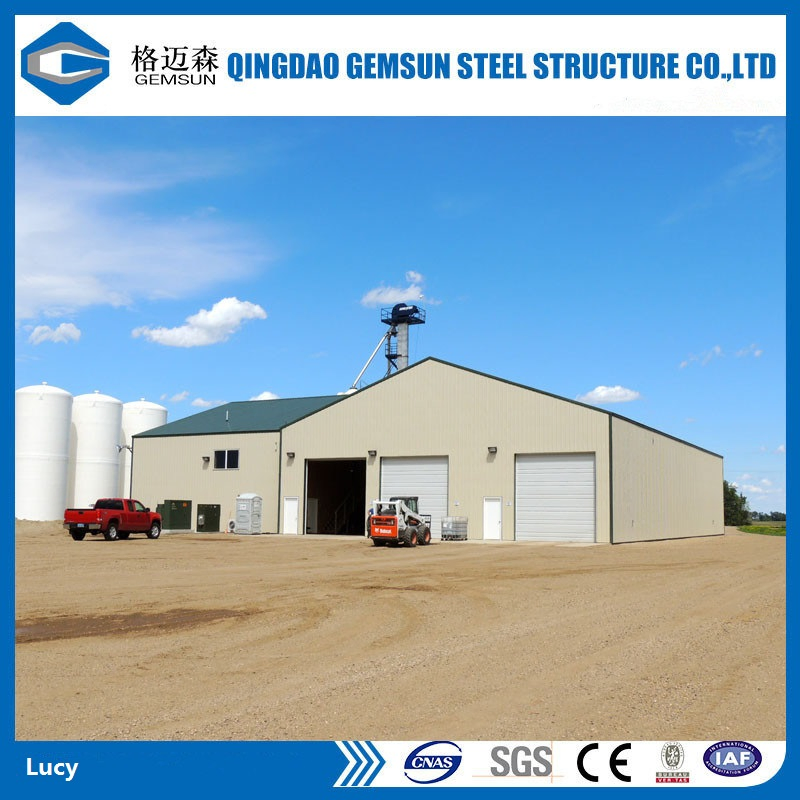

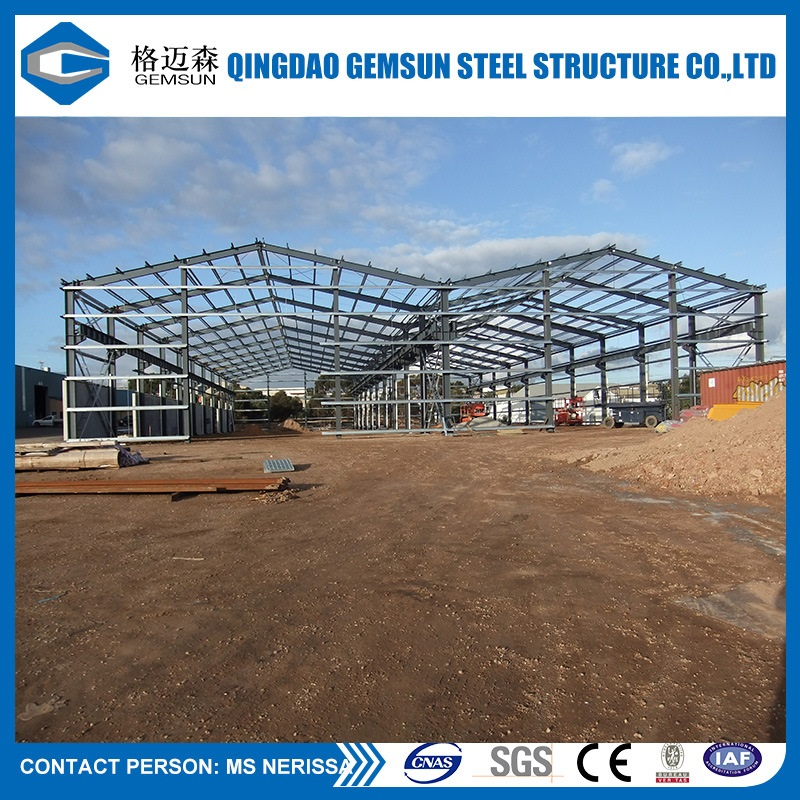

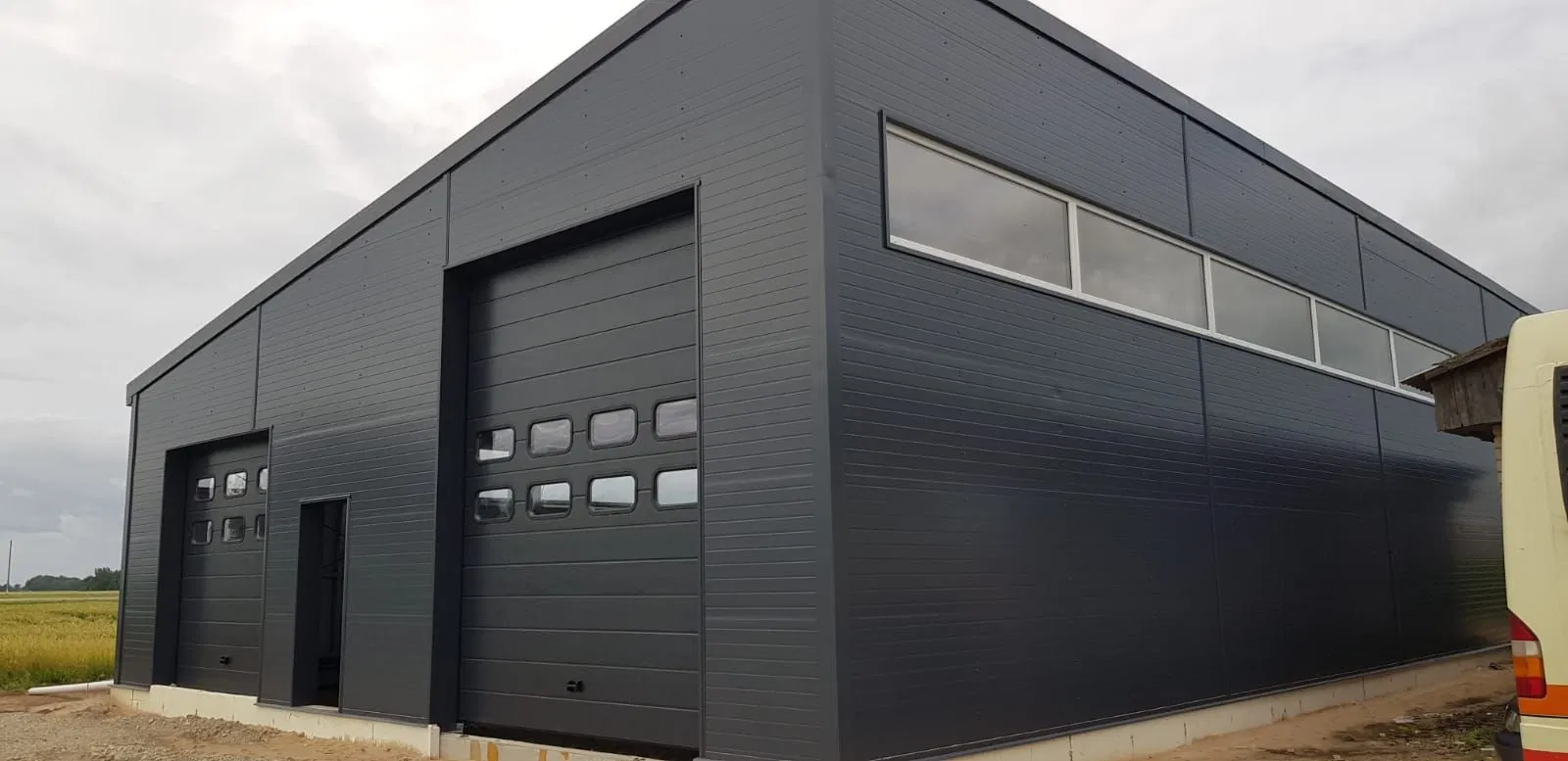

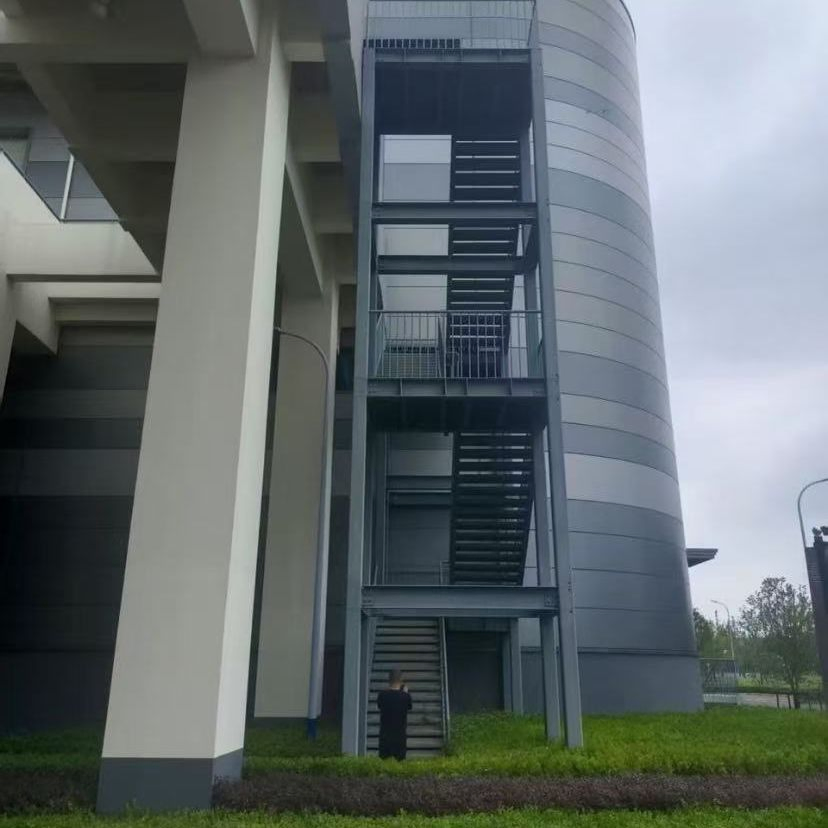

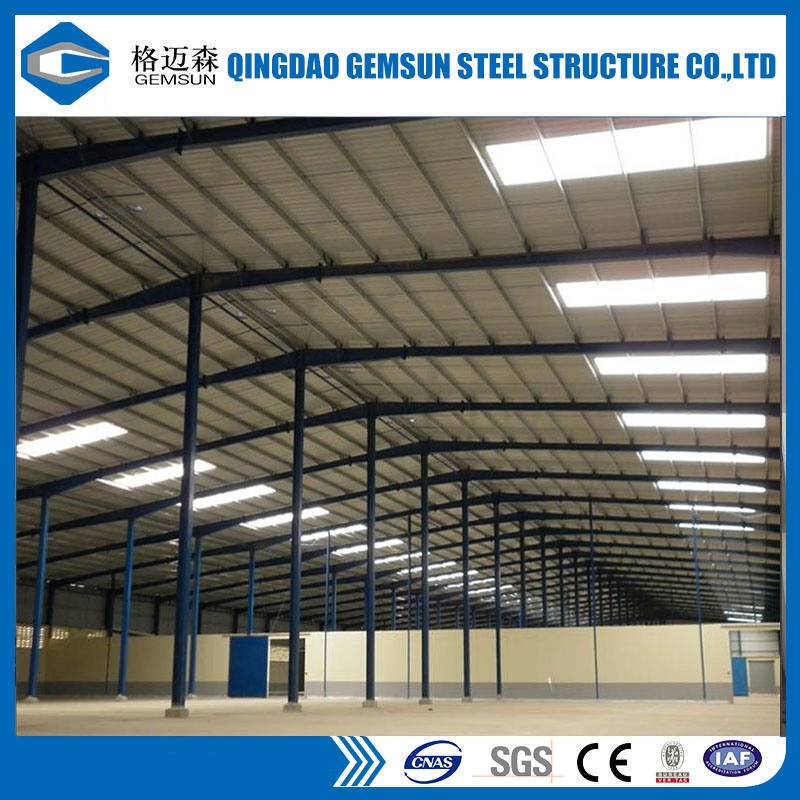

Prefabricated House Integrated House Steel Structure Prefabricated Building

1 / 5

Prefabricated House Integrated House Steel Structure Prefabricated Building

Customization:	Available
Characteristics Of Goods:	Floating Warehouse
Type:	H-Section Steel

Send Inquiry

Product Description

Basic Information

Model NO.

GXR-178

Surface

Painting and Hot DIP Galvanize

Steel Grade

Q235 and Q345b

Standard

GB, ASTM, DIN, JIS, AISI, BS

Connection Form

Bolt Connection

Application

Steel Workshop, Steel Structure Platform

Forming

Welded

Capacity

5000t Per Year

Product Description

Technical Parameters of Standard Prefabricated Steel House:

Wind resistance: Grade 11 (wind speed ≤ 120km/h)
Earthquake resistance: Grade 7
Live load capacity of roofing: 0.6kn/m2
External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
Second Floor Load Capacity: 150 kg/m2
Live load of corridor: 2.0kn/m2
Wall permitted loading: 0.6KN/m2
Ceiling Permitted live loading: 0.5 KN/m2
Wall Coefficient of thermal conductivity: K=0.442W/m2k
Ceiling Coefficient of thermal conductivity: K=0.55W/m2K

Category	Specifications
SIZE(m)	LENGTH * WIDTH * EAVE HEIGHT
TYPE	SINGLE SPAN, DOUBLE SPAN, MULTI-SPAN; ONE/TWO/THREE FLOORS
FOUNDATION	STEEL FOUNDATION WITH ANCHOR BOLTS
COLUMN & BEAM	MATERIAL: Q235 & Q345 & Q420
BRACING	X or V TYPE BRACING (ANGLE STEEL, ROUND BAR)
PURLIN	C120~C320mm; Z100~Z300mm
WALL & ROOF	SINGLE CORRUGATED STEEL SHEET or SANDWICH PANEL (EPS, PU, ROCK WOOL)
WINDOW & DOOR	PVC/ALUMINIUM ALLOY WINDOW; ELECTRIC ROLL-UP or SLIDING DOORS

Packing & Delivery

Inspection: 50% inline inspection and 100% full final inspection for zero-error output.

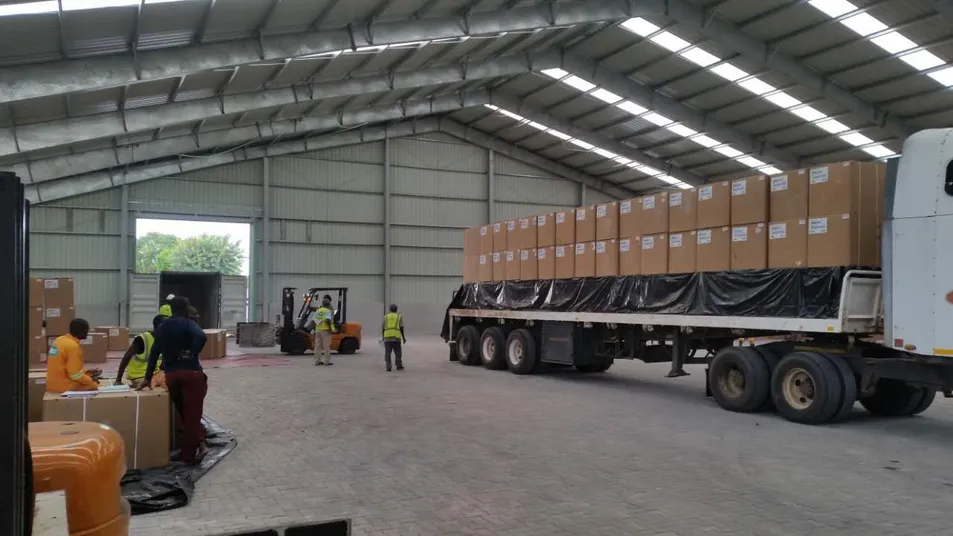

Packing: Full protection packing customized to product size and client requirements.
Shipping: Optimized for container sizes and customer logistics needs.

Material Specifications

Design Requirements Information Needed:

Measurements: Length, width, eave height
Local climate: Wind speed, snow load, earthquake magnitude
Materials: Preferred roof and wall type (corrugated sheet or sandwich panel)
Crane Requirements: Max lifting weight and height if applicable

Comprehensive Material List
Steel Column	Fabricated by Q235/Q345 Steel, Square Tube (8080 to 150150), Alkyd painting
Roof Structure	Triangular structure, C80-C140 Section steel, finish painting
Insulation	Density: Rockwool (120Kg/m3), Polystyrene (12-20Kg/m3), PU (40Kg/m3)
Ceiling & Floor	6mm Gypsum board ceiling, 18mm plywood with 1.5mm PVC floor leather
Electrical System	BV cable (Lighting 2.5mm², AC 4.0mm²), Double tube fluorescent lamp 220V

Frequently Asked Questions

Are you a manufacturing factory or a trading company?

We are a manufacturing factory. We own one of the largest Hot Dip Galvanizing baths in the region, ensuring full control over the quality and professional flow of our production.

How competitive is your pricing?

Our objective is to provide the best price for the same level of quality, or the highest quality for the same price point. We work efficiently to reduce costs without compromising structural integrity.

Do you provide installation services?

Yes. We provide detailed installation drawings and information for free. We can also send engineers or a technical team to act as installation directors if required.

What extreme weather conditions can your buildings withstand?

Our standard prefabricated houses are designed for Grade 11 wind resistance (up to 120km/h) and Grade 7 earthquake resistance, making them suitable for various climates.

Can the design be customized according to my specific needs?

Absolutely. We customize buildings based on your required measurements (length, width, height), local climate conditions, and specific material preferences for walls, roofs, and windows.

Do you accept third-party inspections during production?

Yes, we welcome inspectors at any time during the production process or for the final container loading to ensure total transparency and quality assurance.
