Portable Saltwater Desalination System for Drinking

1 / 5

Portable Saltwater Desalination System for Drinking

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HYRO-1000L

Capacity

10m3 to 50m3/Hr

Incoming Water

Salt Borehole Seawater

Untreated Water

for Drinking or Irrigation

Flow Rate

Can Customized

Trademark

JISHUI

Origin

Guangdong, China

HS Code

842121

Portable Saltwater Desalination System

Discover our innovative small scale water desalination system, perfect for home use. This compact and eco-friendly device efficiently converts saltwater to freshwater, providing a convenient and reliable solution for your drinking water needs.

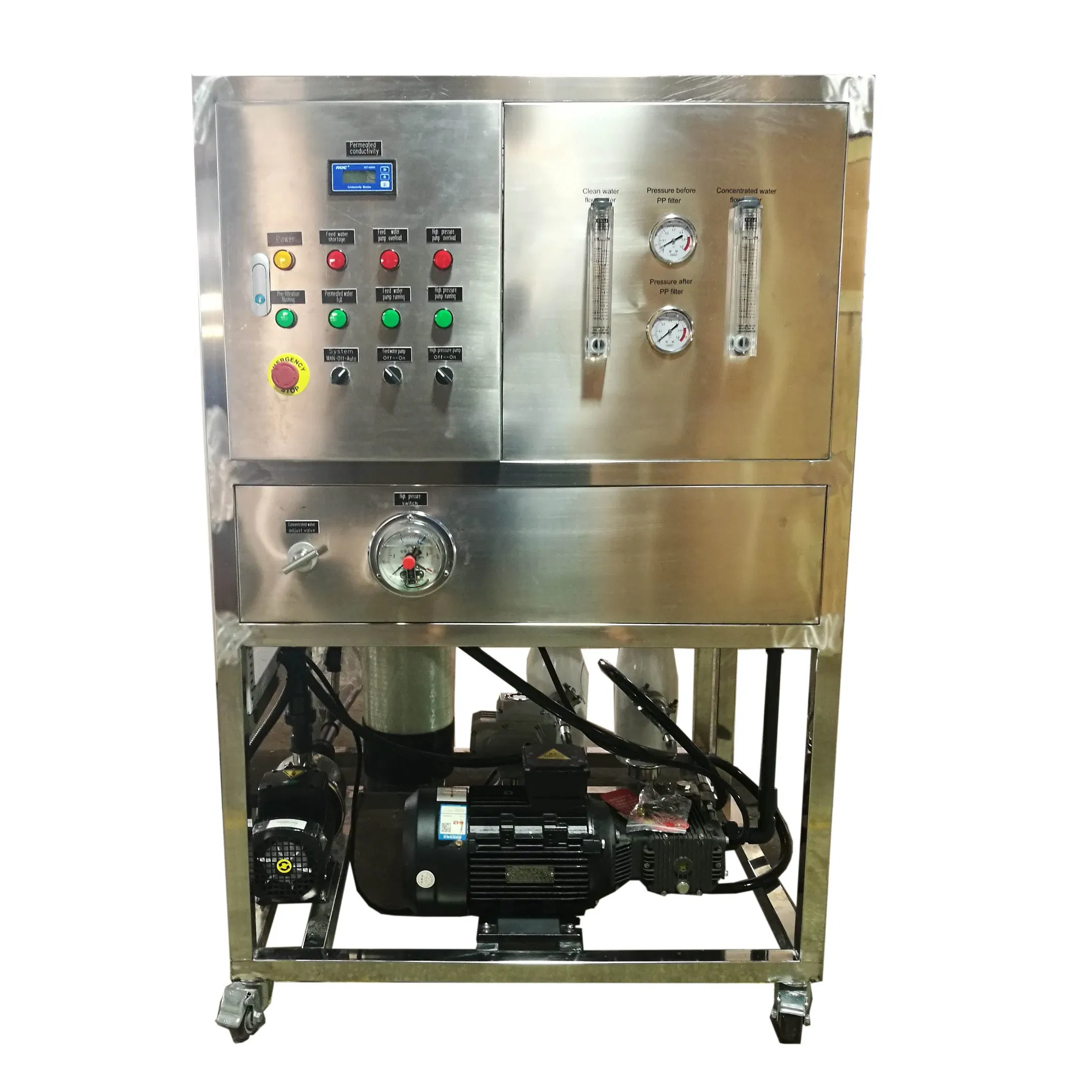

HY Series Portable Seawater Desalination Machine

The HY Series Portable Seawater Desalination Machine is a modern and highly integrated solution for converting seawater into fresh water.

Key Features

Compact Design: Dimensions of 64cm L * 50cm W * 50cm H, weighing only 60-80 KG, making it easy to move and assemble.
Easy Operation: Equipped with matching accessories, it can be connected directly to water and power sources.
Versatile Power Supply: Compatible with household AC power, gasoline/diesel generators, and solar or wind energy systems.

Benefits

Reliable Fresh Water Supply in remote locations or during emergencies.
Portability suitable for marine vessels, camping, and disaster relief.
Efficient setup requiring minimal technical expertise.
Environmentally friendly by reducing reliance on traditional power via solar/wind compatibility.

Technical Specifications (HY-SWRO-25L/hr)

Flow rate	500LPD	Recovery rate	4%
Voltage	220V, 50Hz 1 phase	Power	1.9KW
Feed water TDS	< 40000ppm	Output water TDS	< 600ppm
Working pressure	< 1000psi	Working temperature	10-45 ºC
RO membrane	2521 1 piece	Net weight	About 60Kg

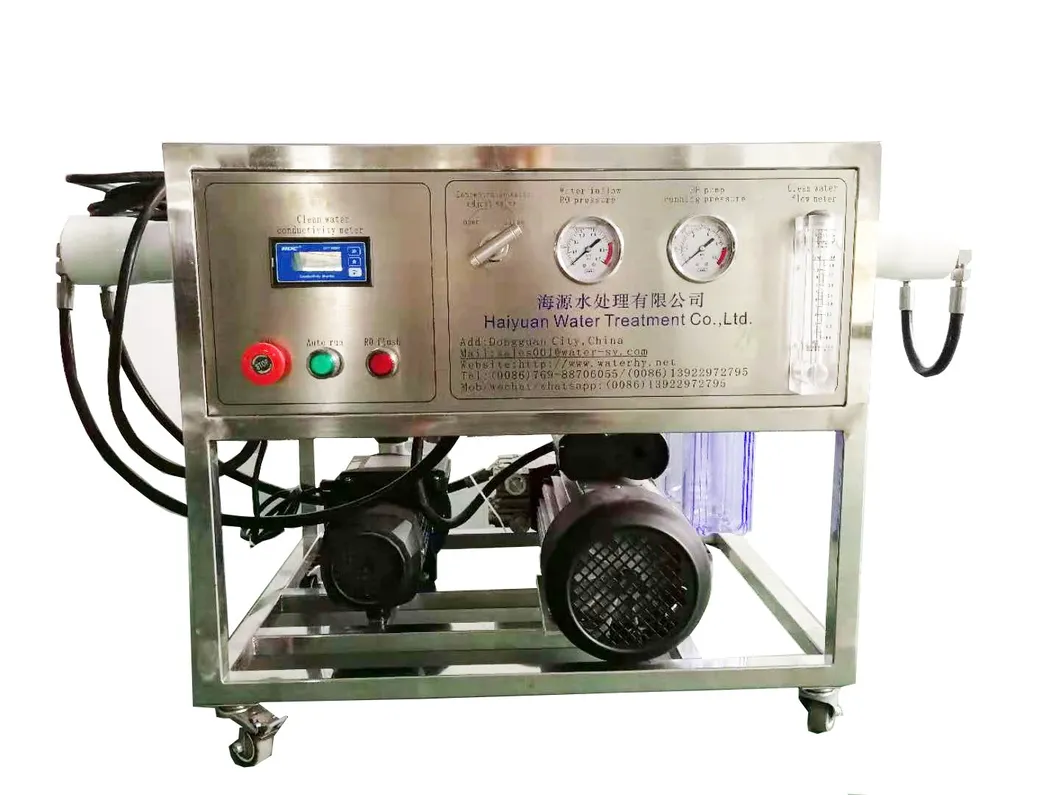

System Advantages & Characteristics

Our small-scale, solar-powered solution is perfect for home use, seaside hotels, or mobile applications. It provides a space-saving way to desalinate seawater with reliable performance and eco-friendly technology.

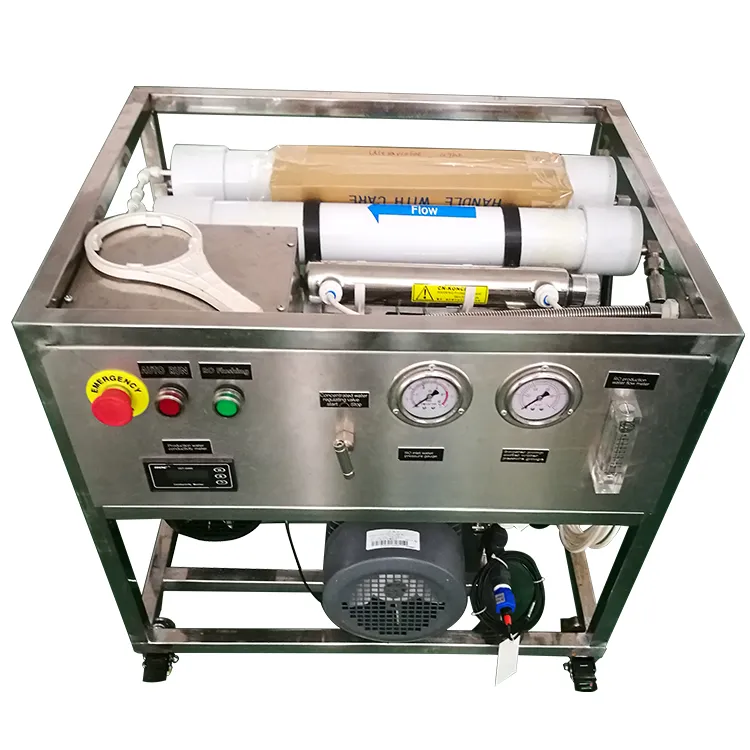

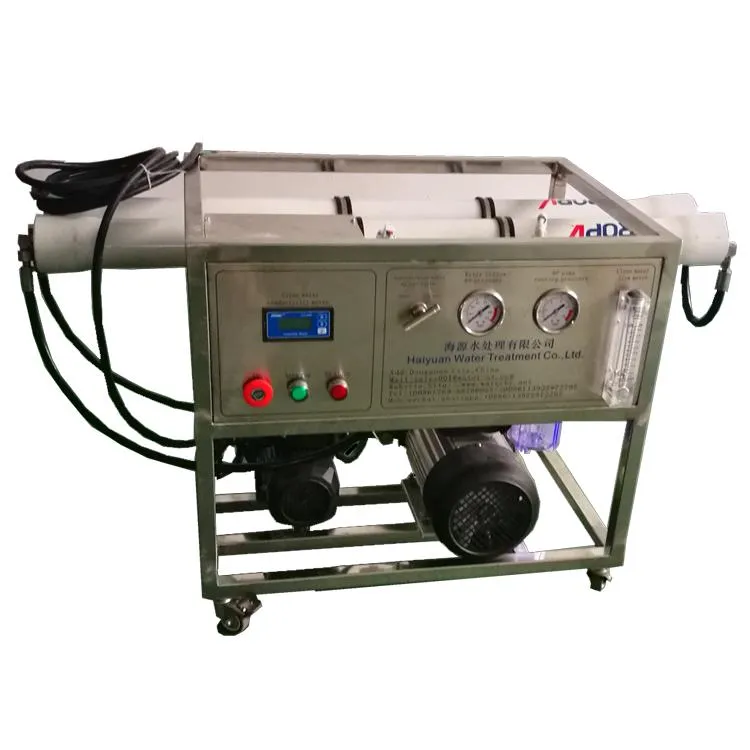

Seawater Desalination Equipment Advantages

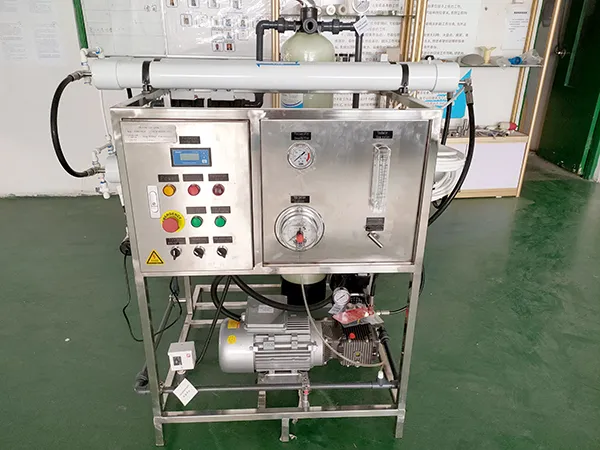

Emergency Stop Button: Immediately cuts off power for safety.
Auto Running & Cleaning: Simplified control with one-button operation.
On-line Conductivity Meter: Real-time monitoring of water quality.
Stainless Steel Frame: Durable, fully polished SS316 frame for corrosion resistance.
UV Sterilizer: US imported brand operating at 254NM for secondary pollution prevention.
DOW RO Membrane: US imported membrane with >98% salt removal rate.

Professional Filtration Process

The system utilizes a multi-step filtration process to ensure the highest water quality:

Step 1: 5-micron PP pre-filter for sediment, algae, and suspended solids.
Step 2: 1-micron pleated pre-filter for tiny suspended particles.
Step 3: High-quality coconut activated carbon filter for odor and taste improvement.
Step 4: RO Membrane filtration at 0.0001 micron precision.

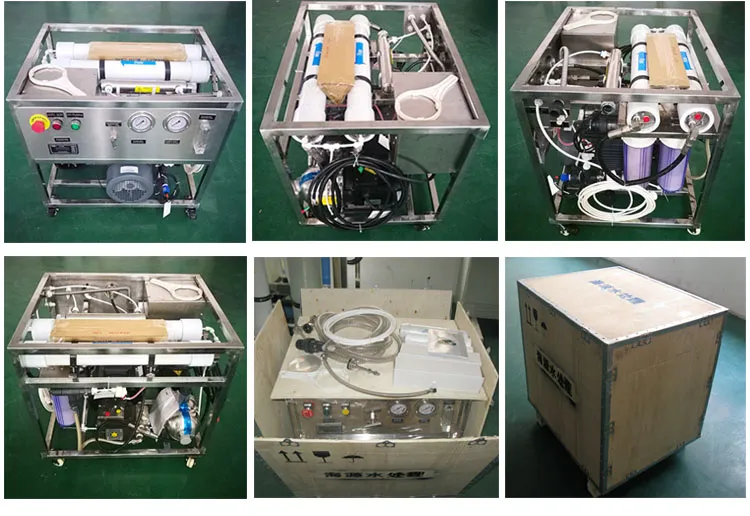

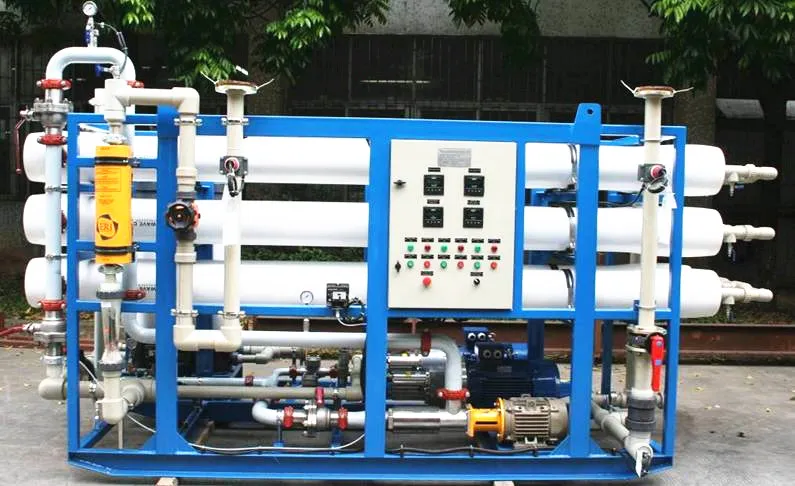

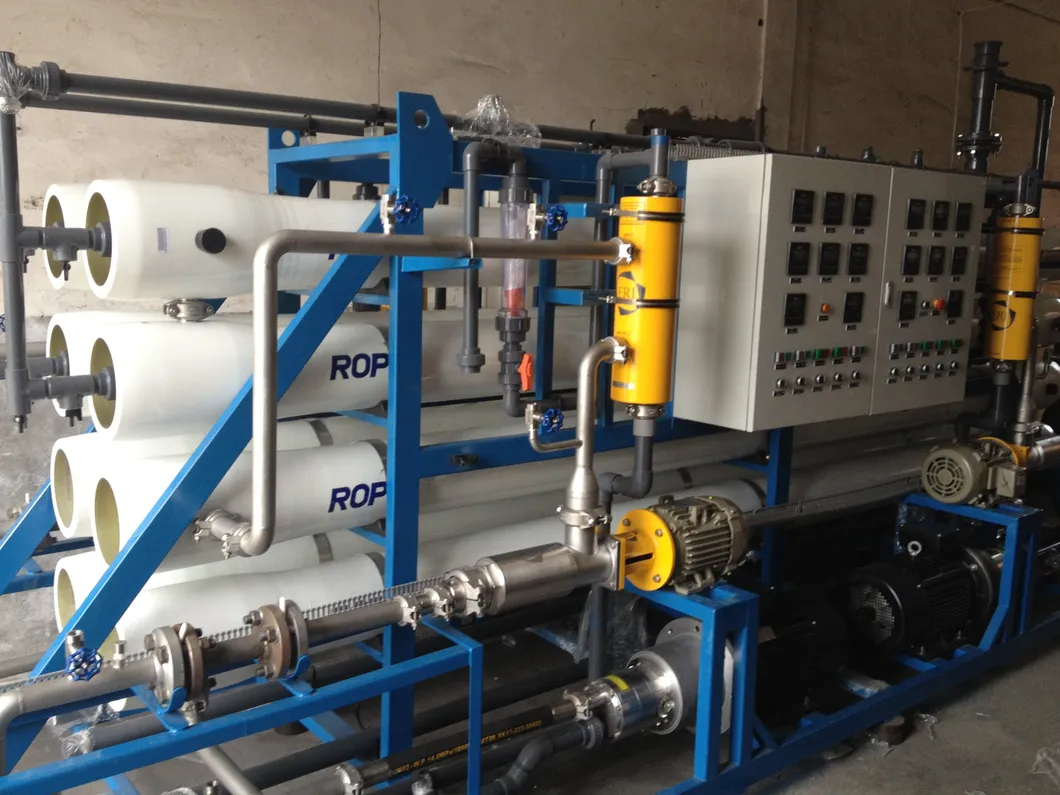

Packaging & Shipping

Our systems are packaged in seaworthy plywood cases to ensure protection during international transit.

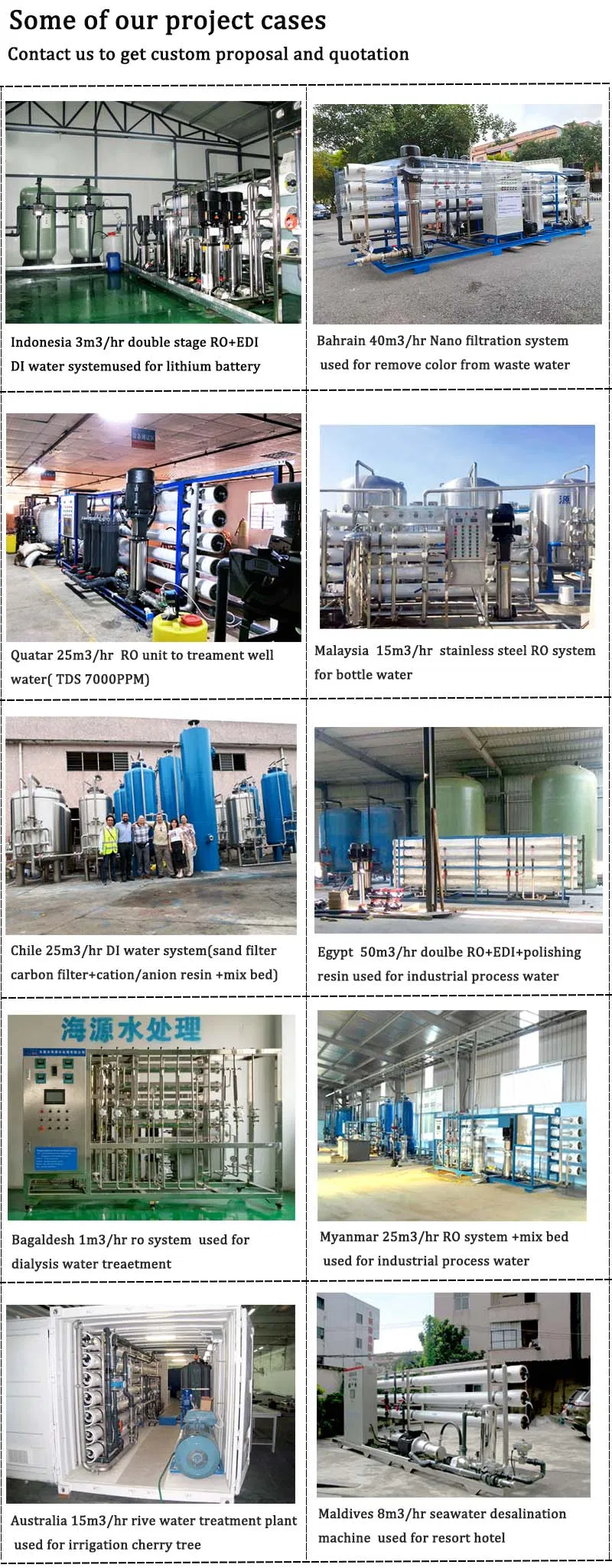

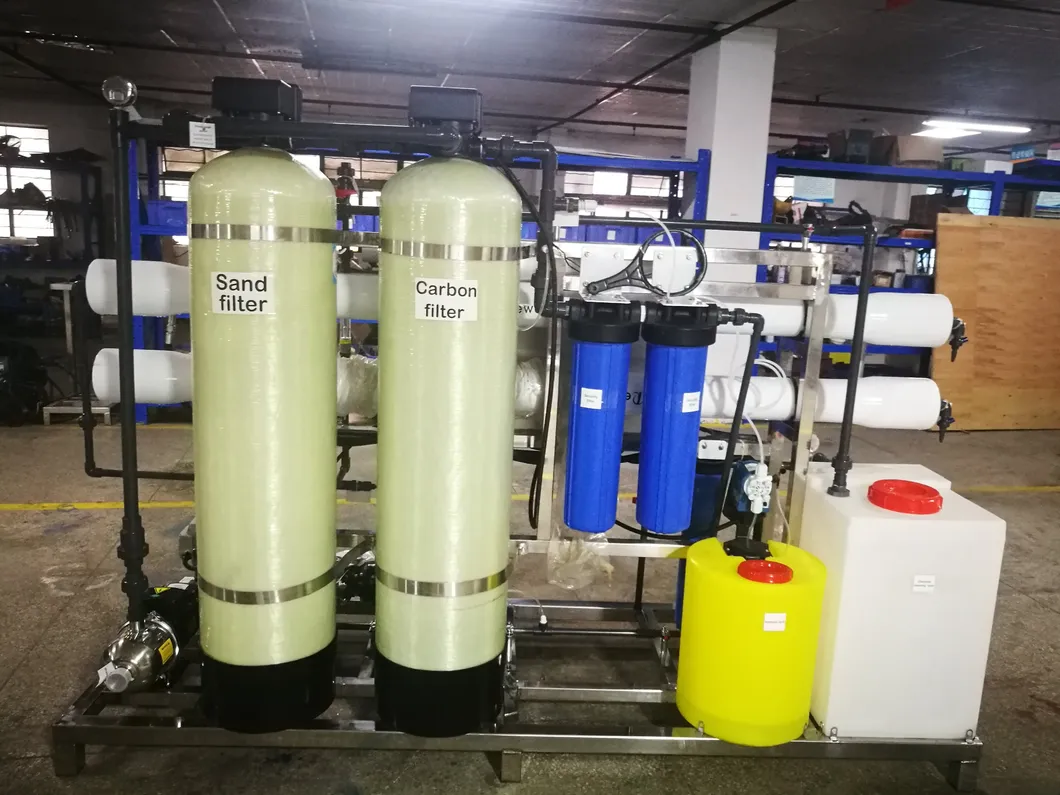

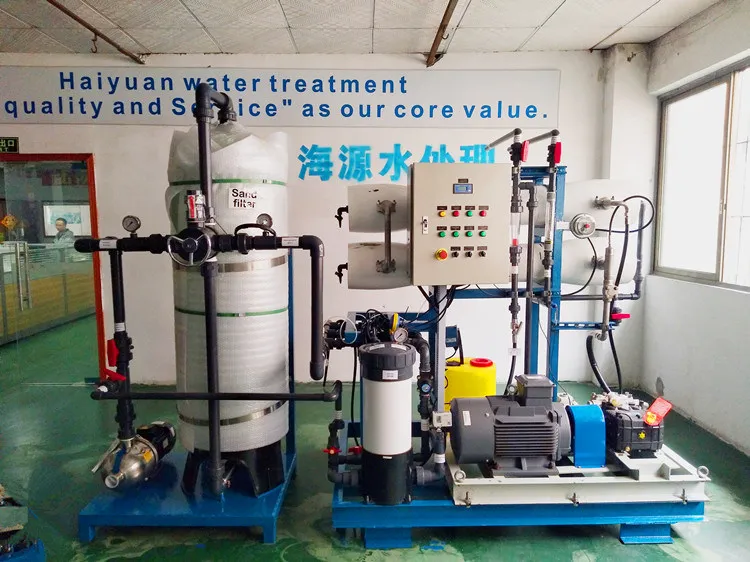

Exhibition & Case Studies

Our Advantages

Wide Range of Options: Seawater RO systems from 500 to 10,000 liters per day.
Energy Flexibility: Can be powered by solar, gasoline, or diesel generators.

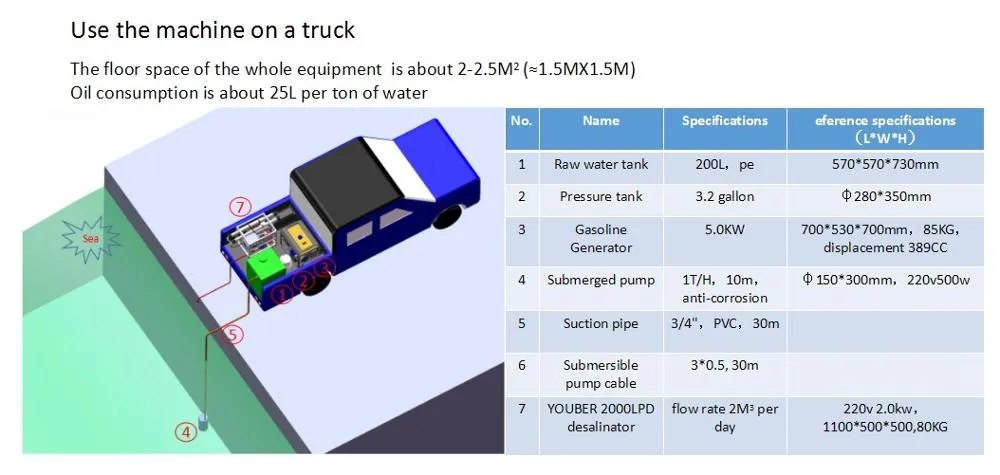

Customizable Solutions: Available in truck-trailer mounted configurations for mobility.
High Components Quality: Utilizing German and US brand pumps and membranes for stability.

Frequently Asked Questions

How much fresh water can the HY-SWRO-25L produce daily?

The system is designed to produce approximately 500 liters of fresh drinking water per day (500LPD), making it ideal for residential or small-scale use.

Is the water produced safe for direct drinking?

Yes. With the US-imported RO membrane (98% salt removal) and UV sterilization, the output water meets international drinking water standards.

Can this desalination machine run on solar power?

Absolutely. The system is designed to be versatile and can be connected to solar energy systems, wind energy, or portable generators.

What kind of maintenance does the system require?

The system features a one-button auto-cleaning function. Regular maintenance involves replacing the PP pre-filters and periodically checking the RO membrane status via the built-in conductivity meter.

Is the equipment resistant to corrosion from seawater?

Yes. All high-pressure parts and the frame are made from high-grade SS316 or SS316L stainless steel, which is specifically designed to resist salt corrosion.

How portable is the HY series machine?

The machine is very compact (64x50x50cm) and weighs between 60-80kg. It is equipped with universal wheels, making it easy to move for camping, boats, or emergency relief.
