Fast Construction Portable Modular Accommodation Units

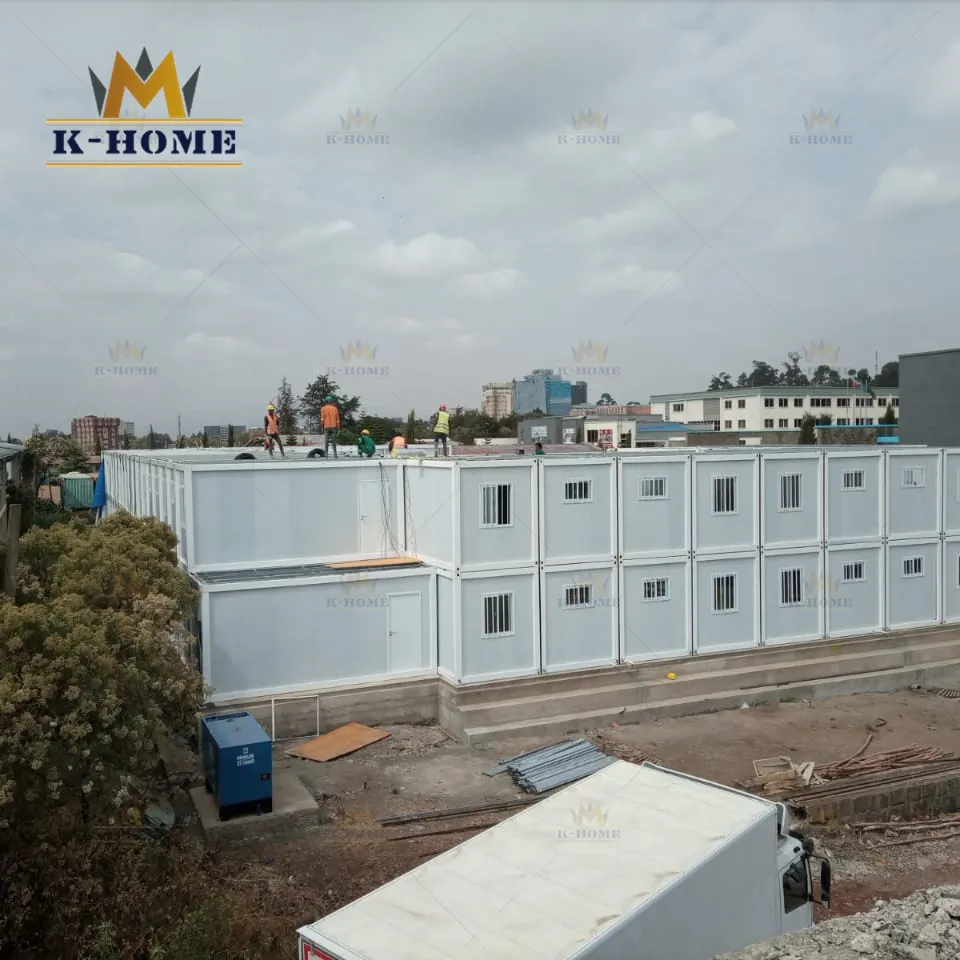

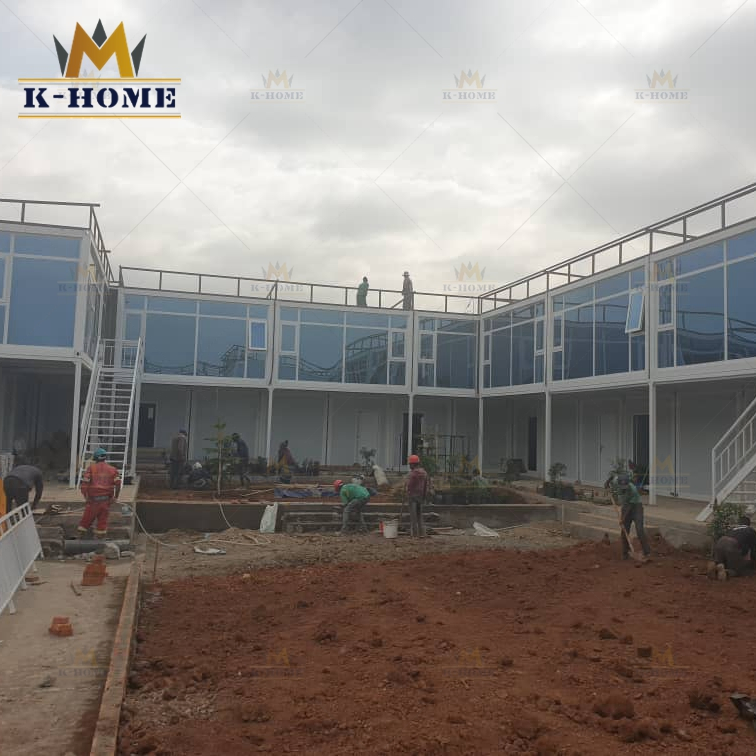

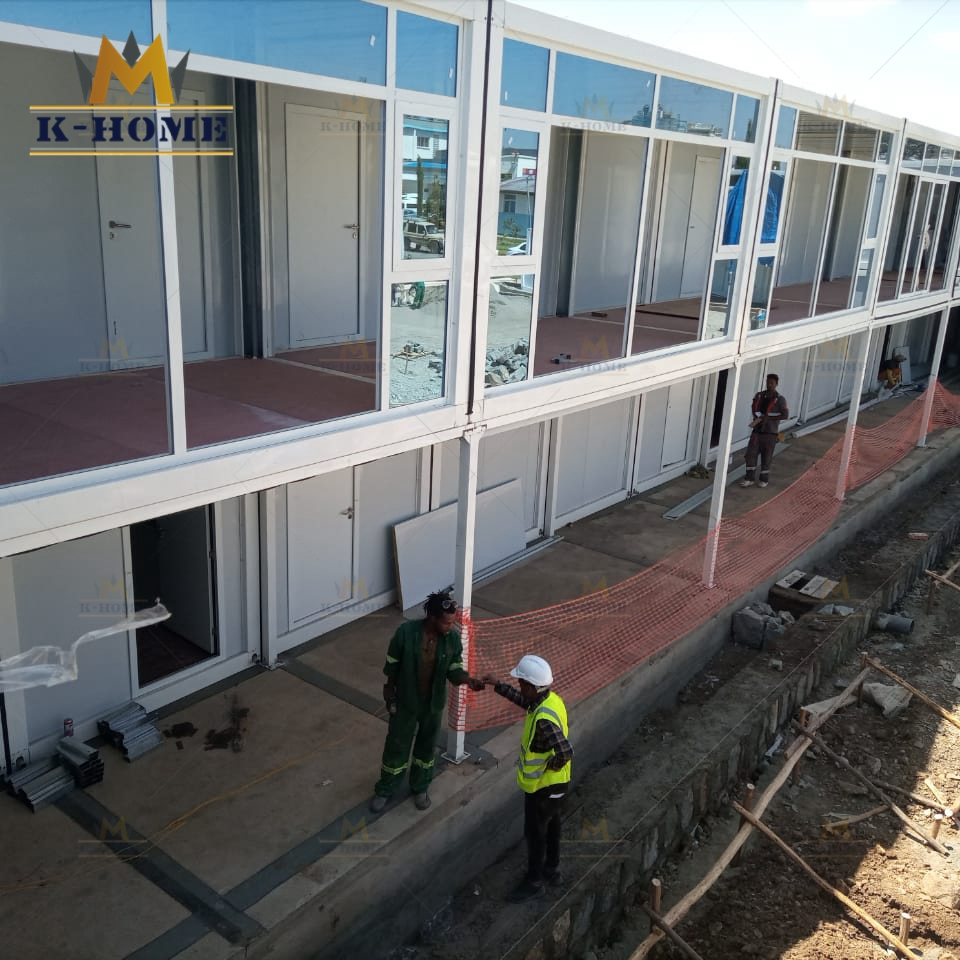

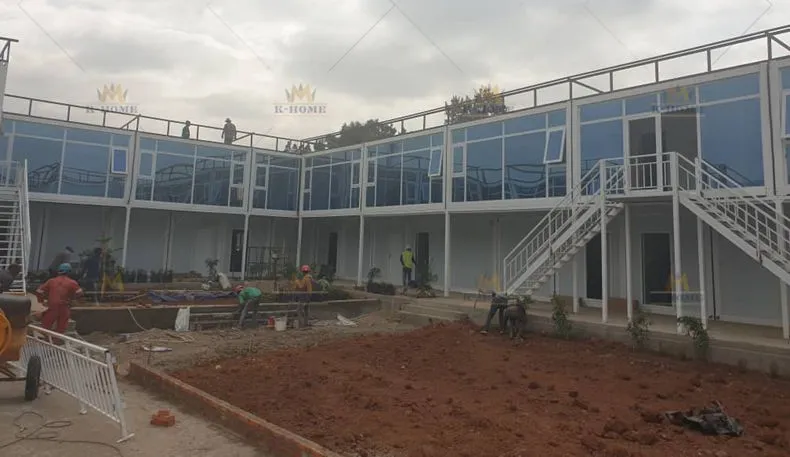

The student dormitory for field training covers an area of 1098 m², featuring a total of 112 container house units. Some units are customized in size, and the second floor is enhanced with full glass walls for a modern aesthetic and natural lighting.

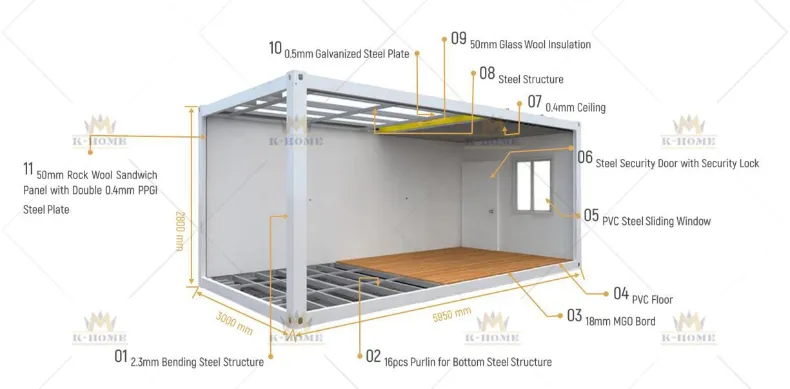

| Standard Size: 3000*5950*2800mm | ||
| Part | Component | Detailed Description |
| Part 1 | Roof System | 0.5mm color coated steel tile + 50mm glass wool insulation + 0.4mm steel ceiling |
| Part 2 | Steel Frame | 2.3mm galvanized steel structure; 4mm thickness corner parts; machine spray treated |
| Part 3 | Floor System | Galvanized square tubes + 18mm MGO board + 1.6mm PVC floor leather |
| Part 4 | Wall Panel | 50mm Rock wool sandwich panel (0.38mm double-sided steel) |
| Part 5 | Drainage | 50mm diameter drain pipes + 90x50mm water channels |
| Part 6 | Doors & Windows | Steel entrance door (930x2000mm); Plastic steel sliding window with double glass |
| Part 7 | Electricity | Includes lamps, sockets, switches, wires, and air circuit breakers |

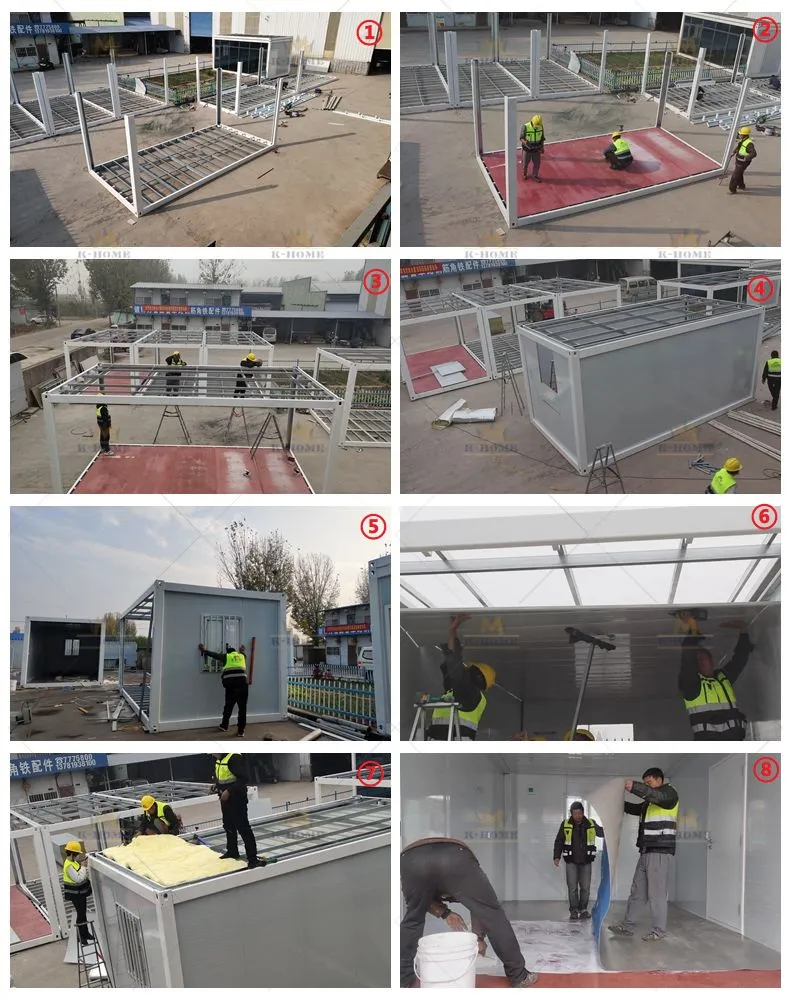

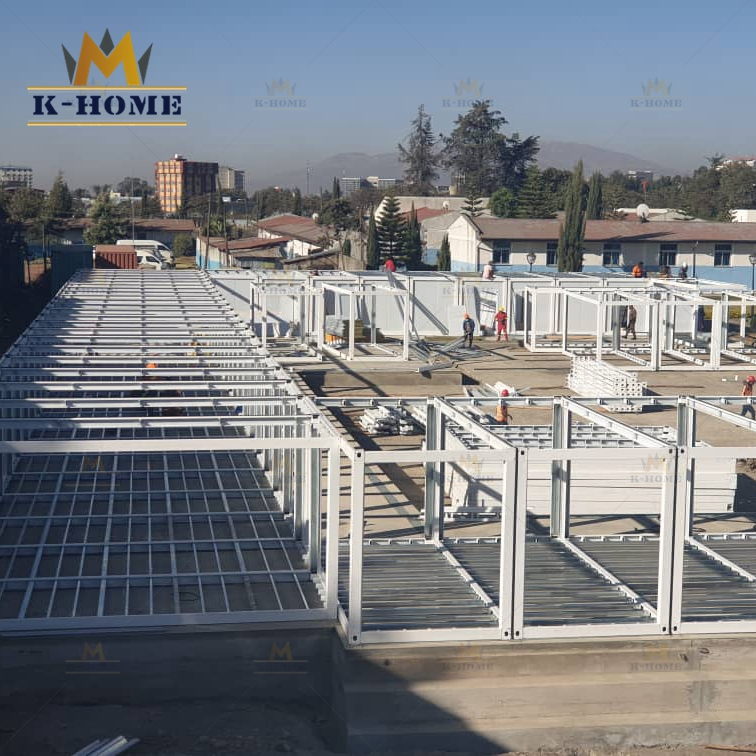

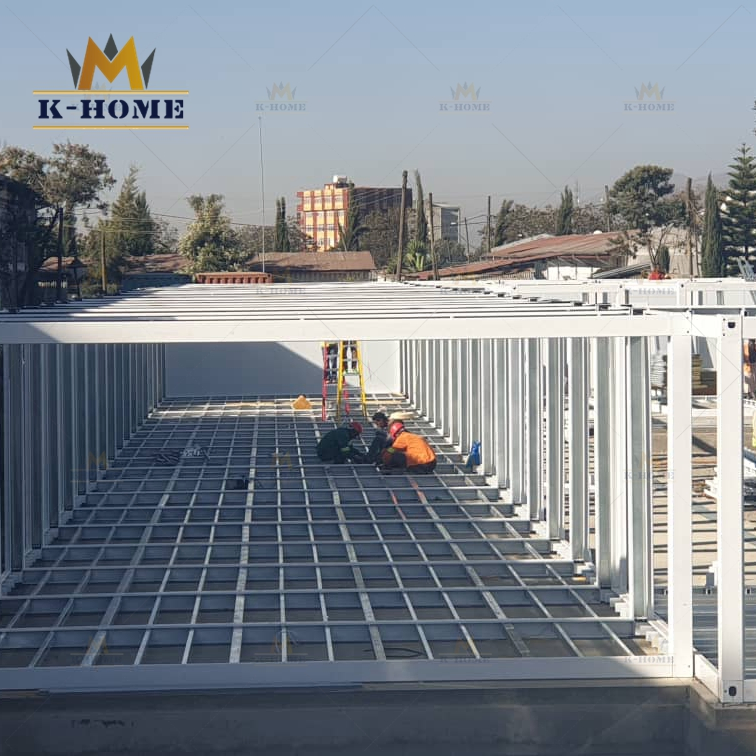

Our modular units are designed for rapid deployment. The process follows a structured assembly of the base, columns, roof, and panels.
