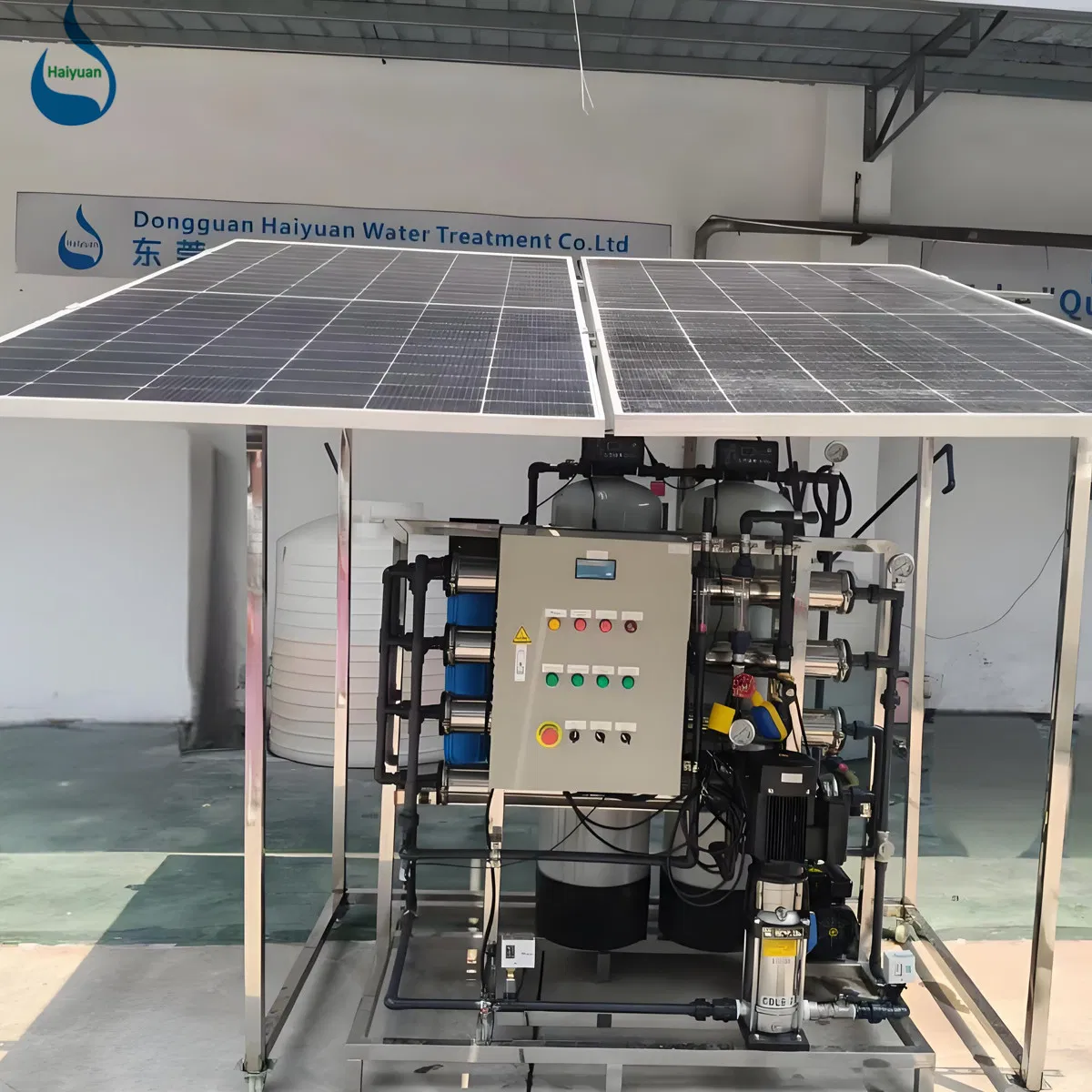

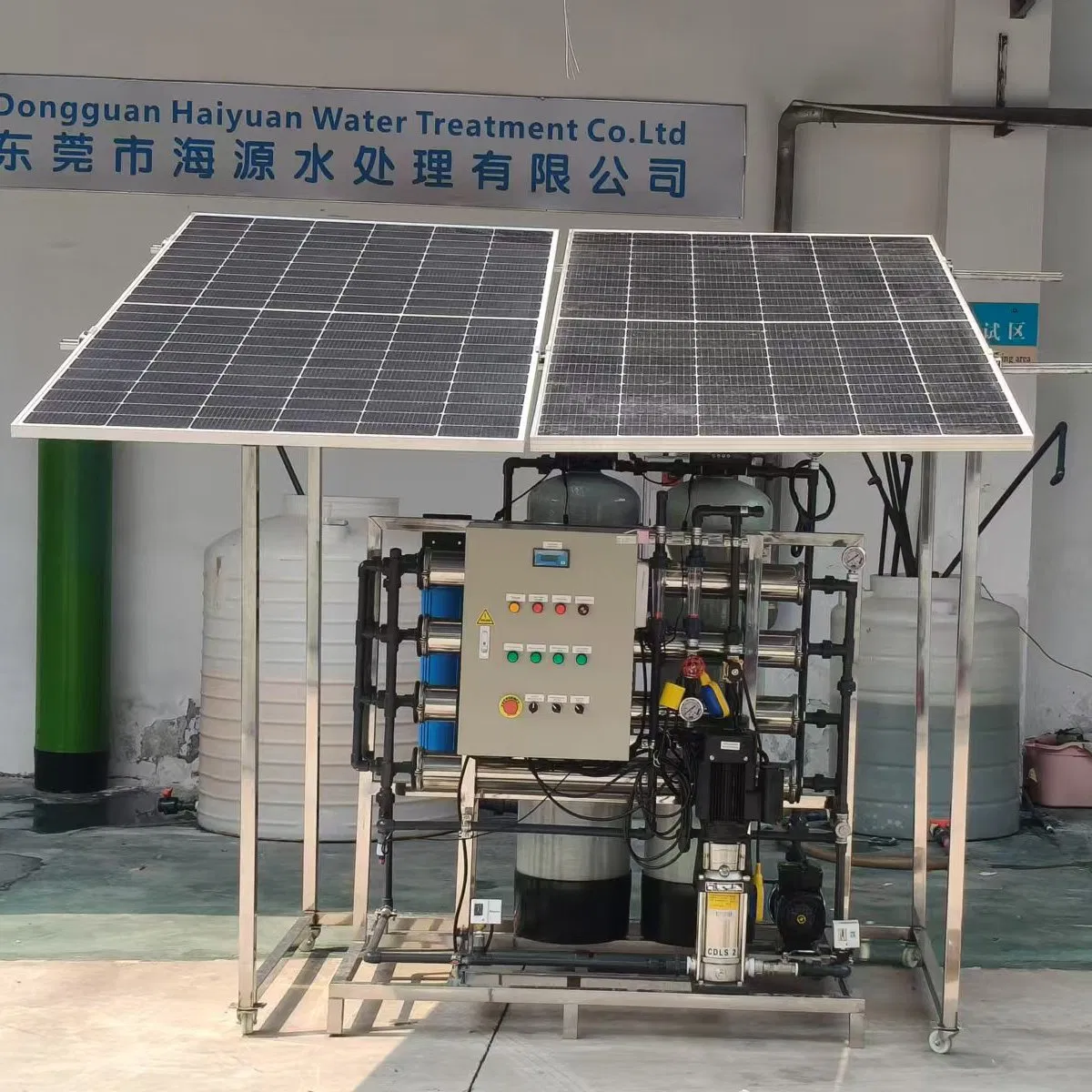

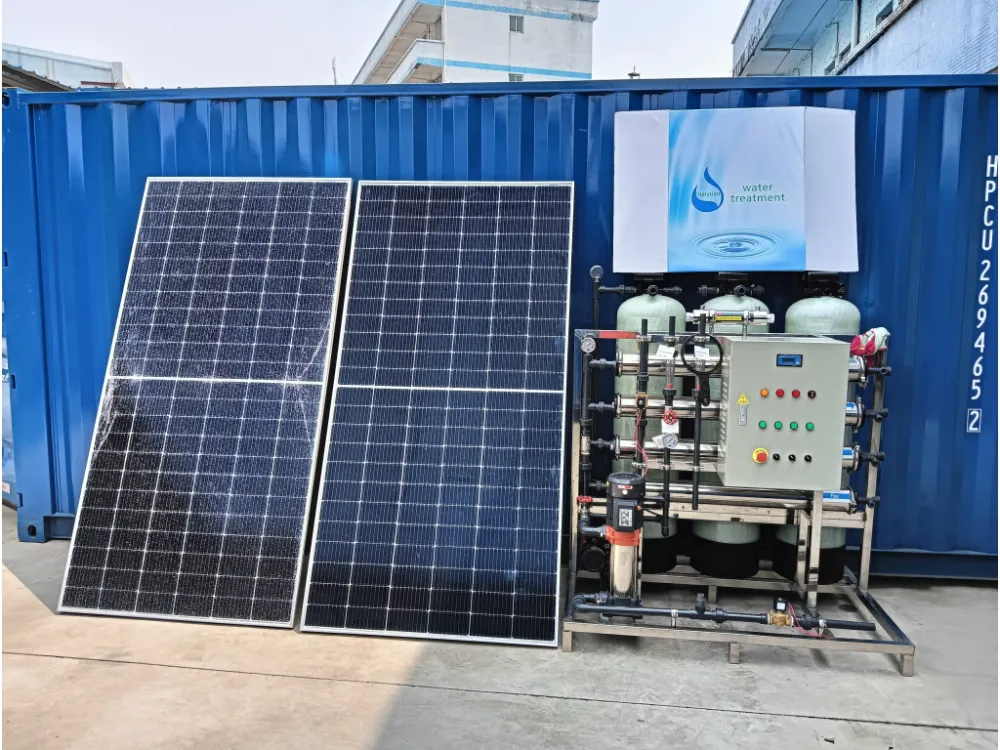

Solar Reverse Osmosis RO System 1000LPH Solar Powered Water Treatment Systems

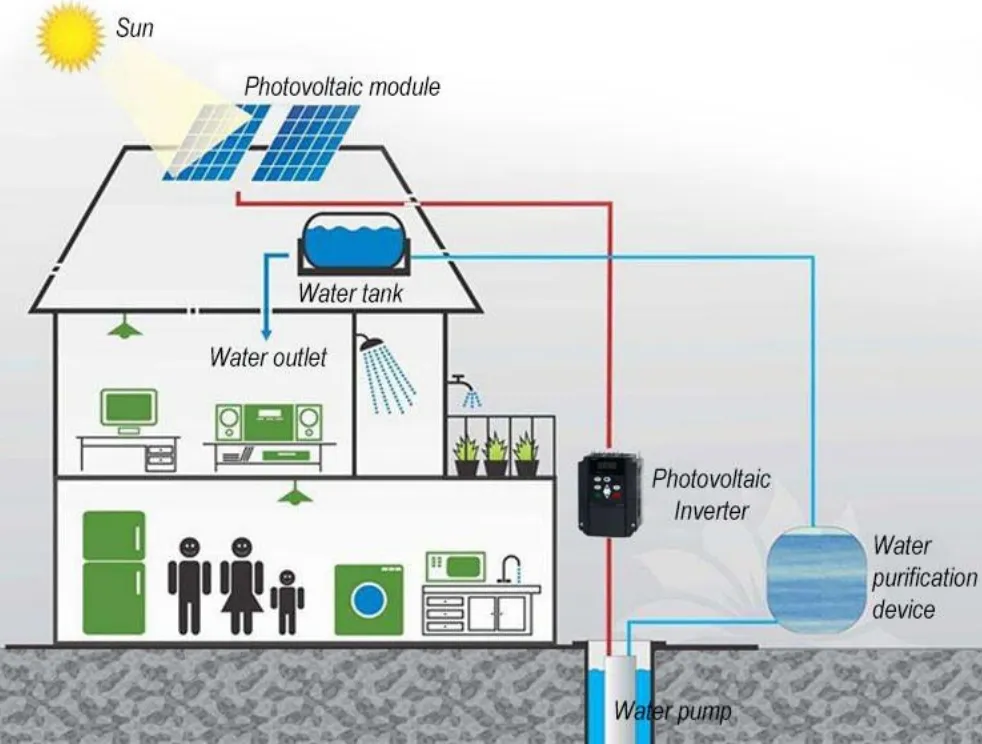

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water.

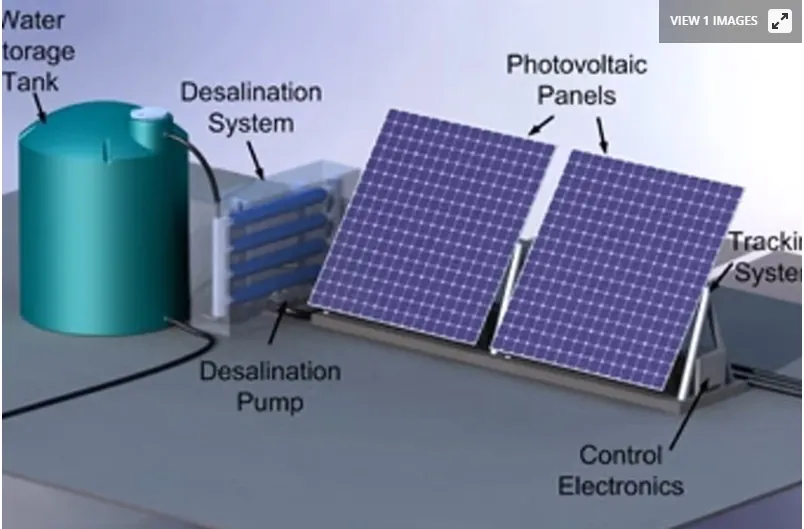

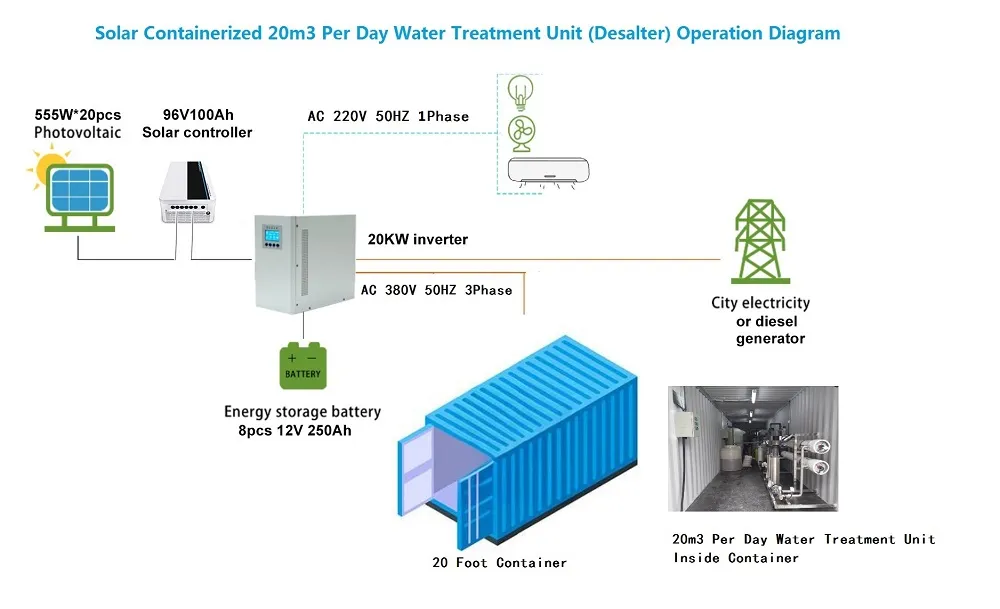

The system integrates solar heat collection, power conversion, and reverse osmosis membrane separation to achieve a green and sustainable process of extracting fresh water.
| Technical Parameters (HY-1000L/hr) | |||
|---|---|---|---|
| Flow Rate | 1000L/hr | Recovery Rate | 50% |
| Applicable Power | 1PH x 220V, 50Hz | Rated Power | 1.65KW |
| Solar Powered | 35 KW | Inverter | 44KW |
| Solar Panel | 14 PCS | Battery | 14PCS, 36KW |
Ideal for: Industrial Water, Agricultural Irrigation, Remote Areas, Islands, Disaster Areas, and Coastal Water-Scarce Cities.

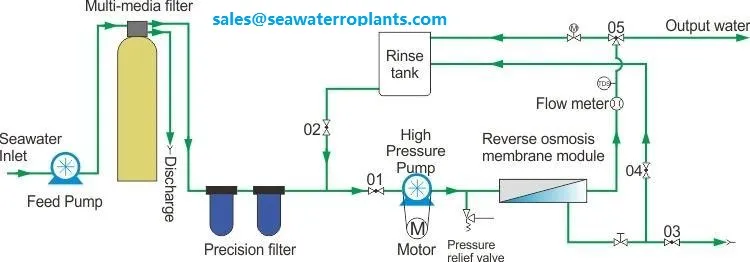

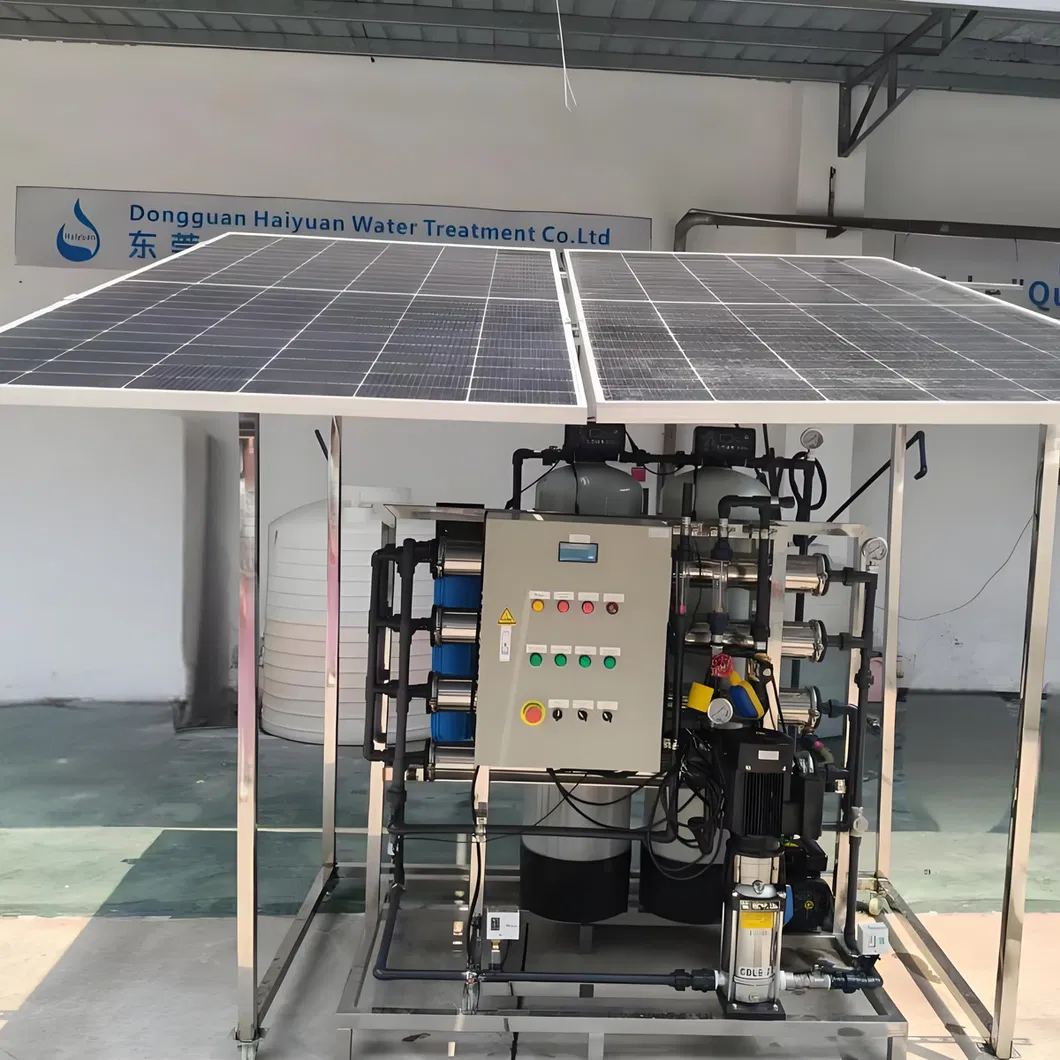

| Pre-treatment | Feed Water Pump (SS316L) | Provides initial filtration pressure. |
| Quartz Sand Filter | Removes suspended particles. | |
| 5/1 Micron Filter | Removes micro-colloids to protect membranes. | |
| RO Main Part | High Pressure Pump | Provides high pressure for desalination. |
| RO Membranes | Over 98% desalination rate. |

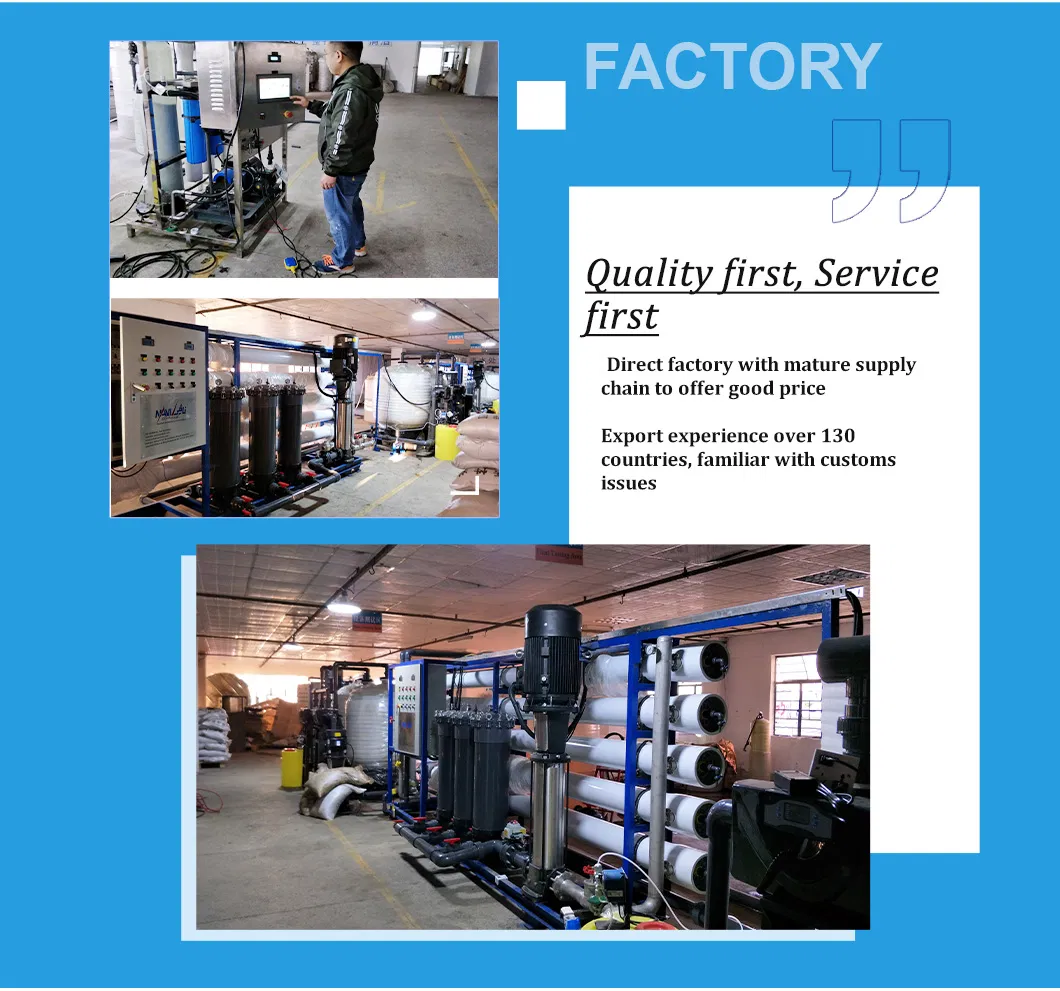

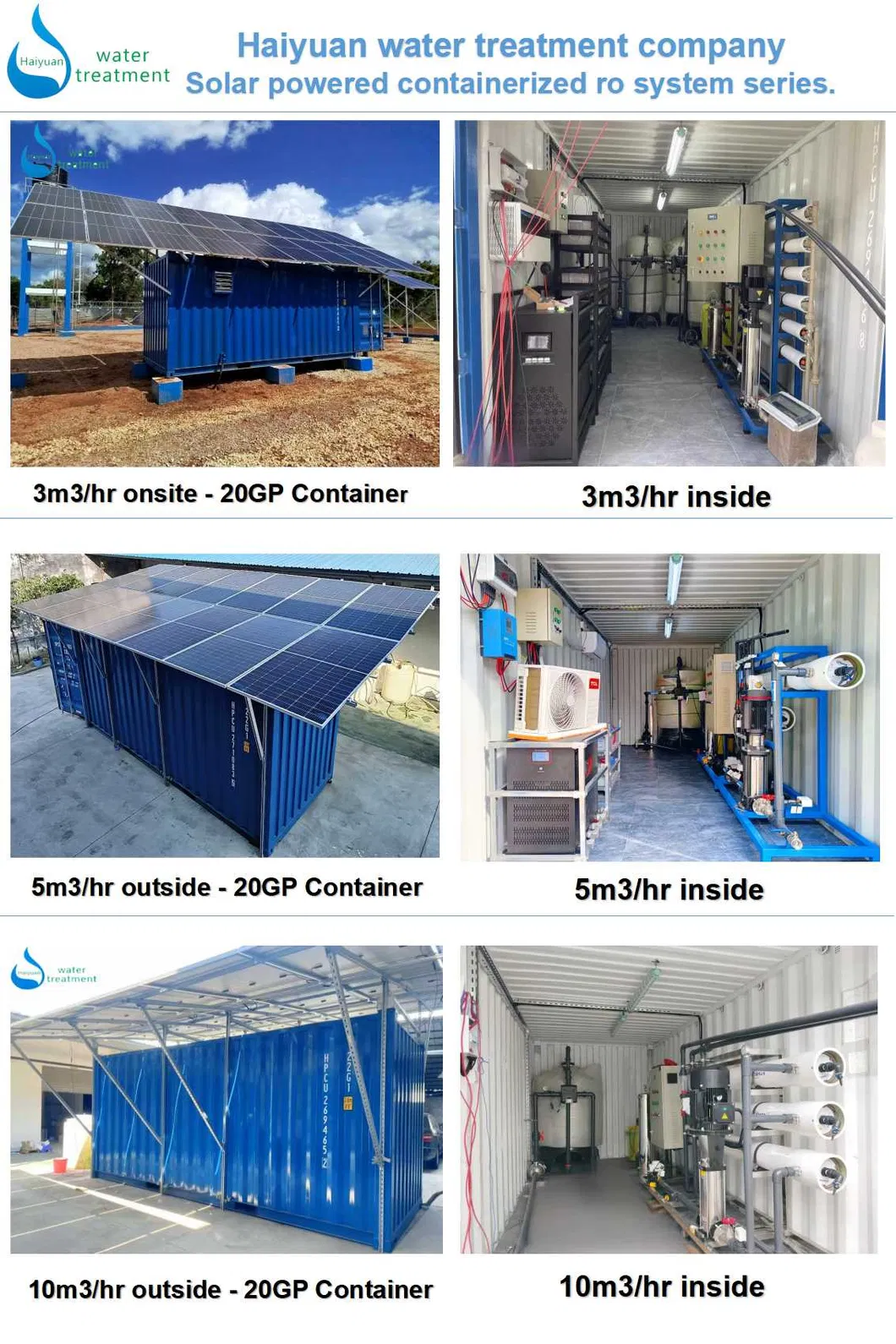

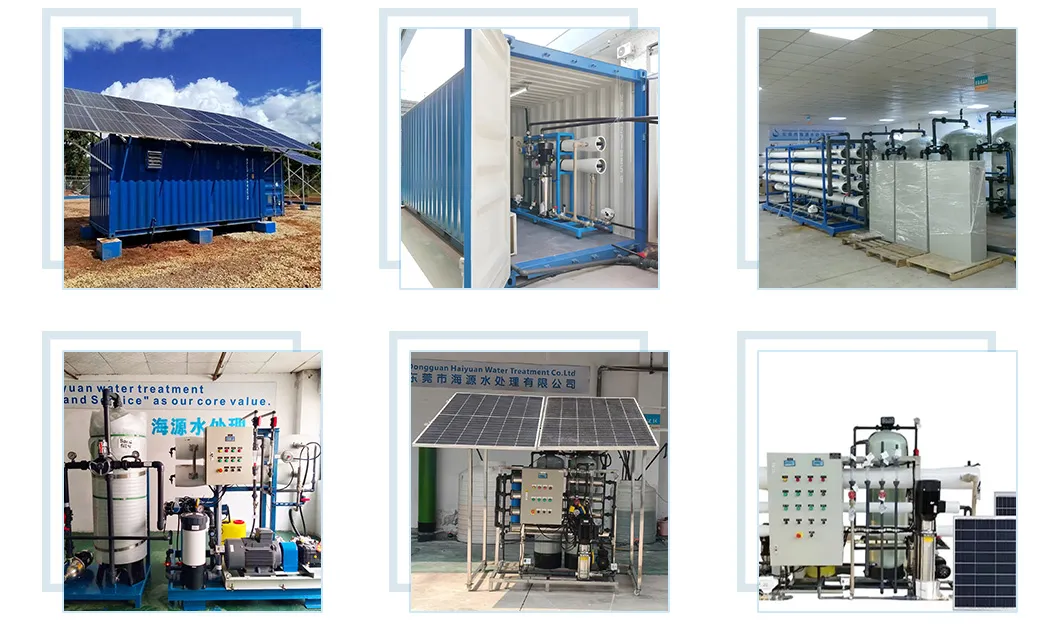

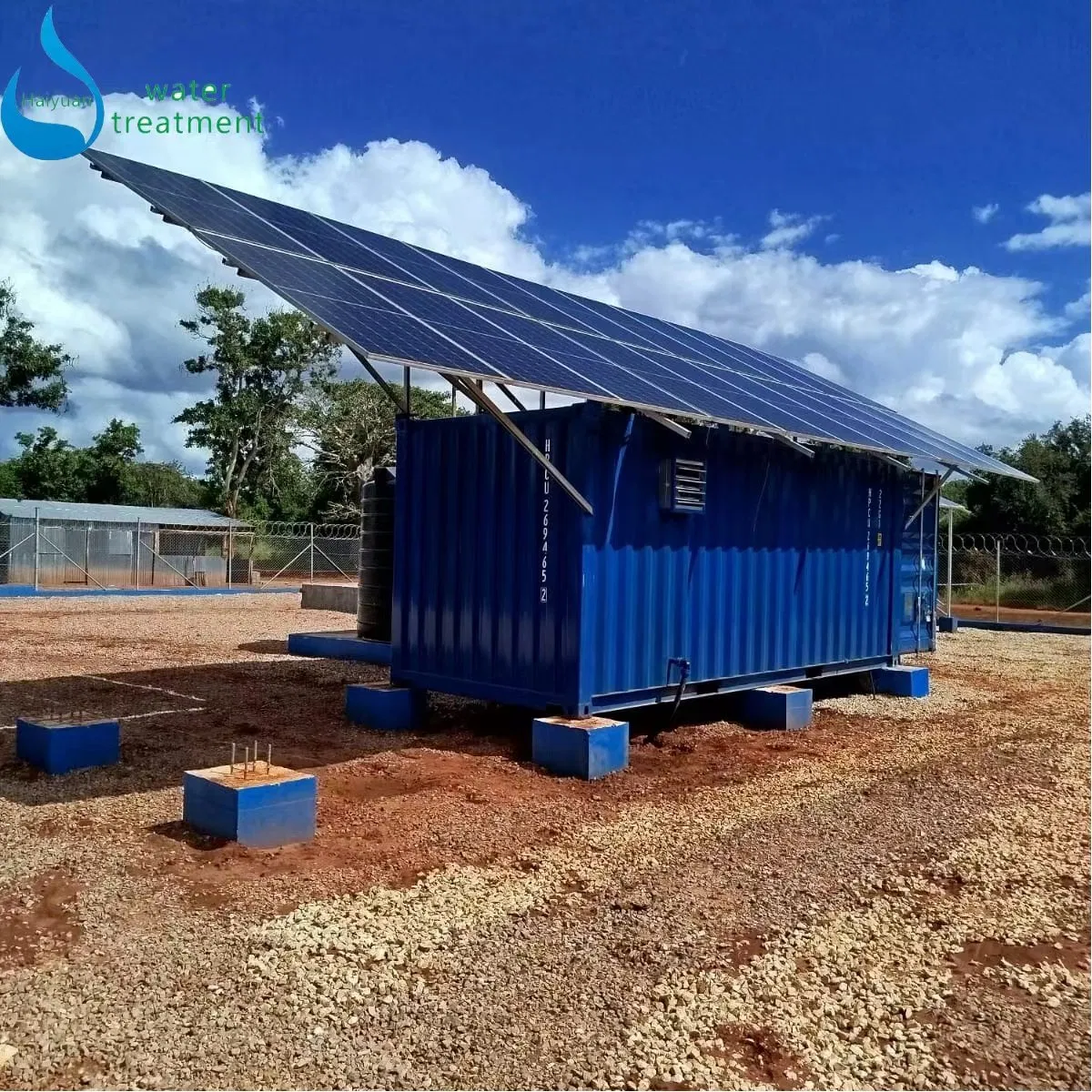

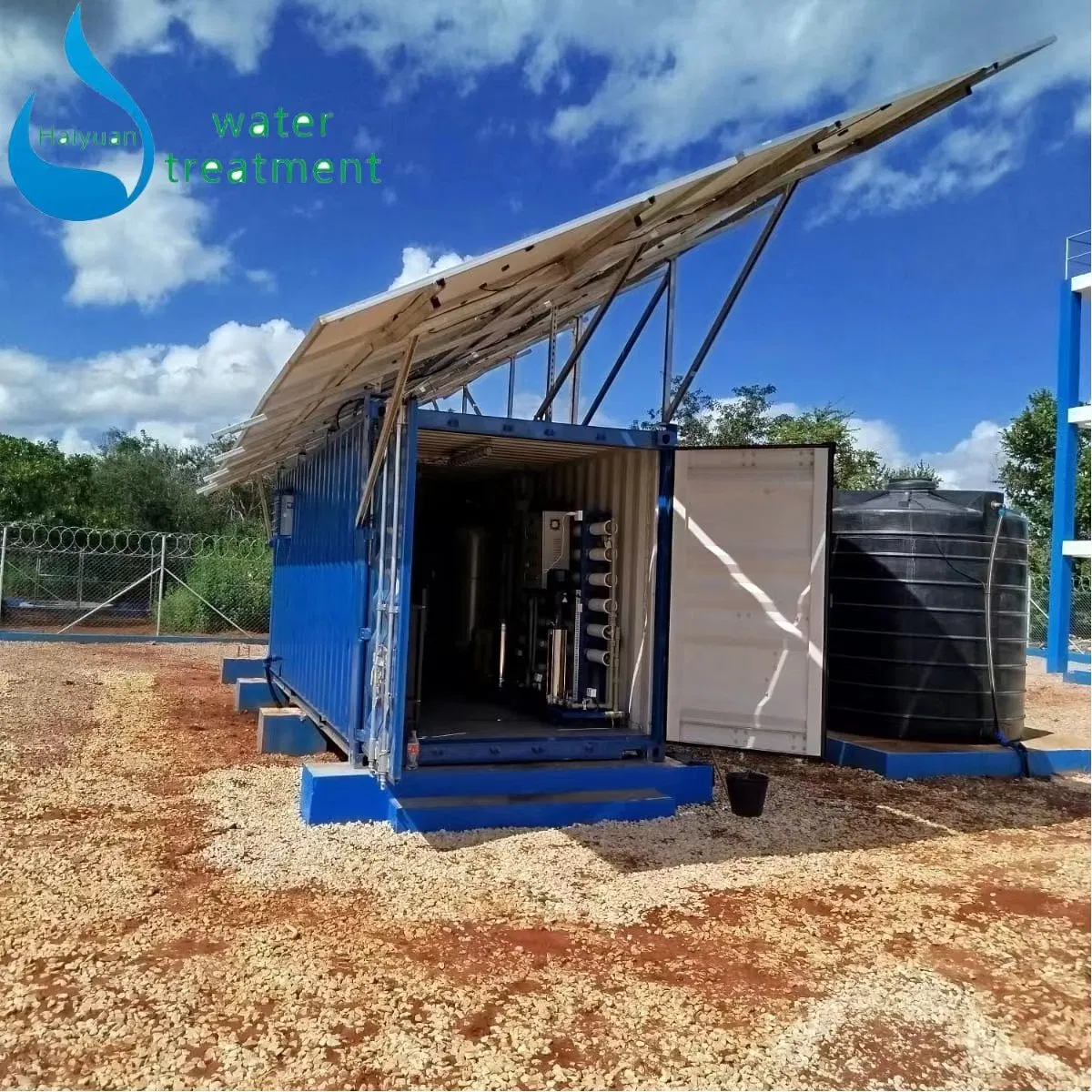

With more than 15 years of experience in water treatment systems, we design, manufacture, and install containerized solar powered desalination plants. Our mission is to be your water treatment consultant, providing high-quality solutions and reasonable pricing.
