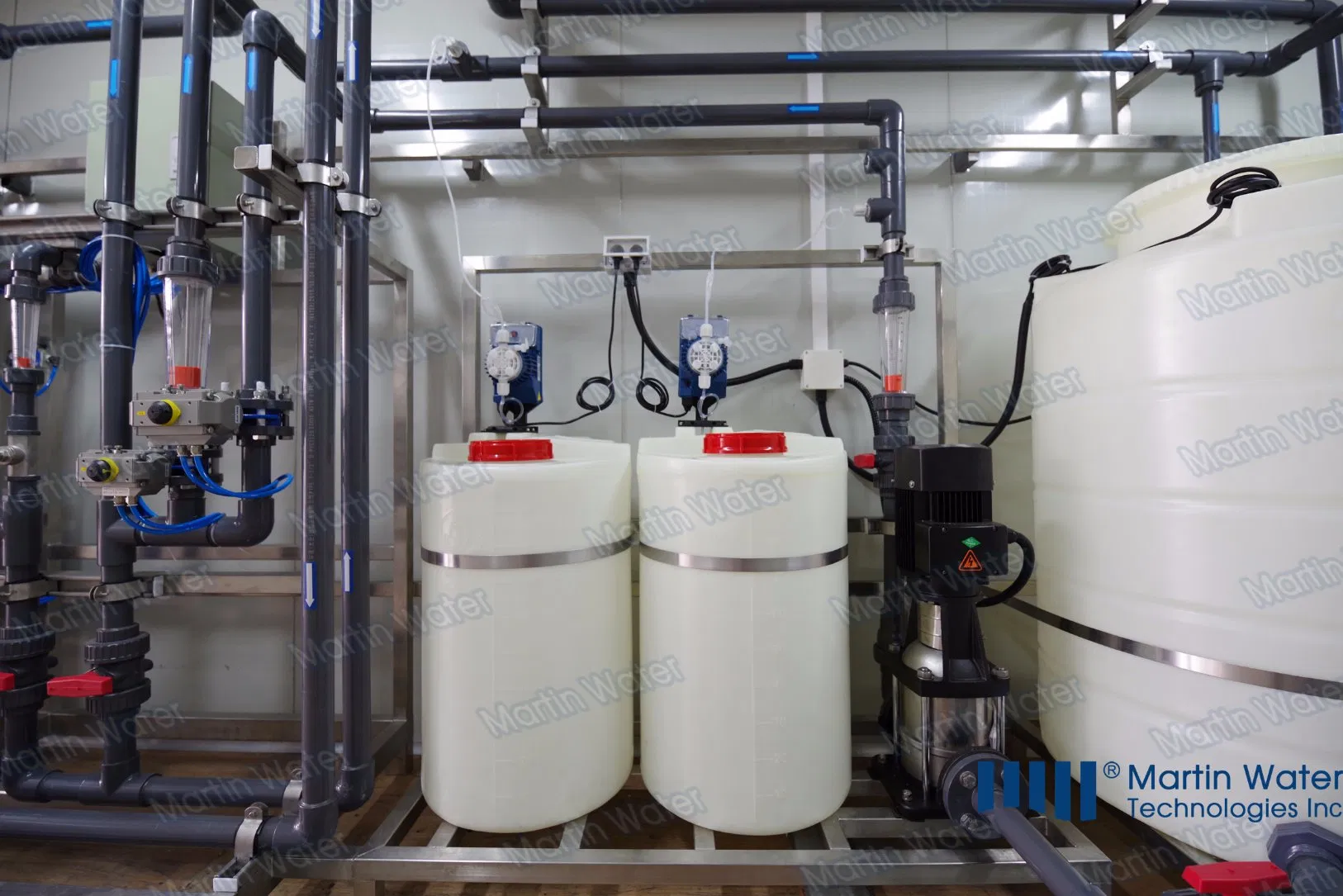

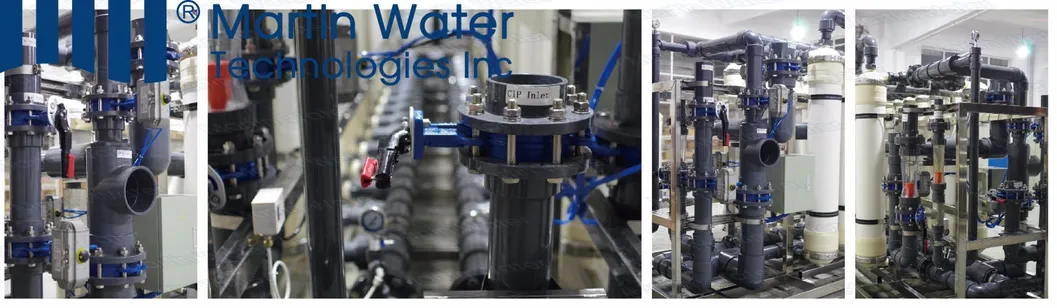

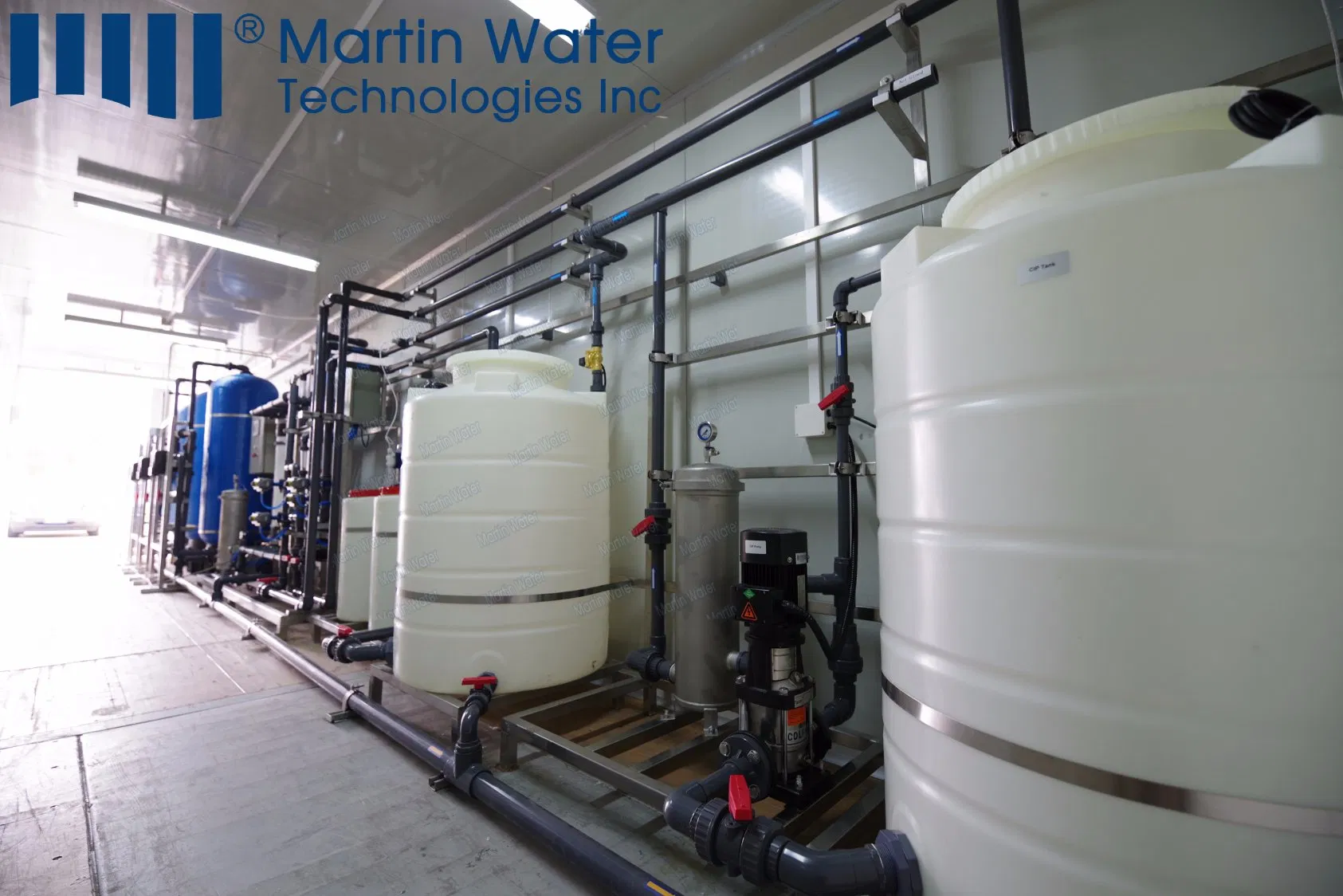

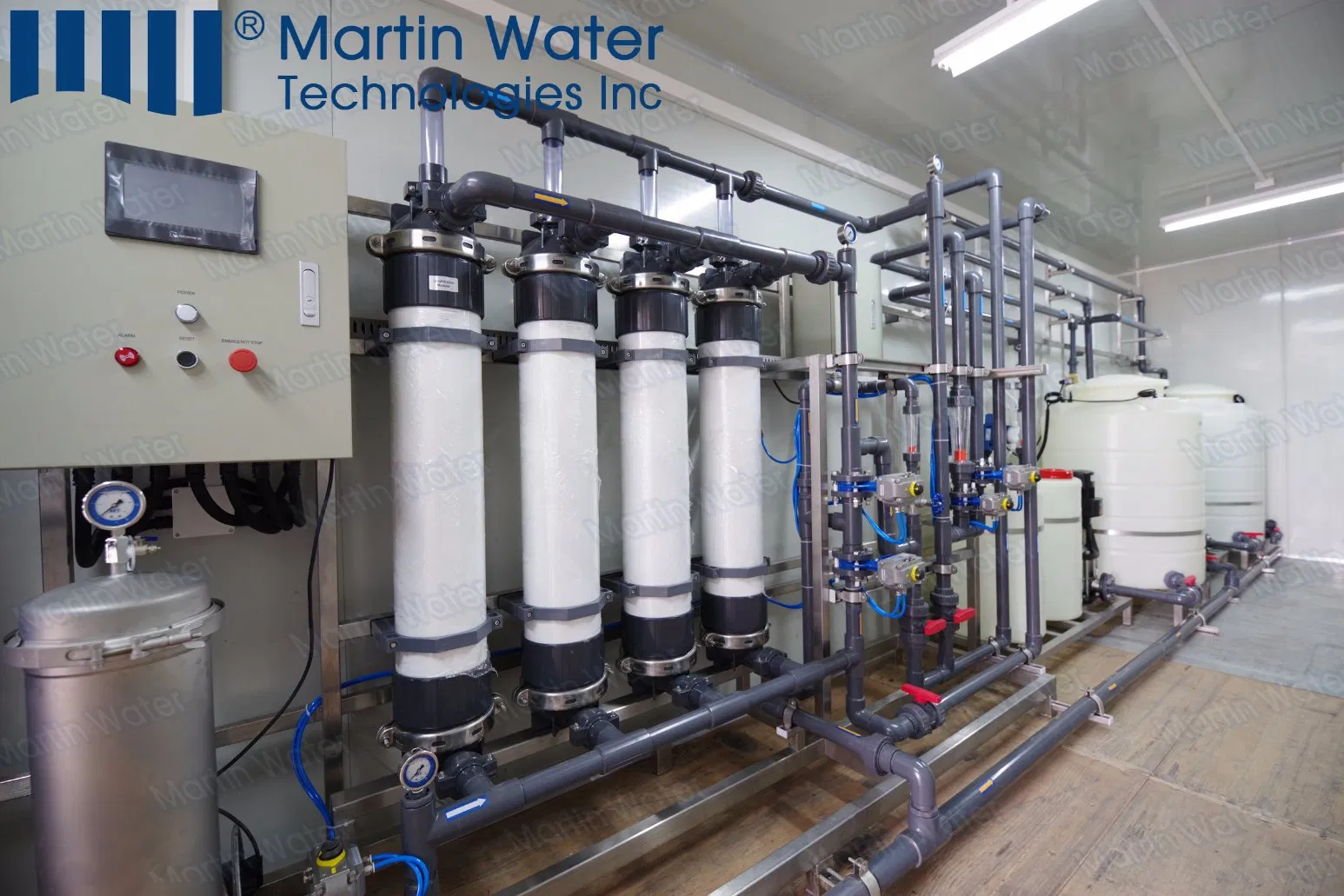

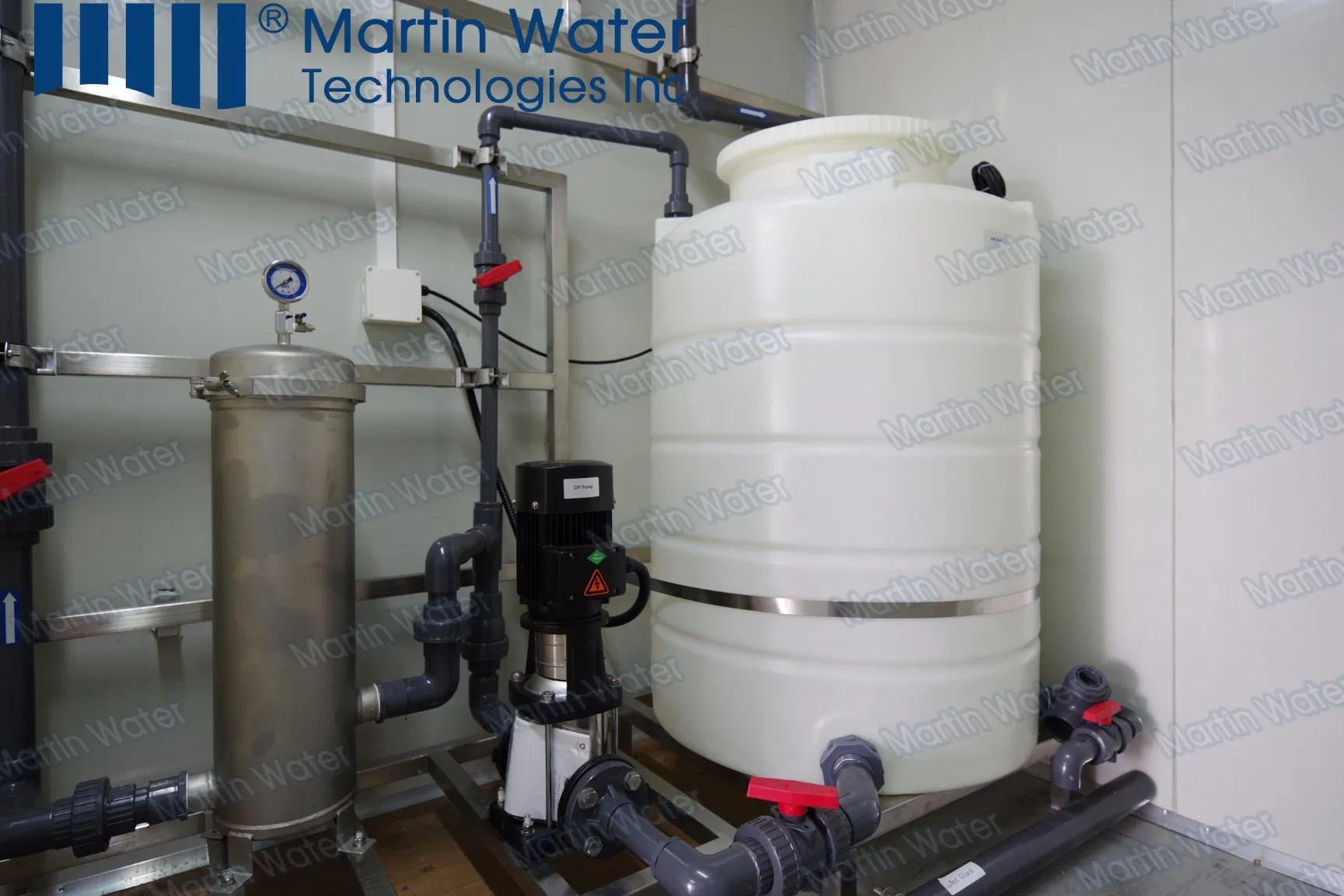

A fully pre-designed and engineered Ultra Filtration skid range with flows from 1m³/hr (6,000 GPD) through to 70m³/hr (42,000 GPD). Fitting in container (20' or 40') exquisitely, it is not only conducive to transport but also helps to field hoisting, placement, and rapid use. The operation management greatly facilitates equipment running and avoids excessive pipe/device installation and civil works. This reduces investment costs, especially for remote areas and island regions. This equipment can be applied to both fixed and mobile installations, field operations, and disaster relief emergency use.
Maximum inlet turbidity: 200 NTU
Temperature range: 5-45 ºC
Operation pH range: 2-13
Product outlet turbidity: ≤0.07 NTU
Product outlet SDI: < 2
MWCO, nominal: 50K Dalton
Max feed pressure: 4 Bar (60 PSI)
Max Trans-membrane Pressure: 2 bar (30 PSI)
Membrane lifespan: 3-5 years
Recovery rate: 90%-95%
