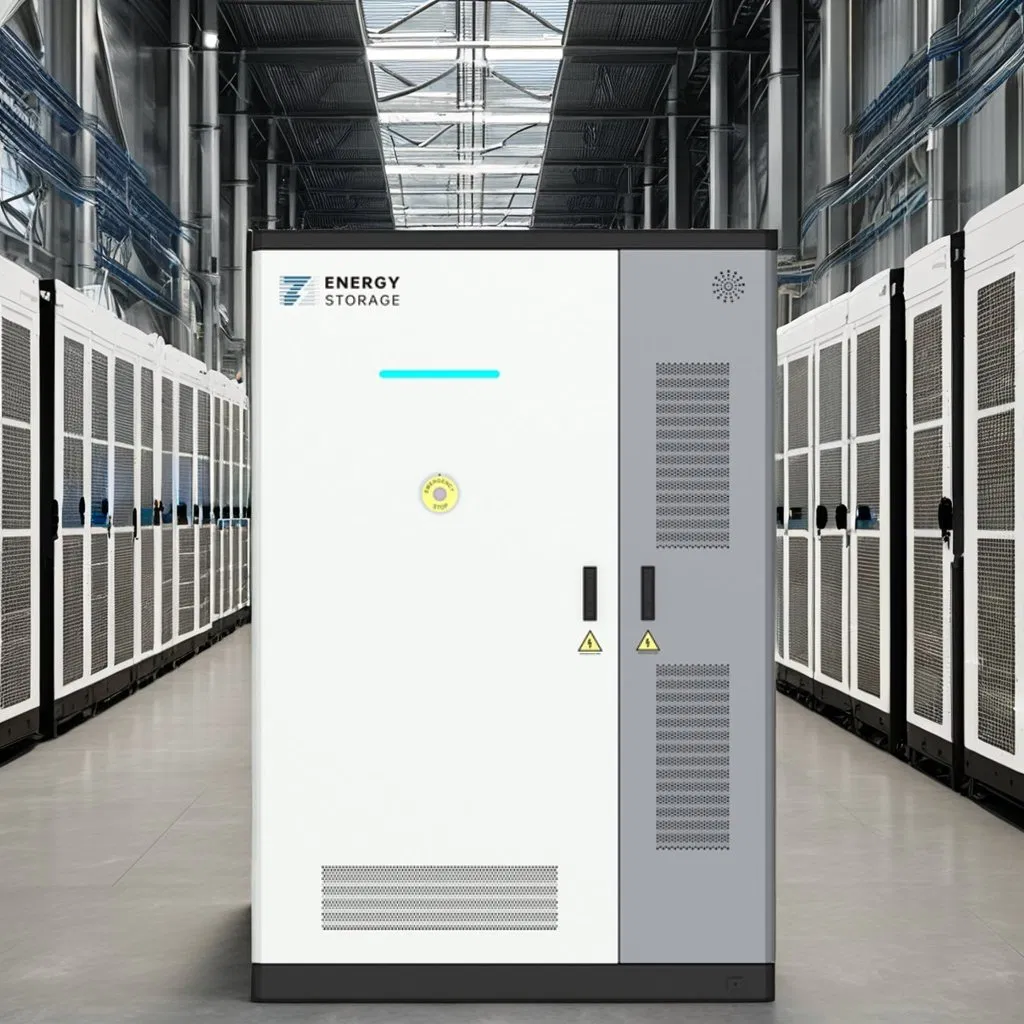

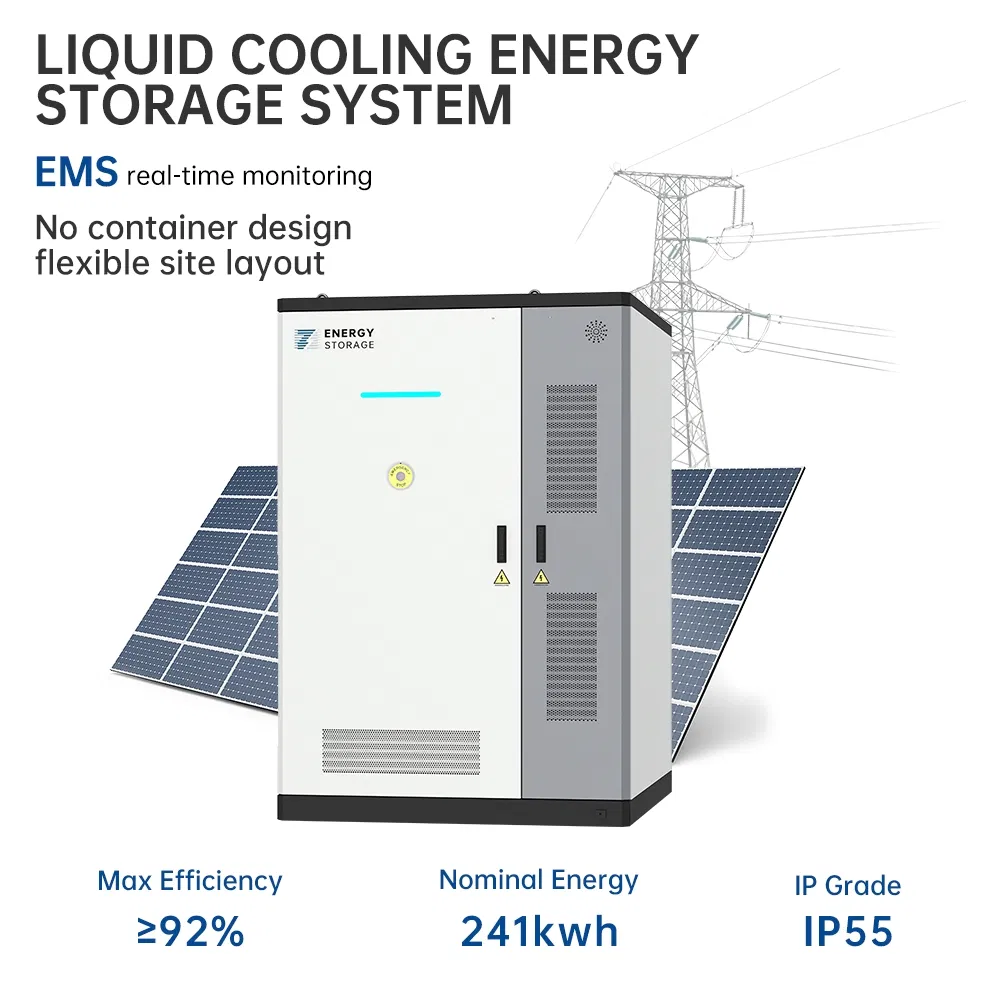

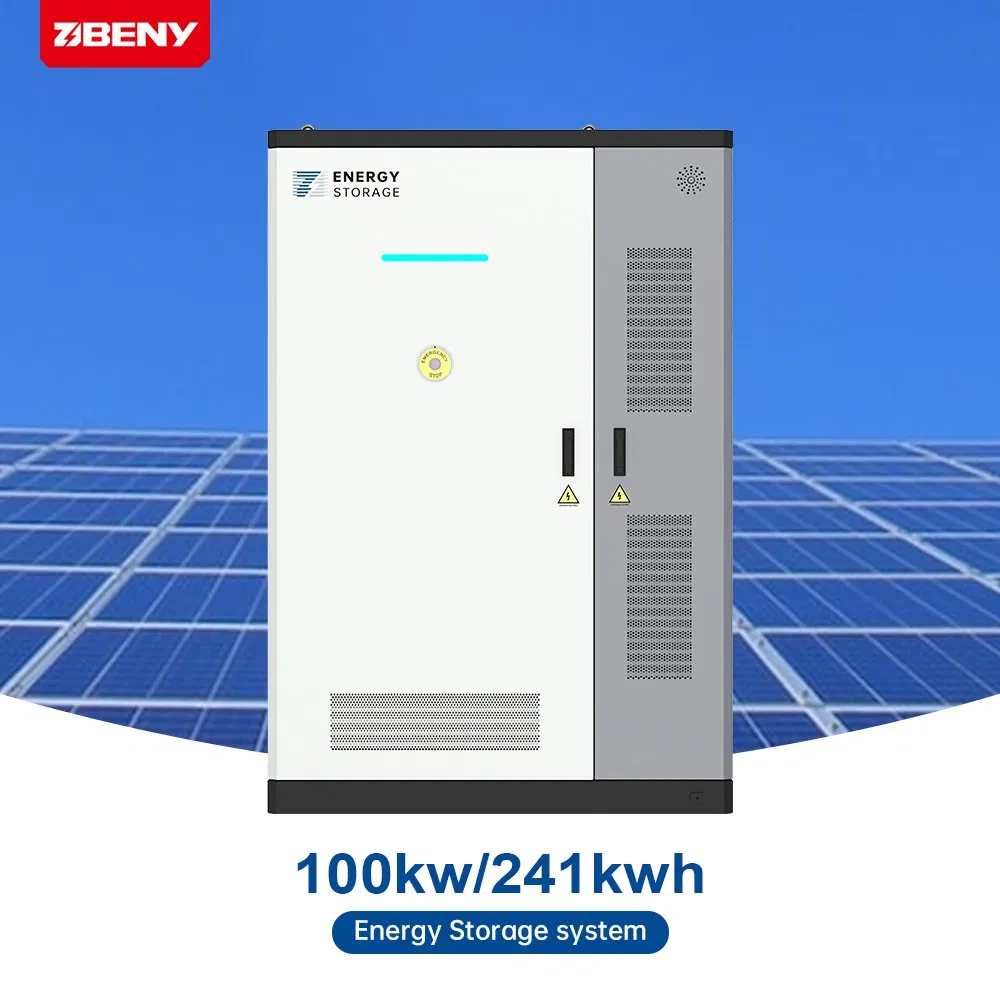

LiFePO4 Battery Cabinet High Voltage Ess Lithium Iron Battery 241kwh Pack for Solar System

Customization: Available
Nominal Voltage: 768V
Warranty: 5 Years

Product Description

1

Technical Overview

Model NO.
BYHV-241SLC
Nominal Capacity
314ah
Cycle Life
8000 Cycles
Nominal Energy
241kwh
Rated Voltage
768V
Operating Voltage
628V ~ 855V
Rated Power
100kw
Protection Class
IP55
Rated Frequency
50Hz/60Hz
Power Factor
0.99
Package Size
132x140x205 cm
Gross Weight
2400.00kg
2

Why Choose Our Solutions

Rigorous Testing

From raw material screening to final design, products are guided by global safety standards. With 3710 quality control points monitored in real-time, we ensure maximum reliability for every system delivered.

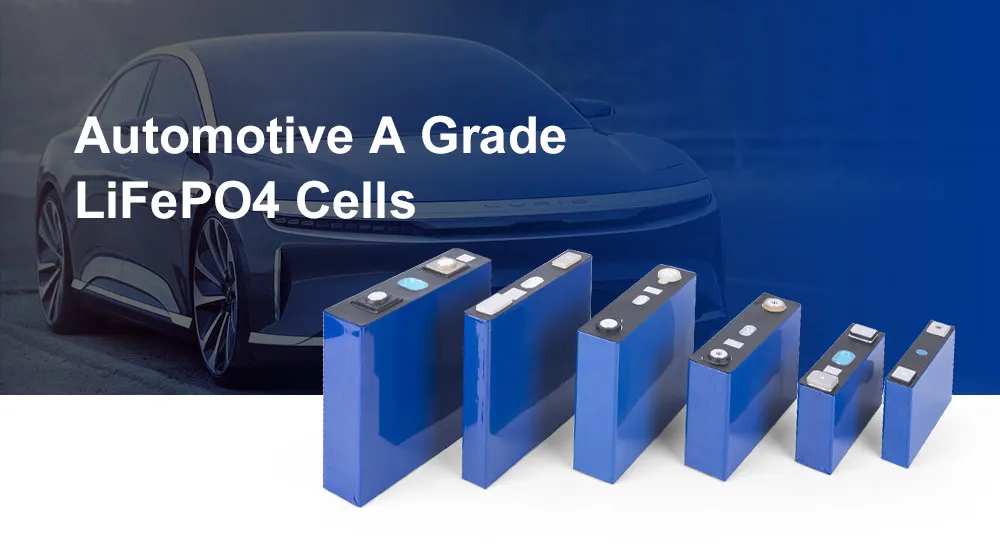

Premium Component Integration

We utilize components from industry-leading suppliers to provide the strongest hardware security guarantee, ensuring high-tier performance across all energy storage units.

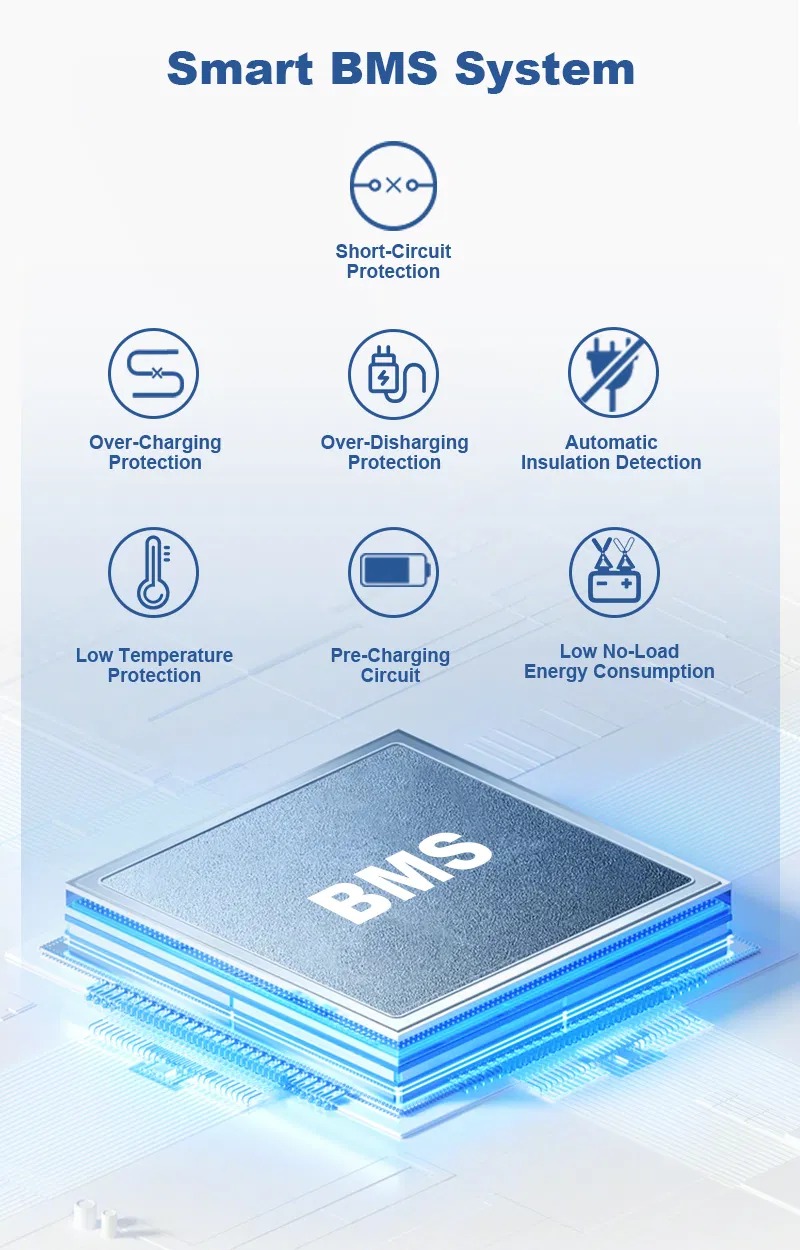

Multi-level Security Control

Layered safety management from BMS to PCS, combined with AC/DC electrical protection and fire protection systems. Certified under IEC62619, IEC 63056, and IEC60730-1.

Advanced Safety Warning

Utilizing safety warning algorithms to analyze battery aging and internal characteristics, allowing real-time judgment of internal risks and precise SOC/SOH monitoring.

3

Product Advantages

4

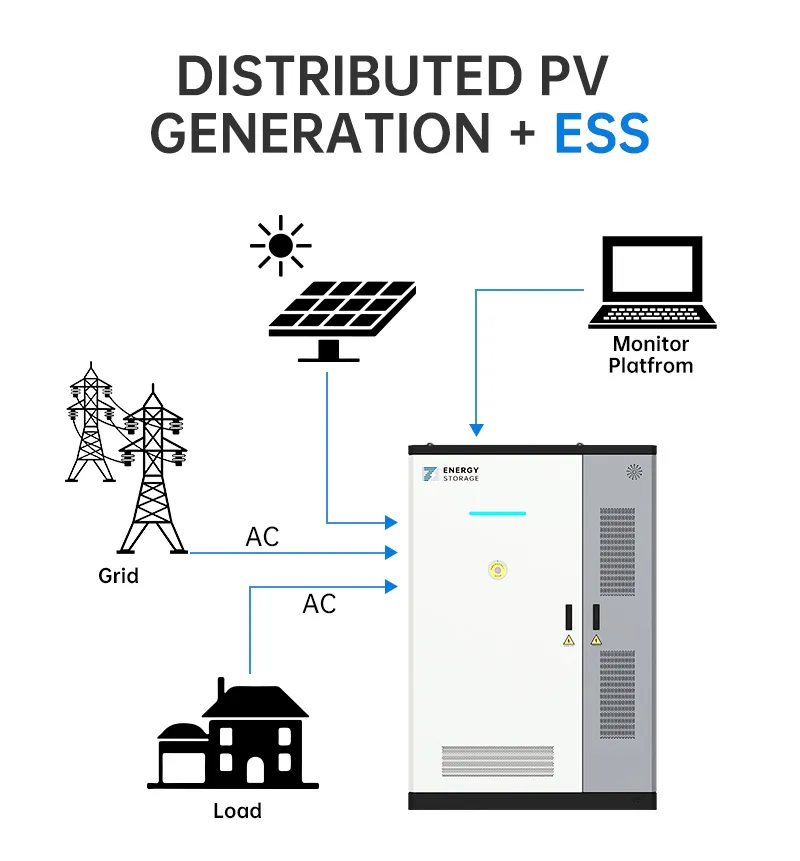

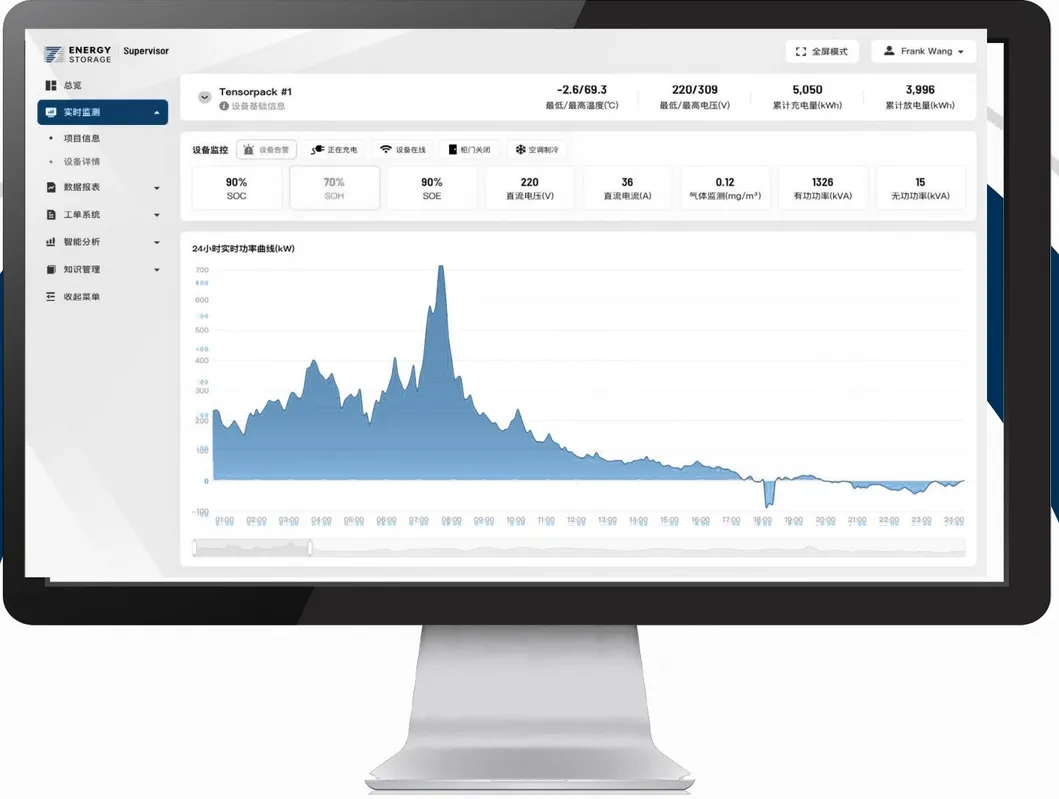

Intelligent Monitoring Suite

PowerView: Real-time viewing of operating status, economic benefits, and historical data.

Supervisor: O&M software that predicts maintenance needs 24/7 for worry-free security.

Analyzer: AI data software using electrochemical models to optimize operating strategies.

Bidder: Virtual power plant software for resource aggregation and power market trading.

5

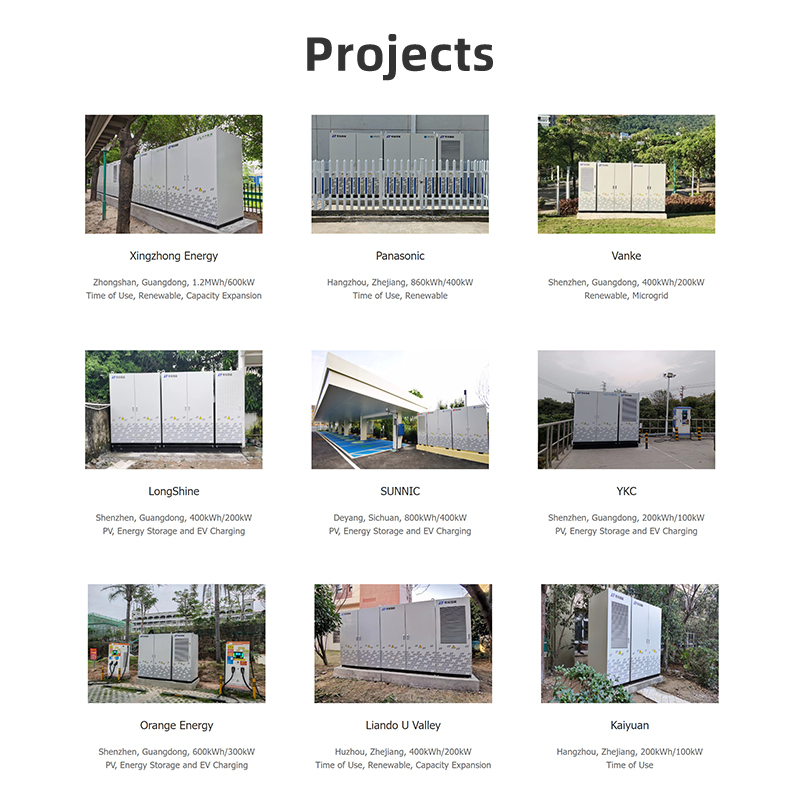

Global Implementation

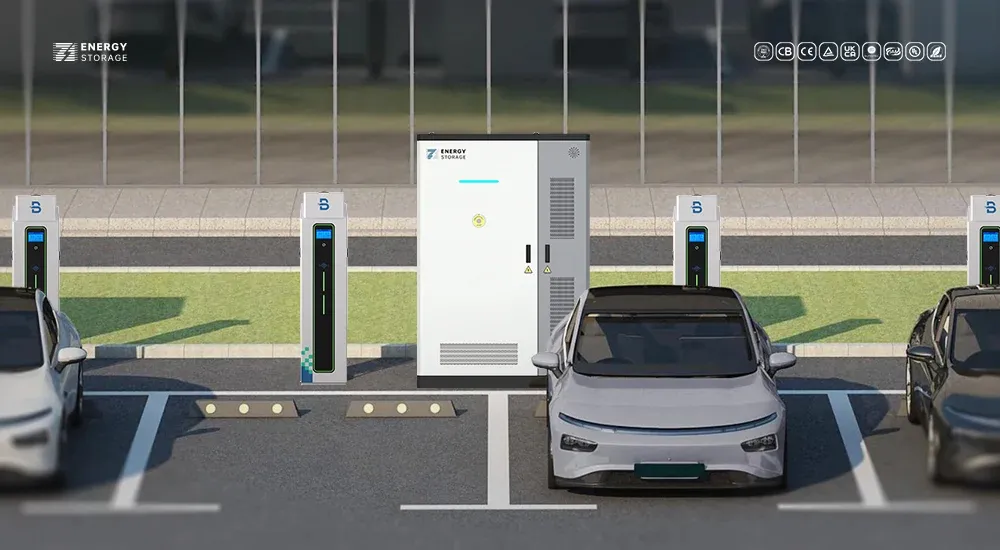

Our solutions are instrumental in the success of numerous photovoltaic, battery storage, and EV charging system projects across Australia, Europe, the Americas, and Southeast Asia. We cater to major organizations including solar manufacturers, PV contractors, and EV operators worldwide.

Exhibition Highlights

Frequently Asked Questions

What is the cycle life of the 241kWh Battery Cabinet?
The system is designed for a long service life of over 15 years, offering approximately 8000 cycles.

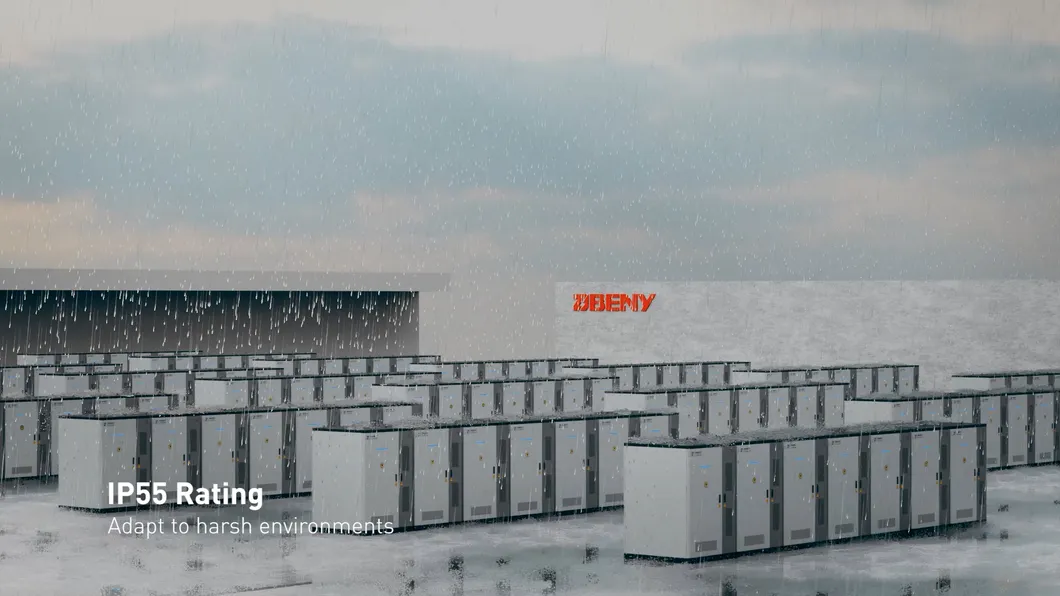

What is the protection rating for outdoor installation?
The battery cabinet features an IP55 protection class, making it suitable for various outdoor environmental conditions.
Which safety certifications does the system hold?
The product has passed strict safety certifications including IEC 62619, IEC 63056, IEC 62477, IEC 61000, and IEC 60730.
Can the system be monitored remotely?
Yes, it includes a comprehensive software suite (PowerView, Supervisor, Analyzer) that allows for 24/7 real-time remote monitoring and AI-driven data analysis.
What is the policy for damaged components during delivery?
Every unit undergoes rigorous inspection. If a battery is received with a broken cell under general use conditions, we provide a replacement for free.
How long does it take to deploy and adjust the system?
The system is designed for easy expansion and flexible placement; adjustment operations can typically be completed within 1-2 days.
