Product Description

Basic Specifications

Model NO. ECH-RO-4

Application Industry

Processing Capacity 4m³/H (Pure Water Output)

Operating Pressure 0.6-1.5 MPa

Power Supply 380V/50Hz

Influent Quality Conductivity ≤500 μs/Cm

Product Quality Effluent ≤20 μs/Cm

Specification Carbon steel construction

Transport Package Plastic Film / Wooden Case

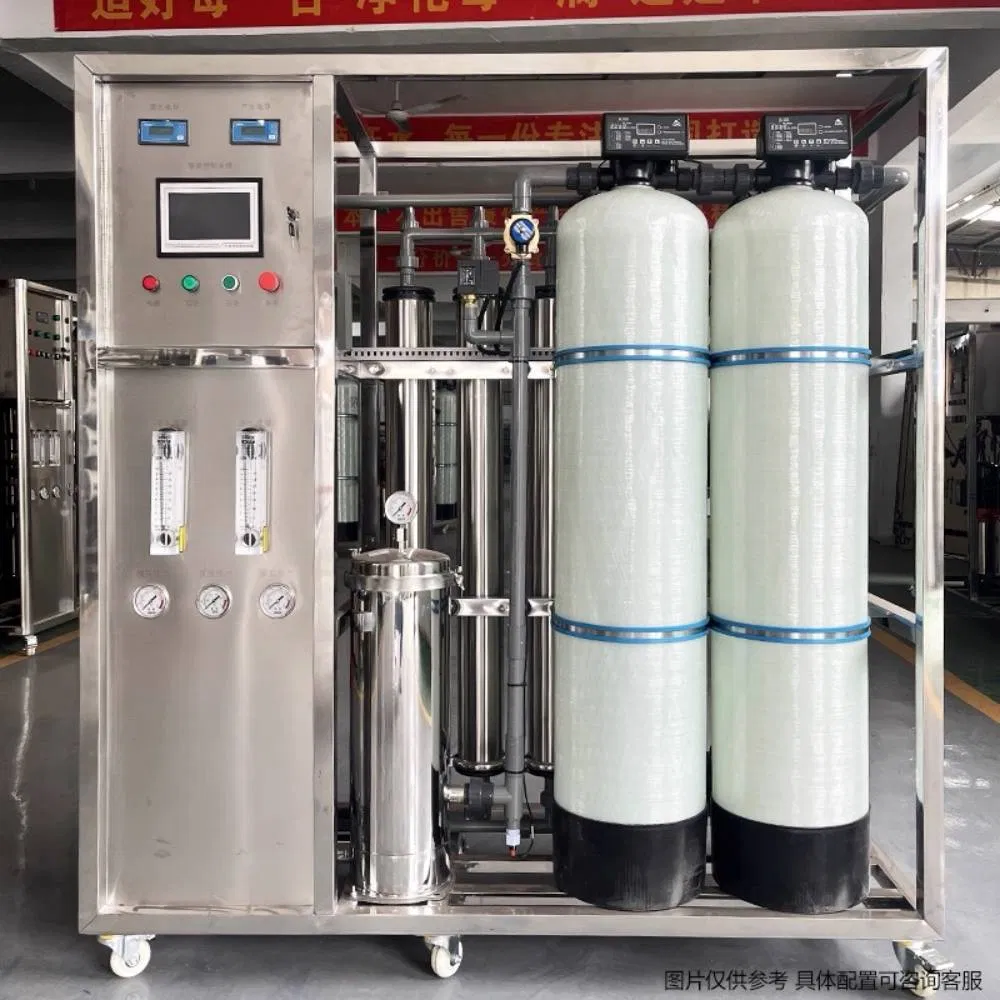

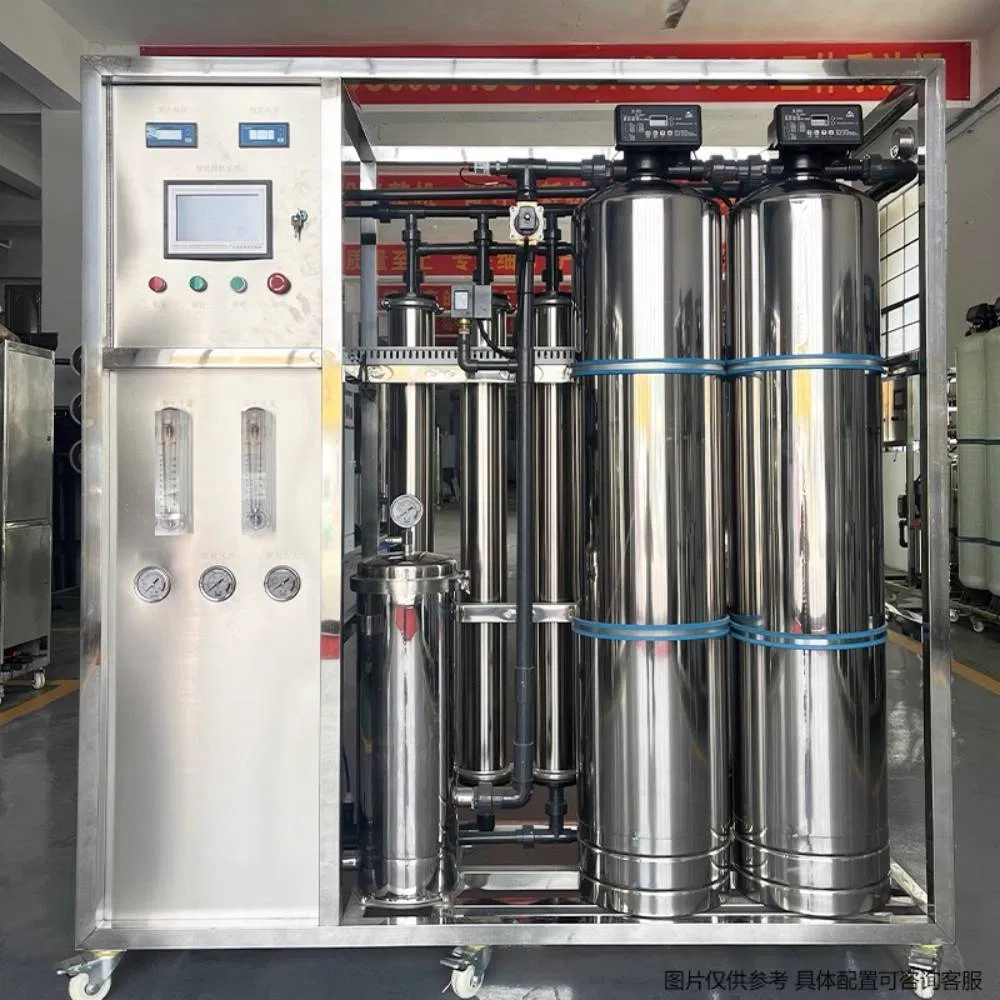

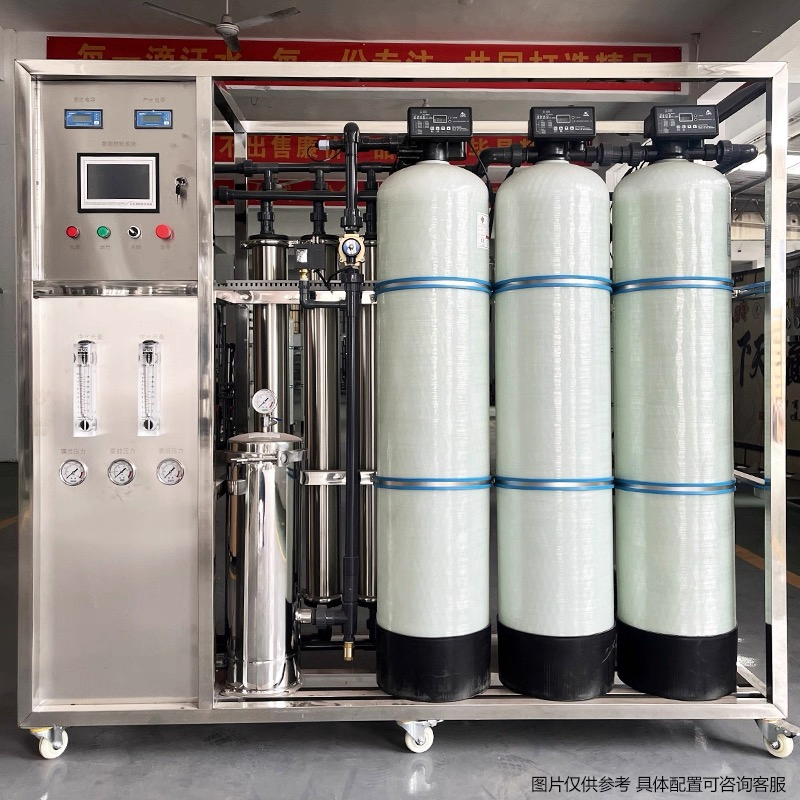

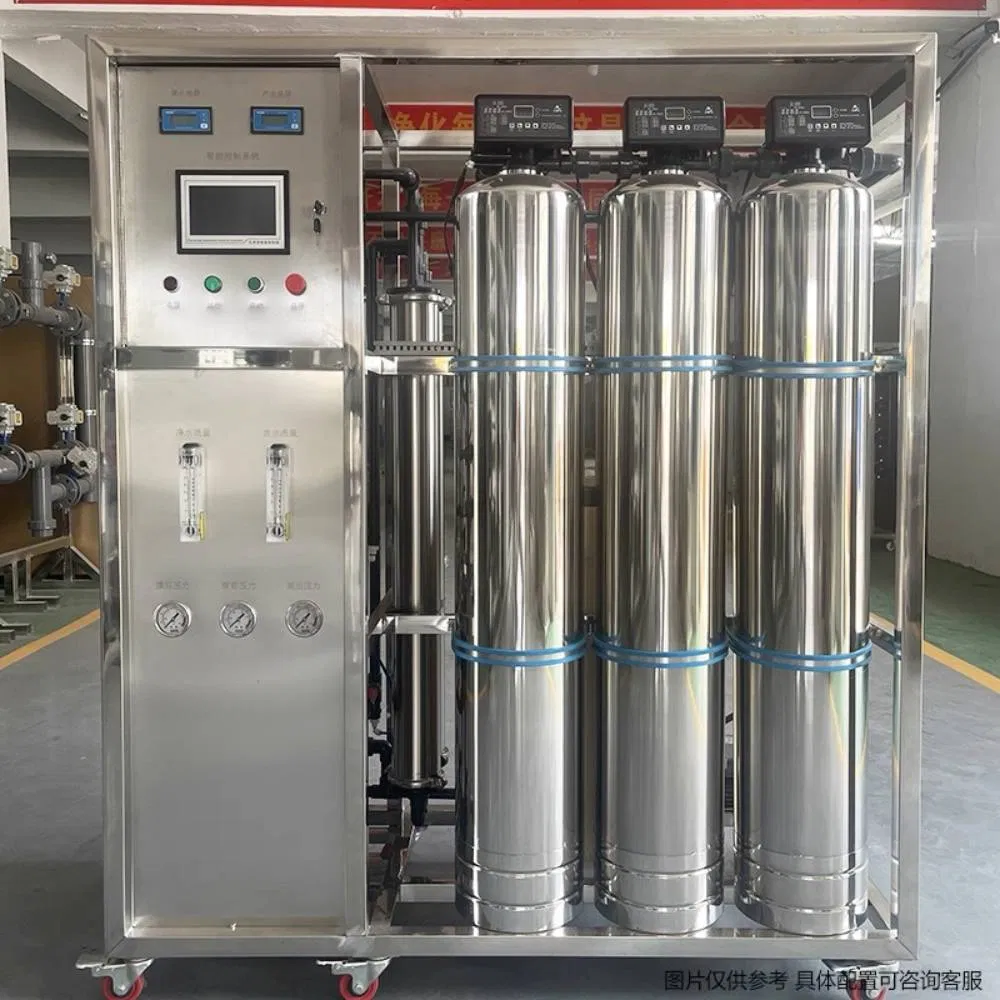

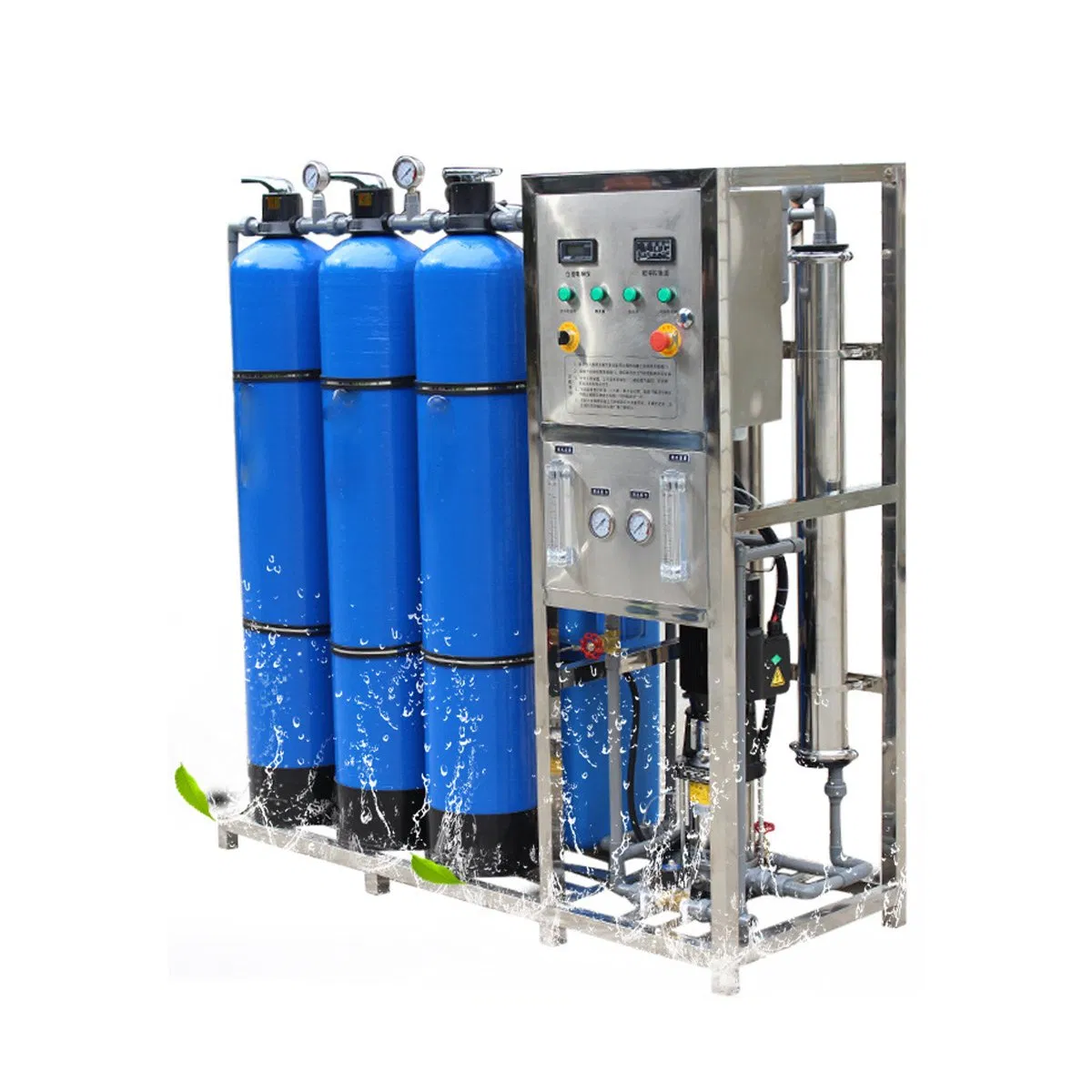

Industrial RO System 4m³/h Overview

This 4m³/h reverse osmosis (RO) water treatment system includes pretreatment, RO unit, electrical control, and piping. The pretreatment combines multi-media filter, softener, and cartridge filter to protect RO membranes. The RO unit features a 5.5kW high-pressure pump, 8040 membranes (5 pcs), and automatic controls, producing water with conductivity ≤20μS/cm. Constructed in SS304 stainless steel, it is suitable for food, electronics, or pharmaceutical industries.

Key Features

Full automatic operation
SS304 construction for main components
Multi-stage pretreatment protection
Suitable for food/pharmaceutical industries
Compact integrated design

Performance Parameters

System Capacity: 4m³/h
Recovery Rate: ≥65%
Desalination Rate: ≥98%
Outlet Conductivity: ≤20μS/cm
Operation Pressure: 1.0-1.5MPa

Technical Specifications

Category	Item	Specification	Material	Qty
Pretreatment
Pump	Raw Water Pump	Q=8T/H, 1.5KW	SS304	1 unit
Filter	Multi-media Filter	Ø800*2400	FRP	1 set
Filter	Activated Carbon Filter	Ø800*2400	FRP	1 set
Softener	Softener	Ø800*2400	FRP	1 set
Security	Security Filter	7 elements 40"	SS304	1 set
RO System
Pump	High Pressure Pump	Q=8T/H, 5.5KW	SUS304	1 unit

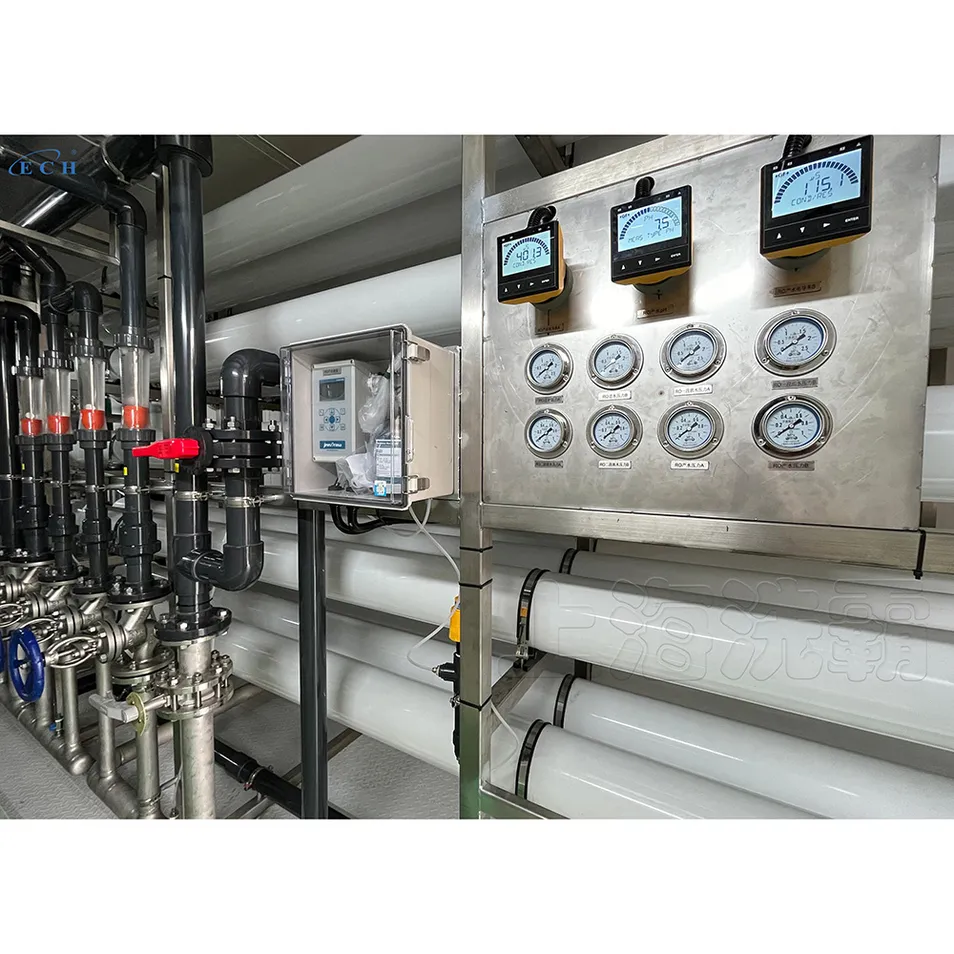

Membrane	RO Membrane	8040	Polyamide	5 pcs
Housing	Membrane Housing	8040-1W-300PSI	FRP	5 pcs
Meter	Conductivity Meter	CCT-3320	-	2 sets
Collection & Control
Tank	Pure Water Tank	5000L	SS304	1 unit
Sterilizer	UV Sterilizer	4T/H, 100W	SUS304	1 unit
Control	Control System	PLC, S7-200, RS485	-	1 set

Professional Solutions & Expertise

With extensive experience in water treatment technology, we provide integrated solutions for healthy space environments. Our services cover various water treatment chemicals and advanced equipment including automatic softeners, RO systems, and UV sterilizers. We serve global clients across industries including food, electronics, and pharmaceuticals.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Turnkey project solutions
Fast shipping & customs support

R&D and Quality

126 authorized patents
60 invention patents
ISO9001, ISO45001, ISO14001
Professional R&D Center

Frequently Asked Questions

Q1: Why does this 4m³/h RO system include both multi-media filter and softener? A1: The multi-media filter removes suspended solids and large particles, while the softener eliminates calcium/magnesium ions. This combination prevents membrane fouling and scaling, significantly extending RO membrane lifespan.

Q2: Can the equipment be customized for specific industrial needs? A2: Yes. We offer comprehensive OEM/ODM customization based on your specific water quality requirements and industry standards.

Q3: What industries are most suitable for this 4m³/h RO system? A3: This system is ideally suited for the food and beverage, electronics, and pharmaceutical industries, or any application requiring high-purity water with conductivity ≤20μS/cm.

Q4: What is the typical desalination rate of this system? A4: The system achieves a desalination rate of ≥98%, ensuring high-quality output water for demanding industrial processes.

Q5: Are you a manufacturer or a trading company? A5: We are a professional manufacturer integrating R&D, manufacturing, and international trade, offering factory-direct pricing and technical support.

Q6: What certifications does your production process hold? A6: Our operations are certified under ISO9001 (Quality), ISO14001 (Environment), and ISO45001 (Health & Safety) management systems.
