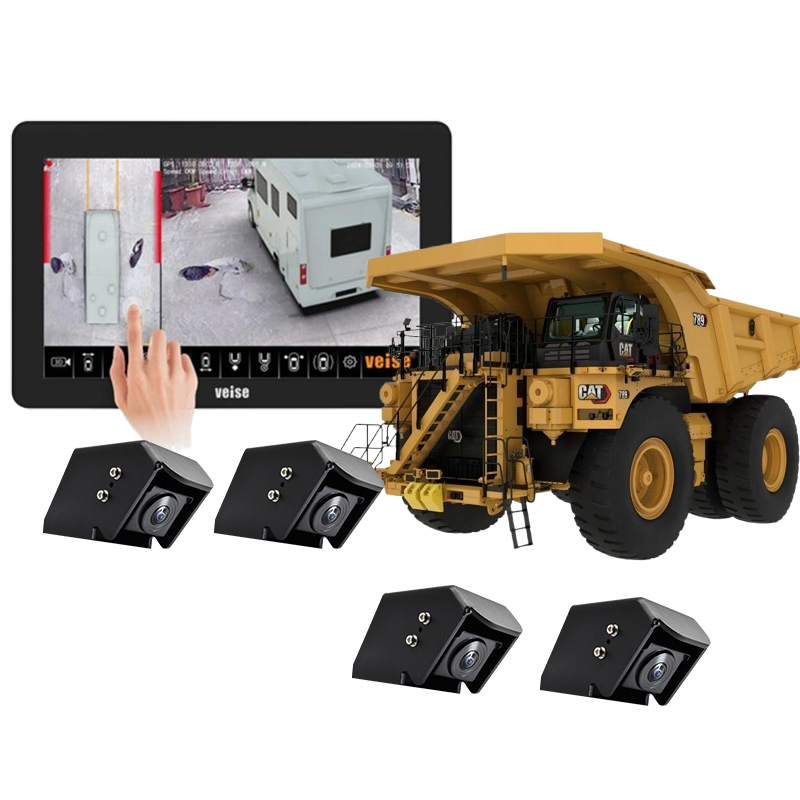

HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
1 / 5
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera
HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera

HD 360 Degree Around View Monitor Integrated System for Vehicle Surround View with DVR and Backup Camera

Customization: Available
After-sales Service: on Line Service
Applicable Model: Car, SUV, Corn Machine, Harvester, Engineering Vehicles, Agricultural Vehicles, Forklift, Escort Car, Sightseeing Car, Truck, RV
Send Inquiry

Product Description

Basic Information
Model NO.
HDS-3D1014HDTP805ZLM4
Screen Size
10.1 inch
Waterproof Grade
IP69
Certification
CE
Warranty
1 Year
Material
Aluminum
Touch Type
Capacitive Touch Screen
Resolution
1024 X 600
Image Modes
2D/3D Free Switching
Detection
4-Channel Blind Spot Detection
Warning
Forward Collision Warning (FWC)
Origin
China
Product Description

3D 1080P 360 Degree AI BSD Truck Camera System

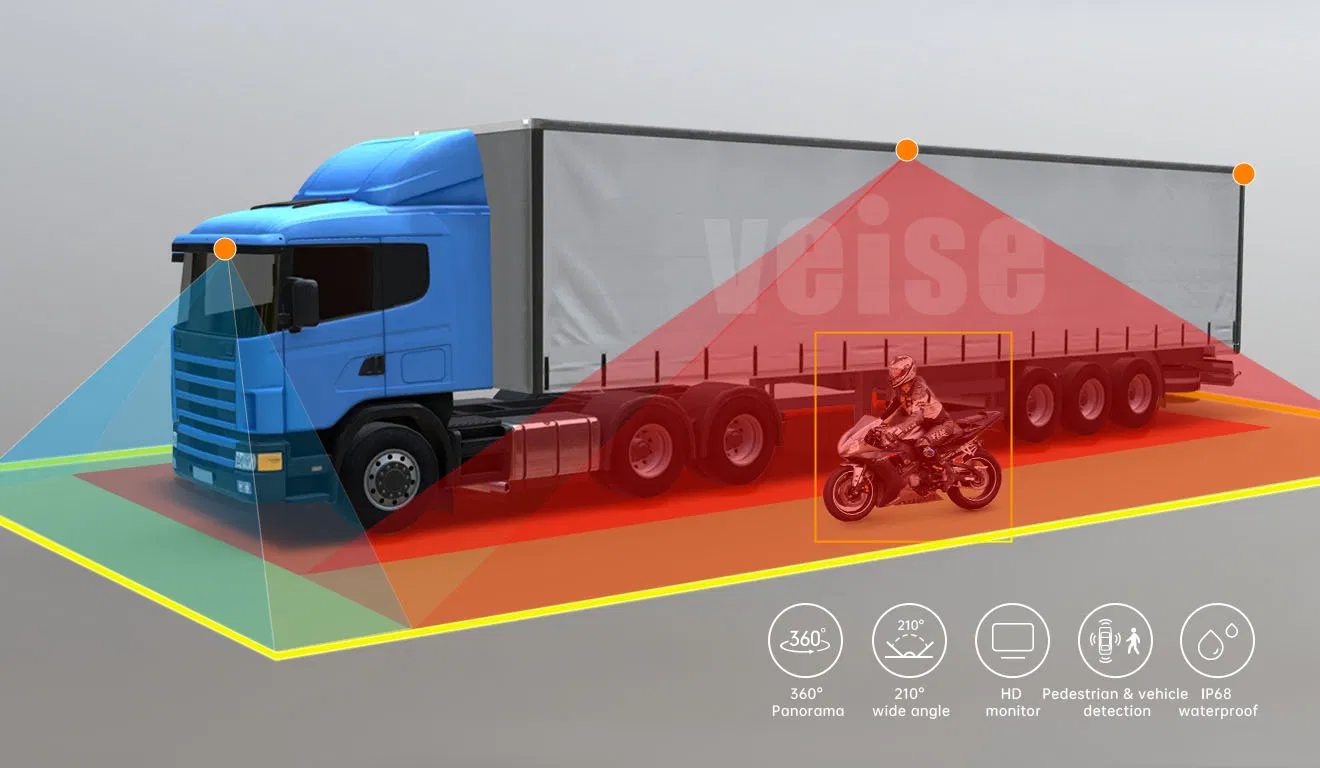

AVM Panoramic Surround View Display Integrated System: This advanced monitor system captures images using four ultra-wide-angle cameras. Special algorithms correct distortion and stitch images to form a seamless panoramic view of the vehicle's surroundings.

  • Intelligent Stitching: Automatic rapid stitching through GPS speed sensors and steering signals to switch between 3D/2D modes.
  • 360° Safety: Detects pedestrians and vehicles around the vehicle, providing blind-spot-free collision prevention.
  • Full Touch Control: High-response capacitive touch screen for simple operation and mode switching.
  • Automatic Alerts: Automatically switches to warning screens when speed is below 25 km/h.
  • Real-time Recording: Supports H265 video format and loop recording on SD card.
Technical Specifications
Feature Details
Operating SystemLINUX
Display10.1 inch IPS (16:9), 600 cd/m² Brightness
Video Input4-channel AHD Panoramic + 4-channel AHD Monitoring
AI Vision Warning360-degree built-in AI vision algorithm
Detection TargetsPedestrians, Non-Motor Vehicles, Vehicle Recognition
Recording Resolution1080P
Operating Temp-20°C to +70°C
VoltageDC 12-36V
Camera AngleHorizontal 210°, Vertical 126°
Camera RatingIP68 Waterproof, 0.01 Lux Low Illumination
Detailed Images

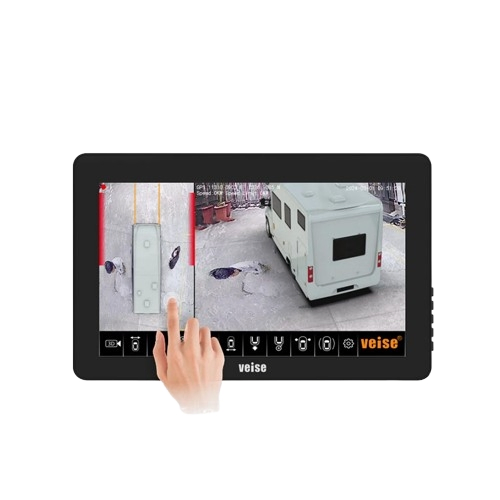

360 Degree Around View Monitor

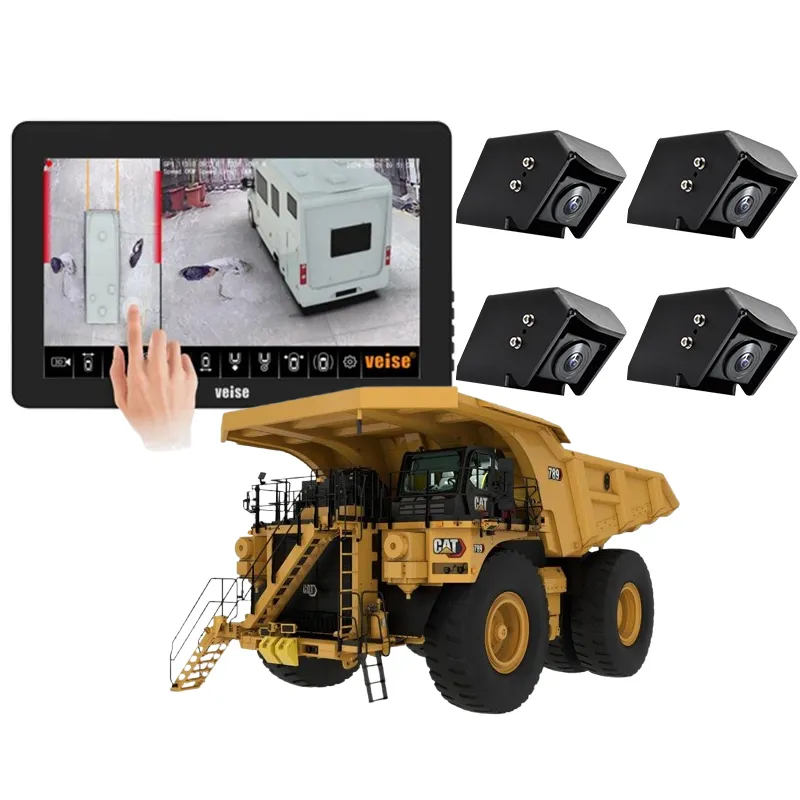

Integrated Camera System
Research & Development & Quality Control

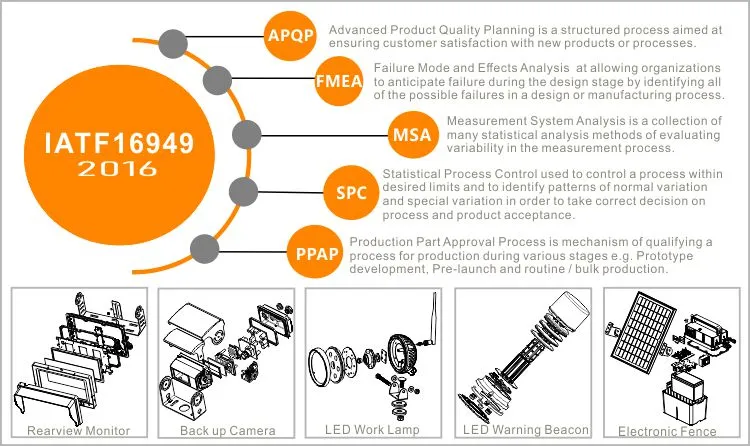

R&D Center

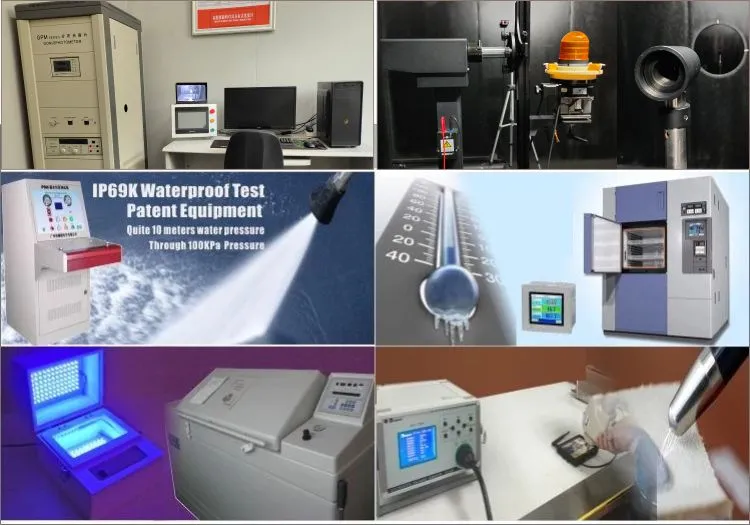

Quality Control Testing

* Sealed pressure tester ensures waterproof level conforms to IP69K.
* Light intensity analyzer ensures output conforms to safety standards.

Production & Certifications
Certifications

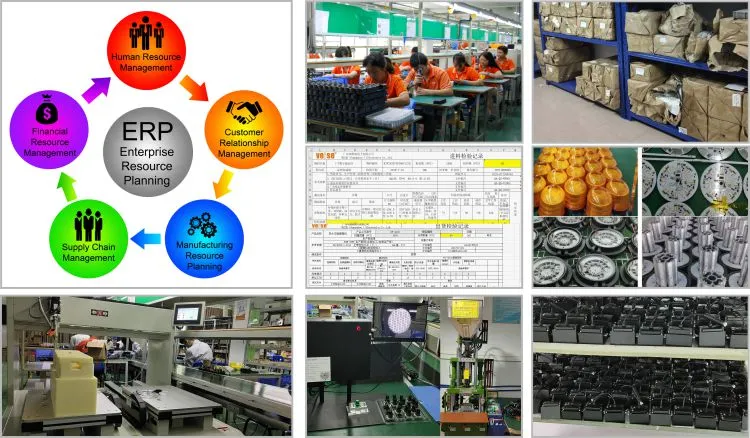

Production ERP System
International Trade Show
Frequently Asked Questions

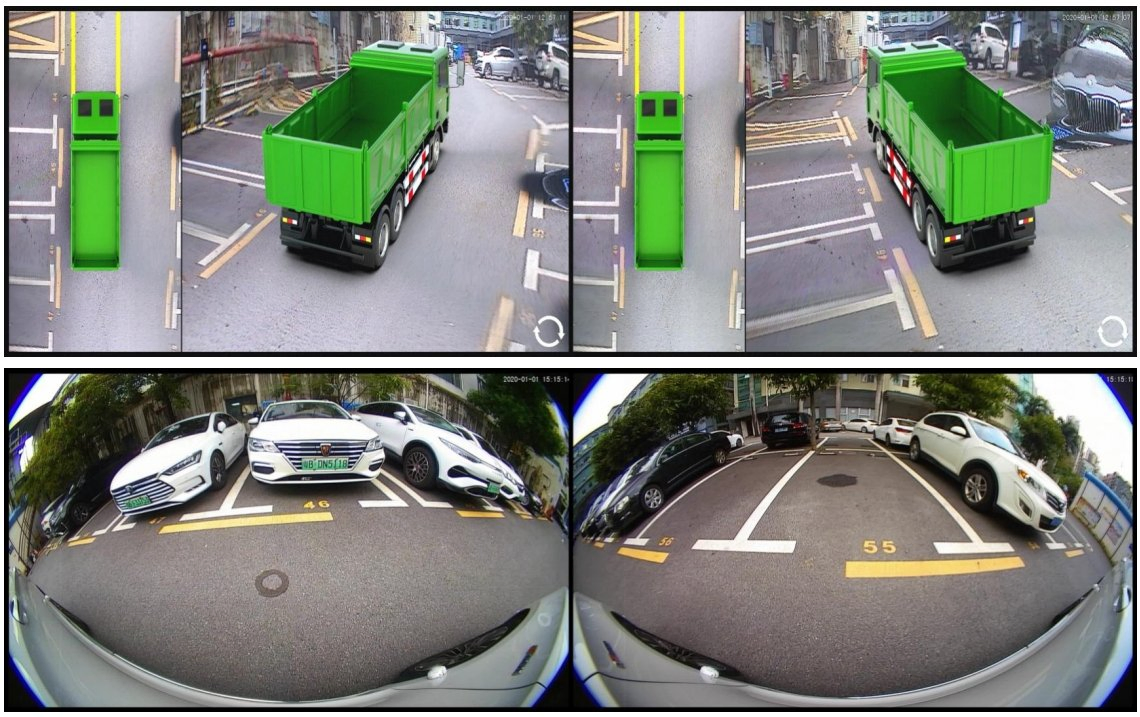

What is the advantage of the 3D Panoramic View?
The 3D mode provides a complete bird's-eye perspective of the vehicle, eliminating all blind spots and making it much easier to navigate tight spaces or park large trucks safely.
Is the camera system waterproof for outdoor use?
Yes, the panoramic cameras feature an IP68/IP69K waterproof rating, designed to withstand high-pressure water jets and extreme weather conditions.
How does the AI Vision Warning work?
The built-in AI algorithm identifies pedestrians and vehicles in real-time. It provides visual and optional audio alerts to the driver to prevent collisions before they occur.
Does this system support night driving?
Absolutely. The cameras feature starlight full-color technology with low illumination (0.01 Lux), and the monitor includes automatic brightness control for clear visibility at night.
What is the maximum storage capacity for recording?
The system uses H265 compression, consuming about 1.25GB per hour at 1080P resolution. It supports SD card storage with loop recording for continuous monitoring.
Can it be installed on any vehicle?
With a wide operating voltage of DC 12V to 36V, the system is compatible with a wide range of vehicles, including trucks, buses, and industrial machinery.
