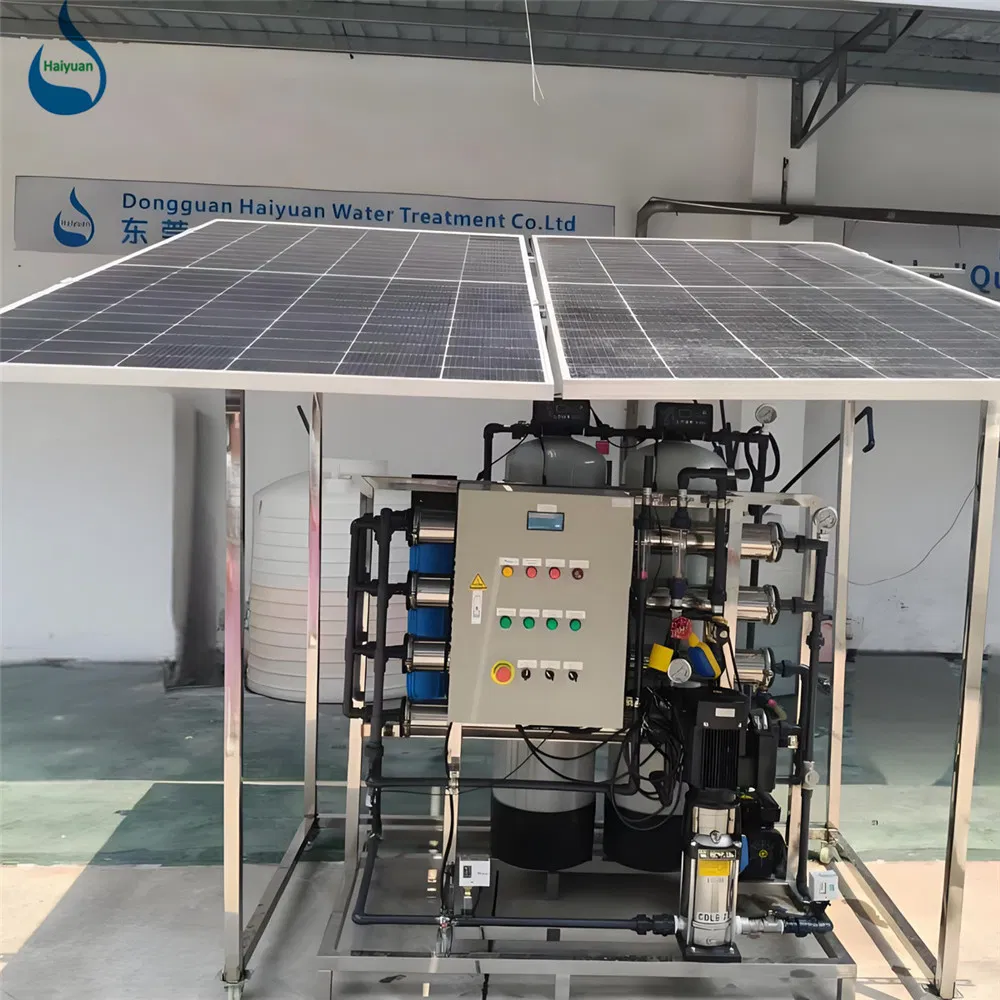

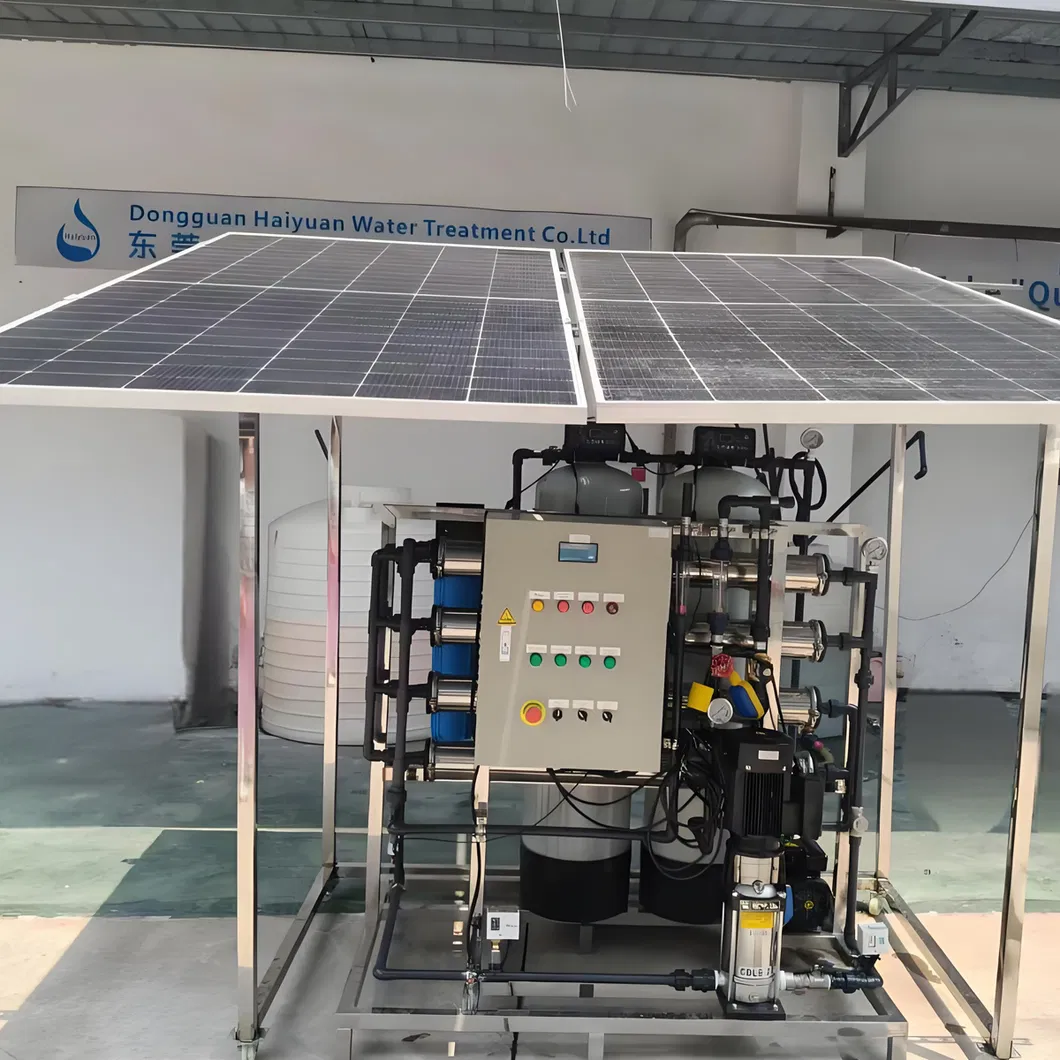

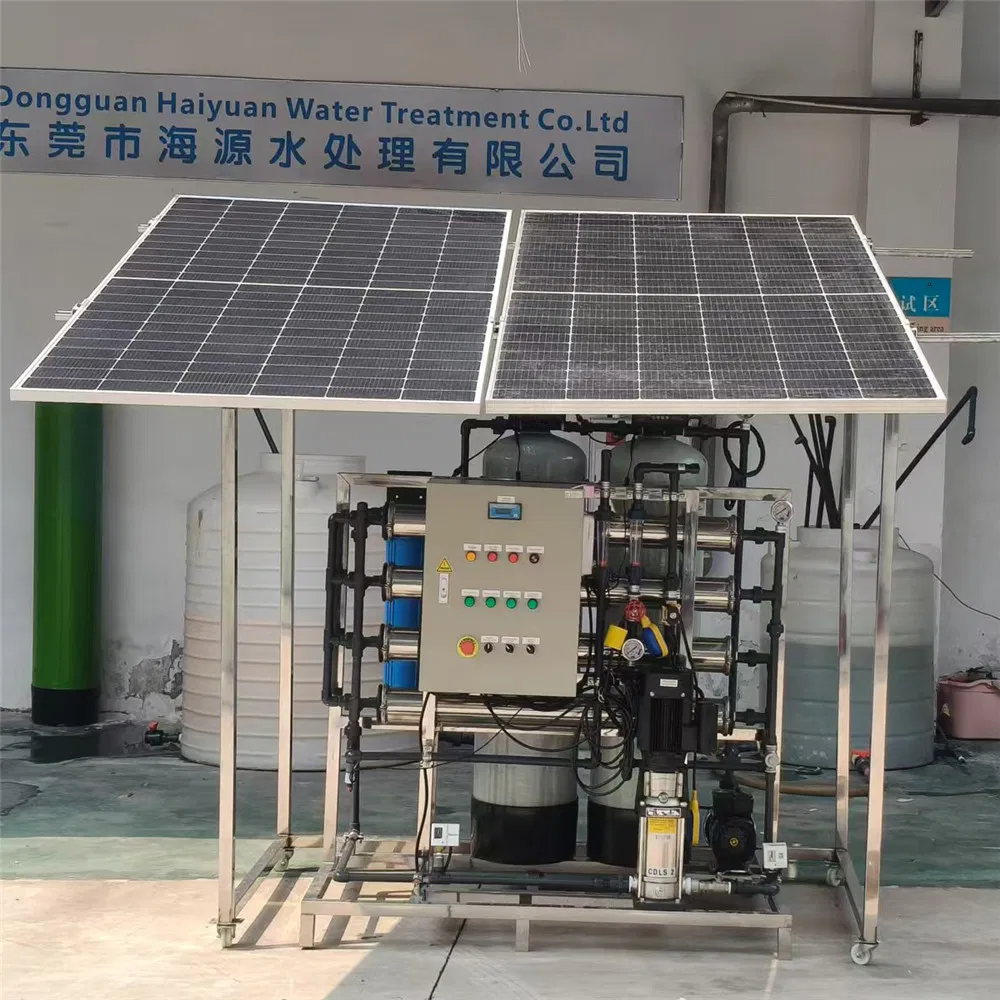

Solar Powered Water Treatment Systems to produce fresh water

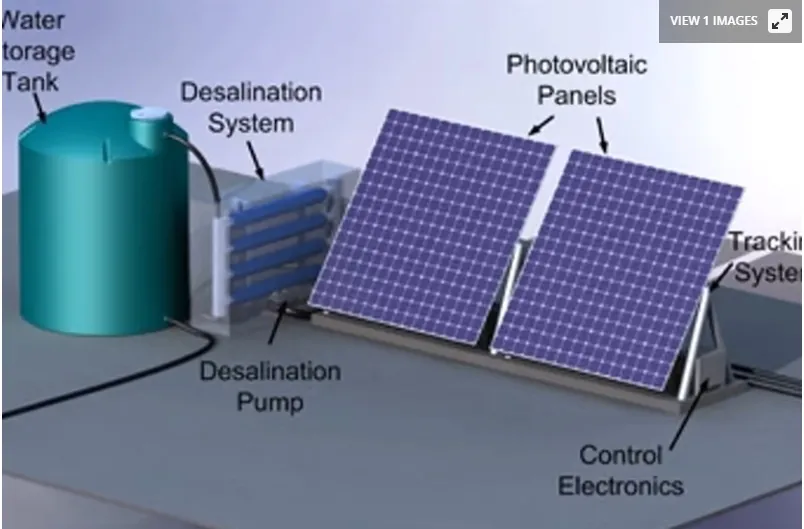

A solar powered reverse osmosis water system is a device that uses solar energy as energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates multiple technical links such as solar heat collection, power conversion and reverse osmosis membrane separation to achieve a green and sustainable process of extracting fresh water.
| HY-1000L/hr Technical Specification | |||
|---|---|---|---|
| Flow rate | 1000L/hr | Recovery rate | 50% |
| Applicable power | 1PH x 220V, 50Hz | Rated power | 1.65KW |
| Solar powered | 35 KW | Inverter | 44KW |
| Solar panel | 14 PCS | Battery | 14PCS, 36KW |
| Output water TDS | <0.6ppm | Operating temp | 5-45ºC |

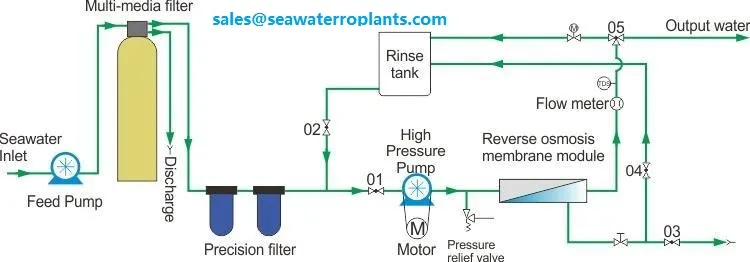

| Stage | Component | Function |
|---|---|---|
| Pre-treatment | Quartz sand filter | Remove suspended particles and impurities |
| Active Carbon Filter | Remove color, free chloride, and organic matter | |
| Anti-scalant system | Prevent membrane blocking | |
| RO Main Part | High pressure pump | Stainless steel 316L, provide pressure |
| Ro membranes | 98%+ desalination rate, removes ions |
Our team specializes in the design, manufacture, and installation of containerized solar-powered water purification and desalination plants. With over 15 years of industry experience, we provide professional solutions integrated with the latest technology. Our core values prioritize quality and service, ensuring our partners receive the most efficient water treatment systems.
The primary benefit is the ability to produce high-quality fresh water in remote areas without access to the electrical grid, while maintaining near-zero energy costs during operation.
Yes, the system is specifically designed for desalination, featuring high-pressure pumps and RO membranes that can achieve a desalination rate of over 98%.
The system includes pre-treatment filters (sand and carbon) and an anti-scalant system to prolong membrane life. A CIP (Clean-In-Place) system is also integrated for periodic washing.

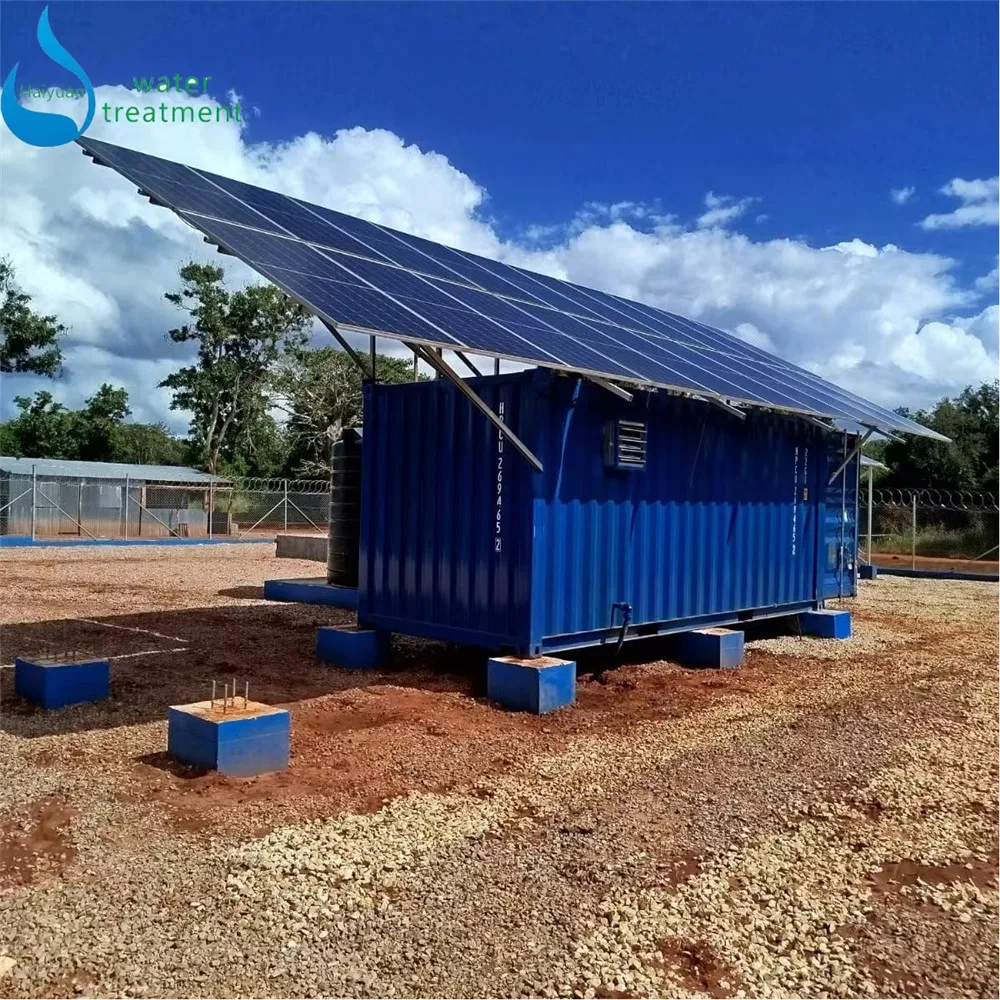

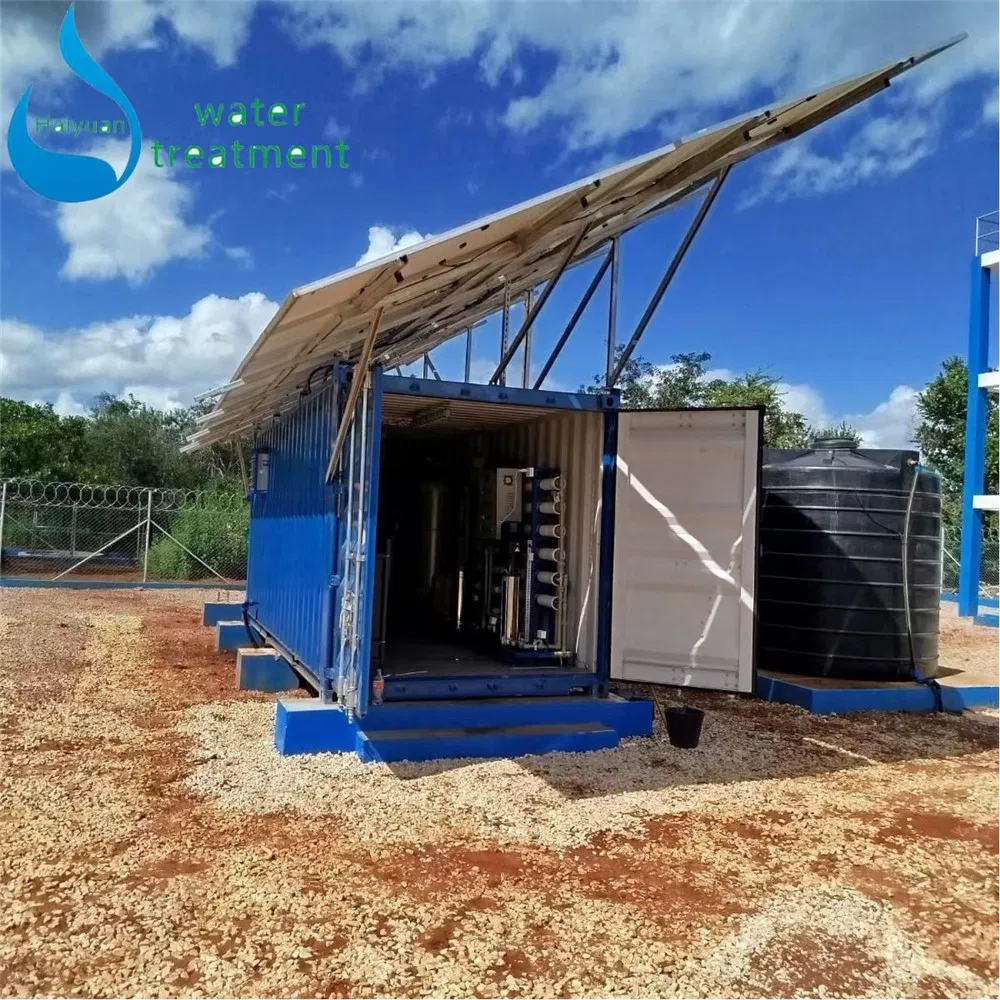

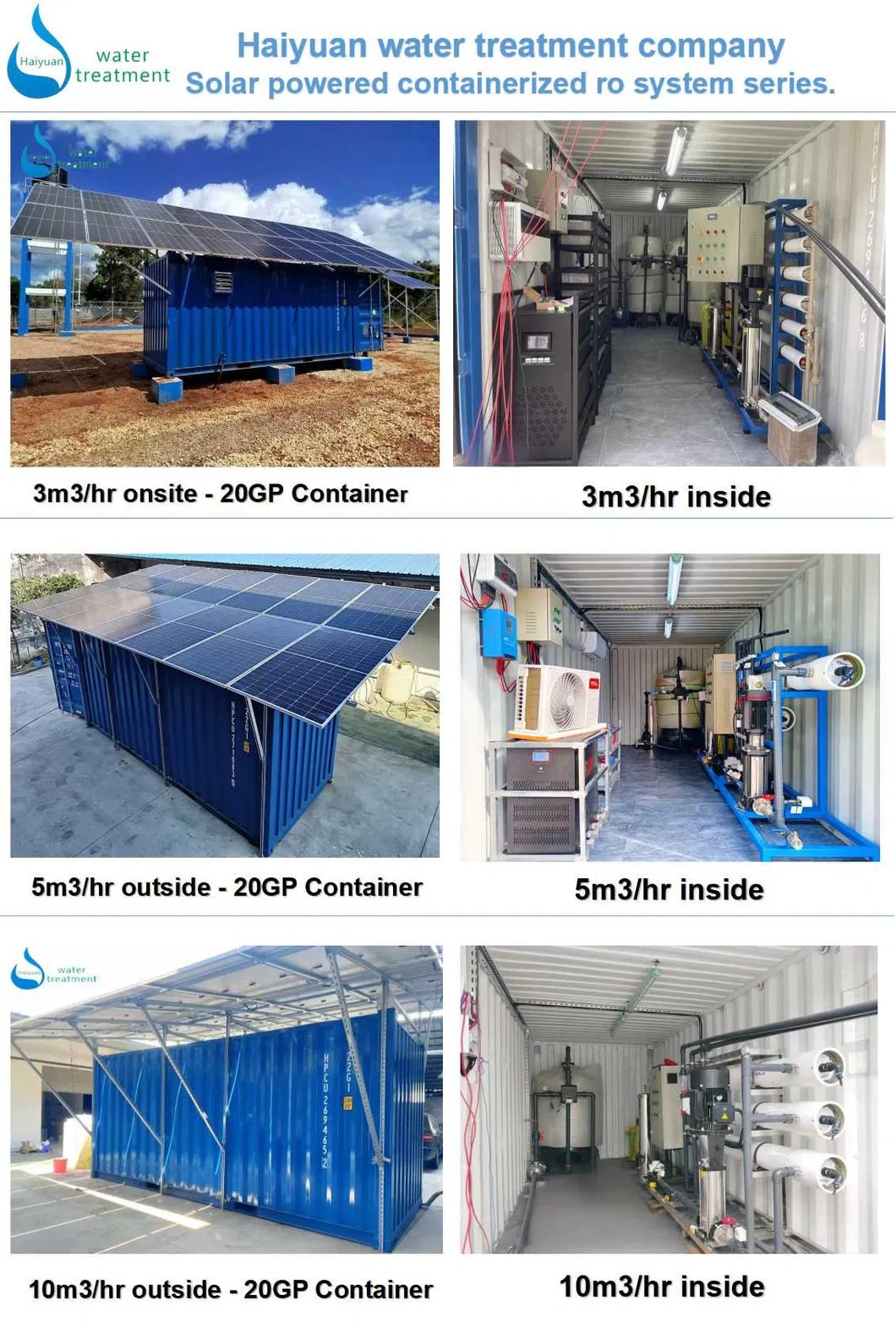

Yes, we offer containerized versions (20GP or 40HGP) which are built to ISO standards, making them easy to ship, space-saving, and simple to install on-site.
The system can be configured with battery storage (e.g., our 14PCS 36KW battery setup) to ensure continued operation or to provide water during non-sunny periods.
We provide professional installation instructions, remote online video guidance, and 24/7 technical support to assist with any operational issues.
