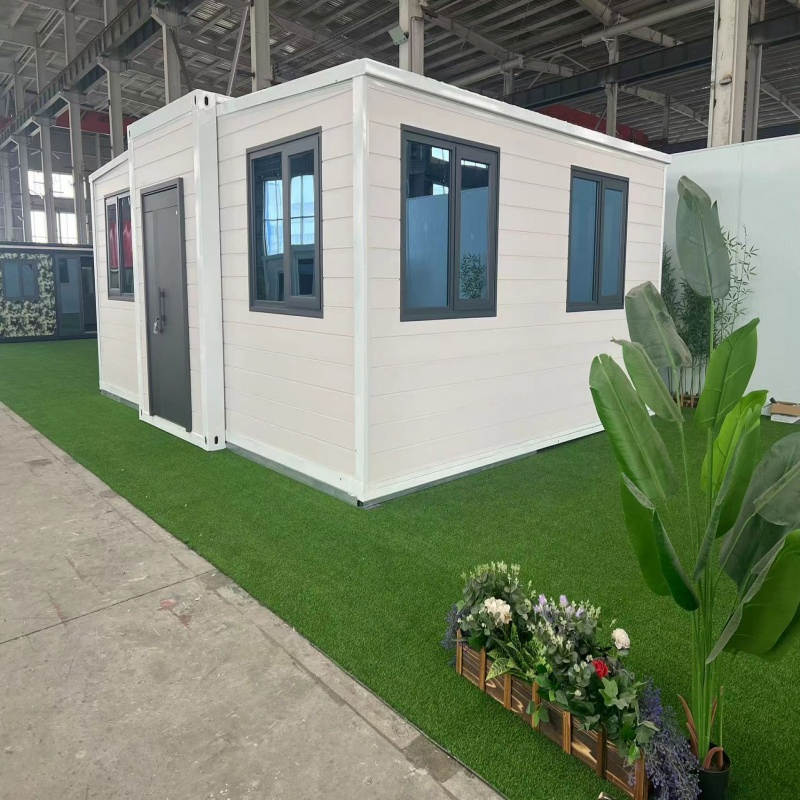

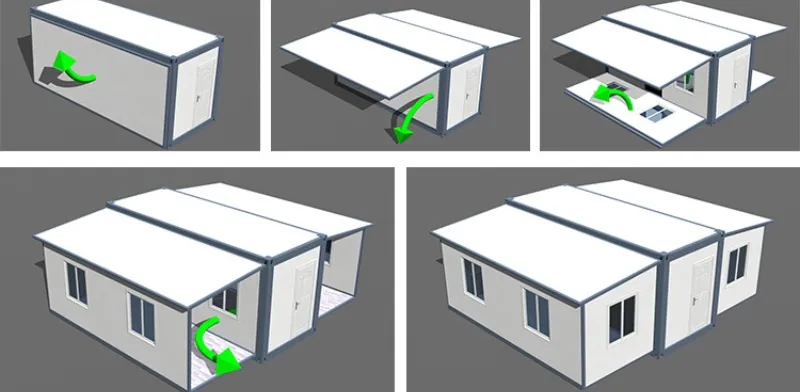

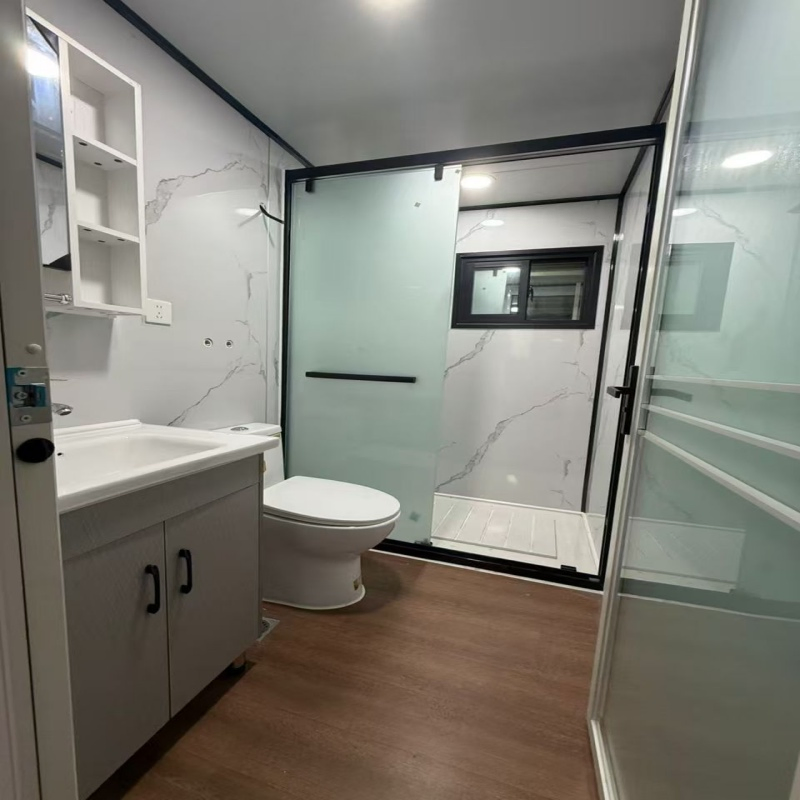

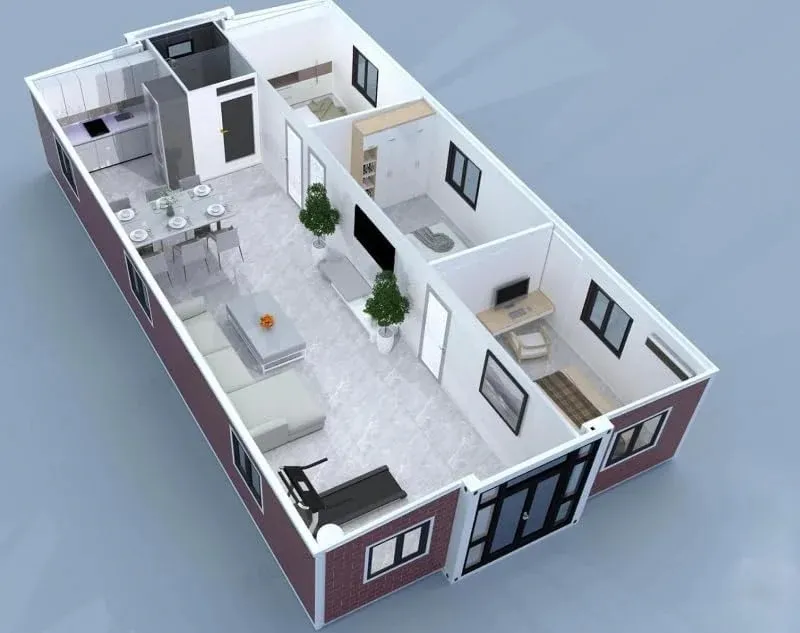

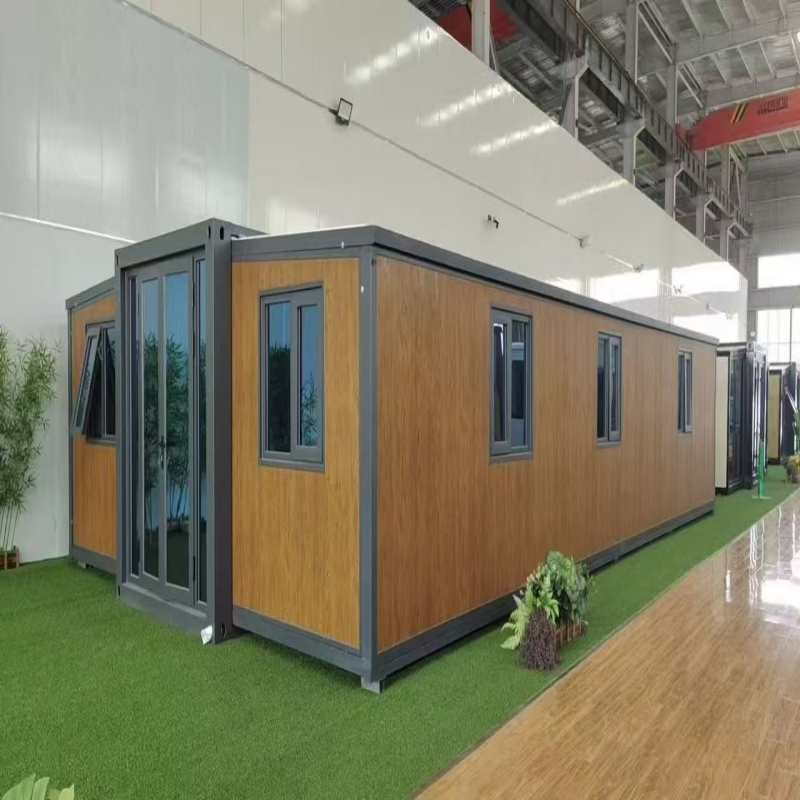

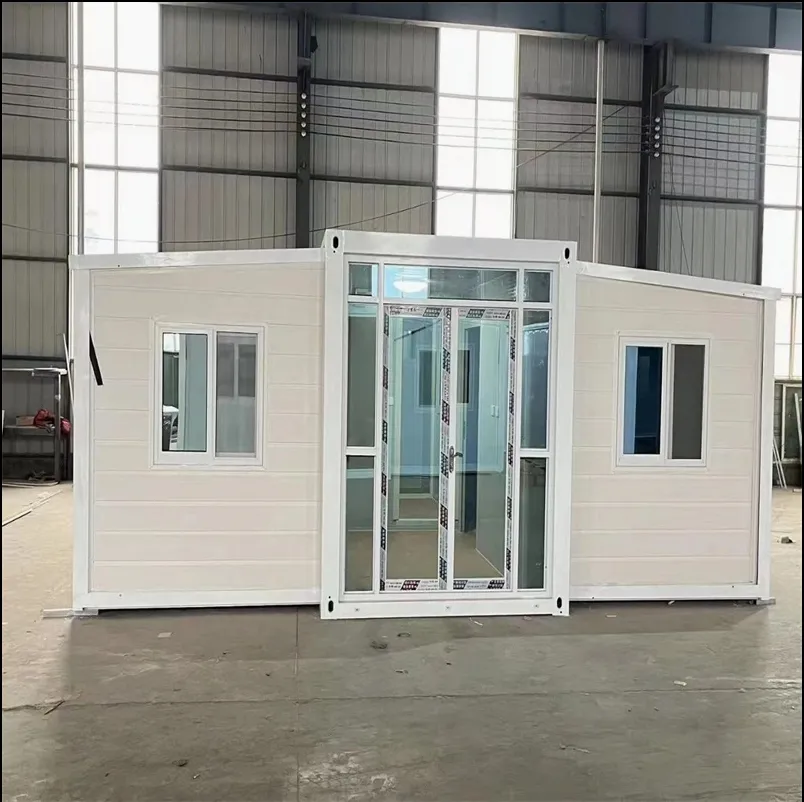

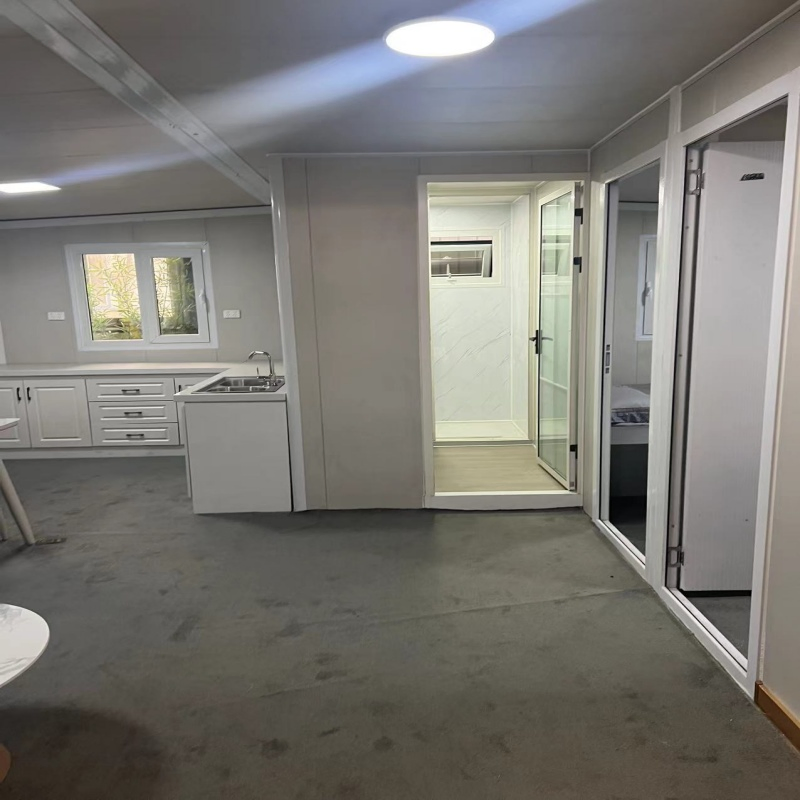

The expandable container house is the latest innovation in modular housing, requiring no specialized tools for a setup that can be completed within 5 minutes. We offer two primary designs: an empty versatile layout suitable for dormitories or wedding rooms, and a functional two-bedroom, one-bathroom configuration. The sanitary ware and partition walls are pre-installed, ensuring the house is ready for use shortly after opening. Comprehensive video guides and installation manuals are provided to ensure a smooth assembly process by skilled workers.
| No. | Component | Specification Details |
|---|---|---|
| 1 | Top frame main beam | 3.0 Bending crossbeam |
| 2 | Top frame secondary beam | 40*60*1.5 galvanized square tube |
| 3 | Bottom frame main beam | 3.0 Bending crossbeam |
| 4 | Bottom frame secondary beam | 80*80*2.0 galvanized square tube |
| 5 | Flip bottom frame | 2.0 bending parts + 40*60*1.5 square tubes |
| 6 | Flip Wall/Top Frame | 2.0 Bending parts |
| 9 | Top insulation | 75mm glass wool with steel wire mesh |
| 10 | Bottom insulation | 0.3mm profiled veneer + 75mm glass fiber cotton |
| 11 | Ground | 18mm calcium silicate board + 1.6mm floor adhesive |
| 12 | Steel doors | 50 socket steel door * 2 sets |
| 14 | Hollow window | Aluminum alloy hollow sliding windows * 6 sets |
| 15 | Wall panels | 0.3/75mm EPS wall panel |
These houses are widely utilized for offices, conference rooms, dormitories, shops, and kitchens. The layout is 5900mm*6300mm*2480mm using EPS/Rock wool sandwich panels. A team of 6 workers can complete the installation of one unit in just 2 hours. The units support stacking up to 3 floors and feature a total-sealed-top and corner-draining system to prevent leakage.
