| Model NO. | Customized | Medium Material | Customized |
|---|---|---|---|
| Efficiency | F9 | Filtration Grade | HEPA Filter |
| Type | Active Carbon | Material | Carbon Steel, Fiberglass, Stainless Steel |
| Size | Customized | Filtering Effect | 90% |
| Production Capacity | 500,000 Pieces/Year | ||

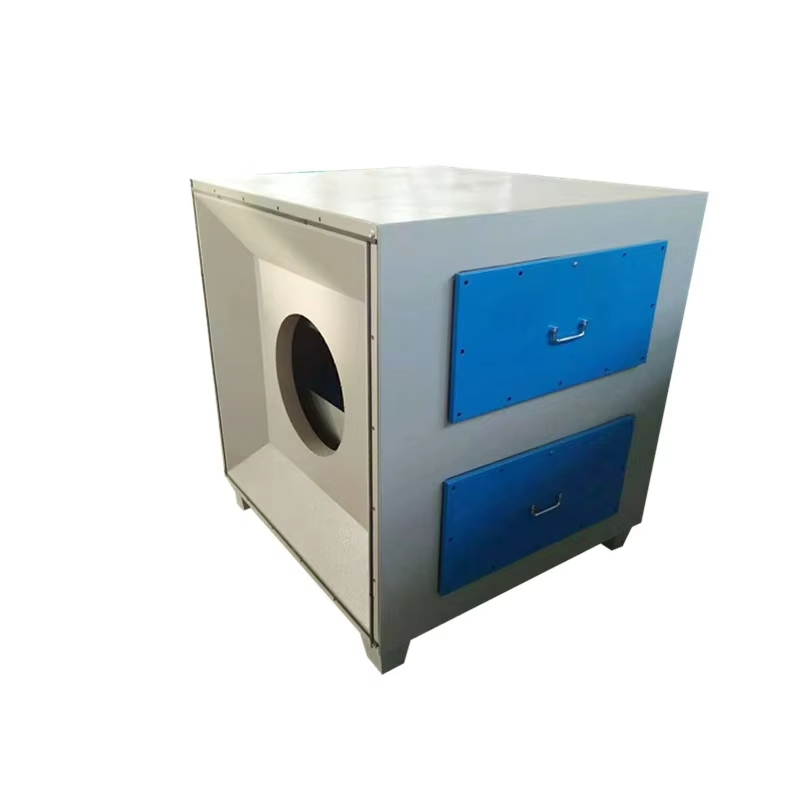

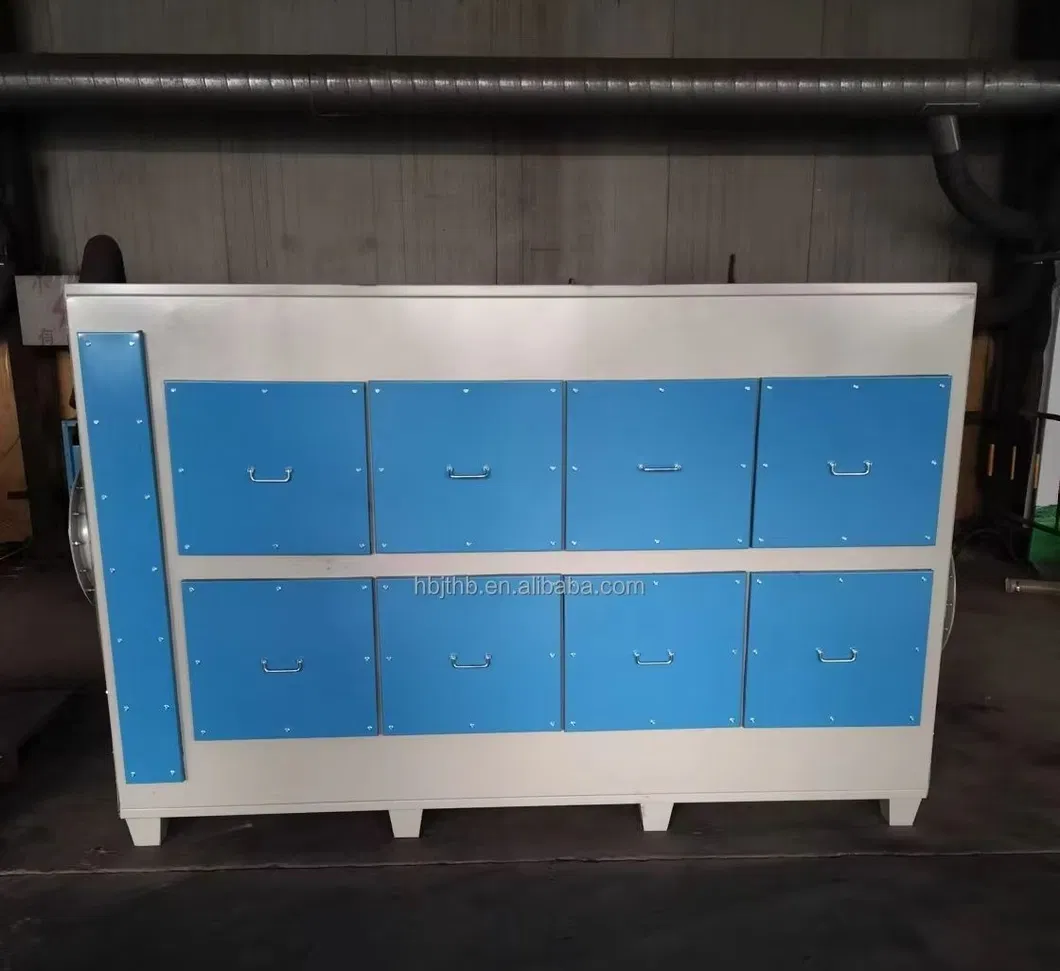

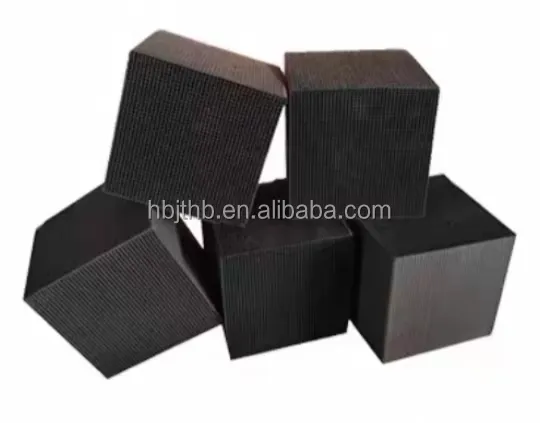

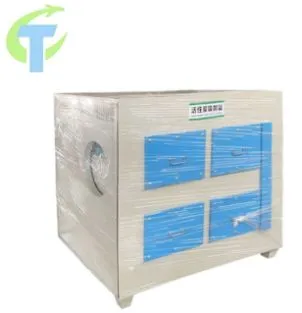

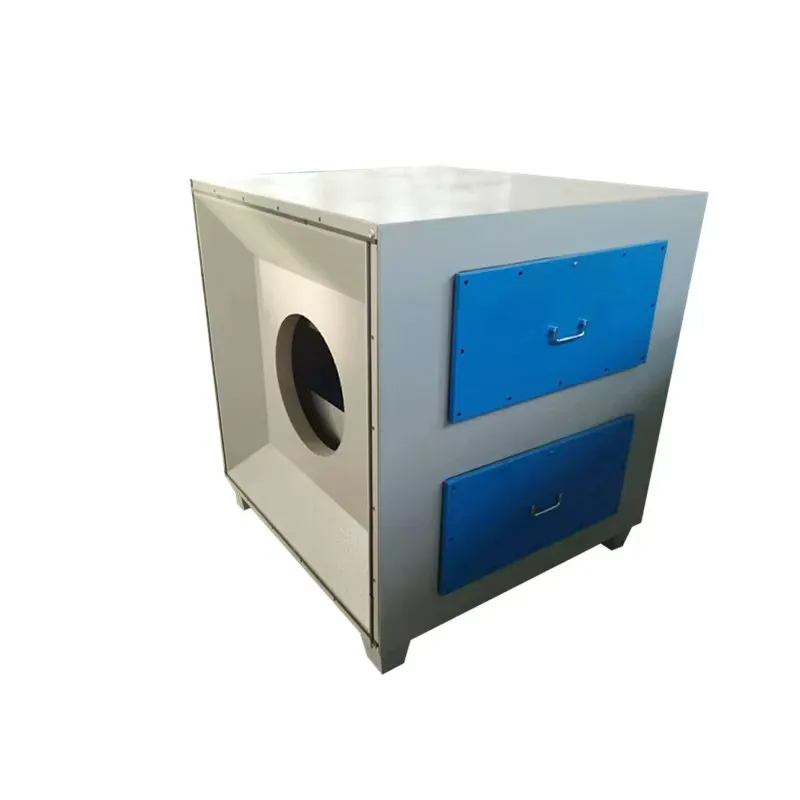

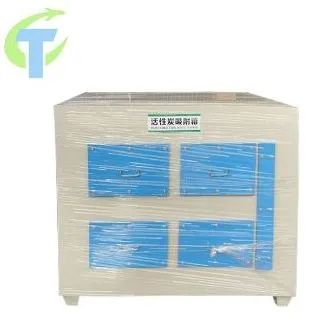

The Activated Carbon Adsorption Chamber is an advanced air treatment device designed to remove hazardous pollutants, odors, and volatile organic compounds (VOCs) from industrial exhaust streams through physical and chemical adsorption processes. Utilizing high-quality activated carbon with a microporous structure and exceptional surface area (500-1500 m²/g), this system achieves efficient contaminant capture while ensuring compliance with environmental regulations.
| Feature | Specification |
|---|---|
| Air volume | 5000-25000m³/H (customizable) |
| Carbon Bed Depth | 300-1000 mm |
| Contact Time | 0.5-2.5 seconds |
| Operating Temp | < 40°C (standard) / < 120°C (high-temp models) |
| Pressure Drop | 200-800 Pa |
| Regeneration | Steam/thermal options for extended service life |
Structural Features:
