| Model NO. | CT9 PRO |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |
| Product | Access Control Terminal with Reader |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional Qr Code |
| RFID Card | 13.56MHz 125kHz |
| Mobile Credential | NFC, BLE |
| Qr Code | Qr Code, Barcode |

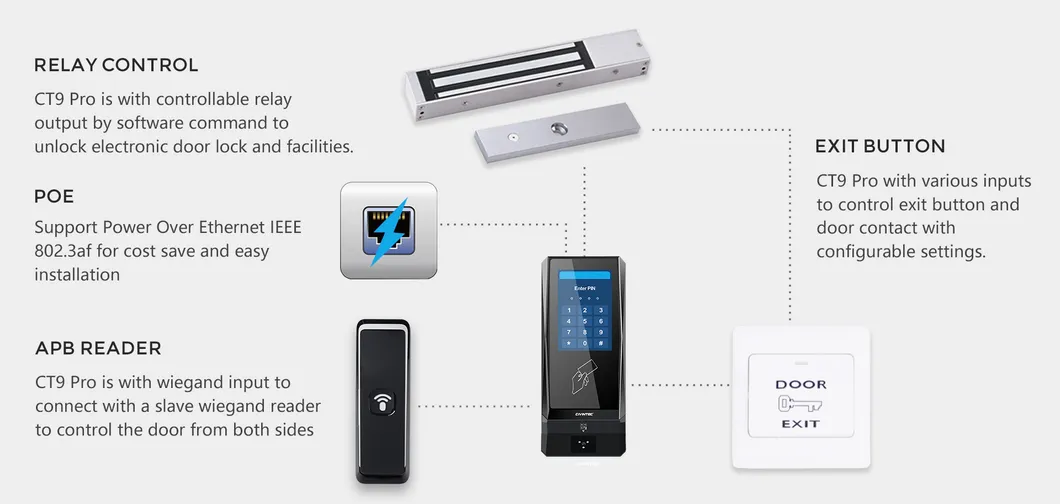

| Output | 1~2 Relay |
| Interfaces | 4G, WiFi, TCP/IP, RS485 Osdp, Wiegand |
| IP Protection | IP65 Waterproof, UV Resistance |
| Certification | CE, FCC |

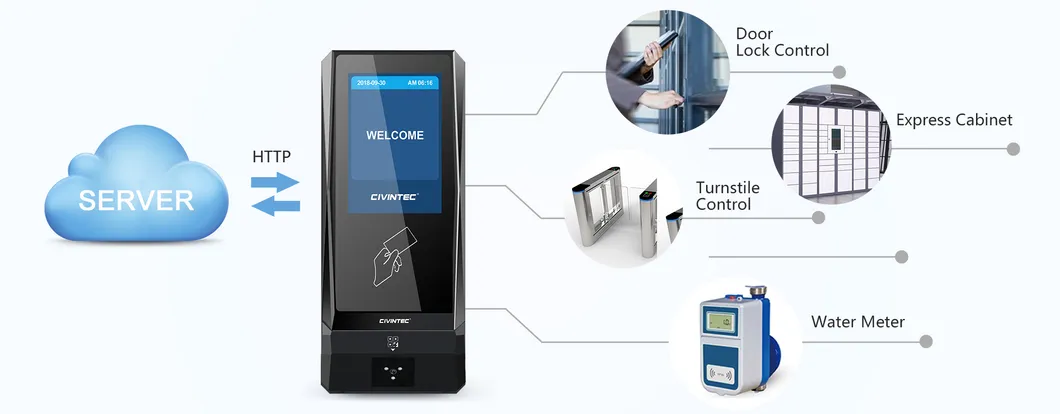

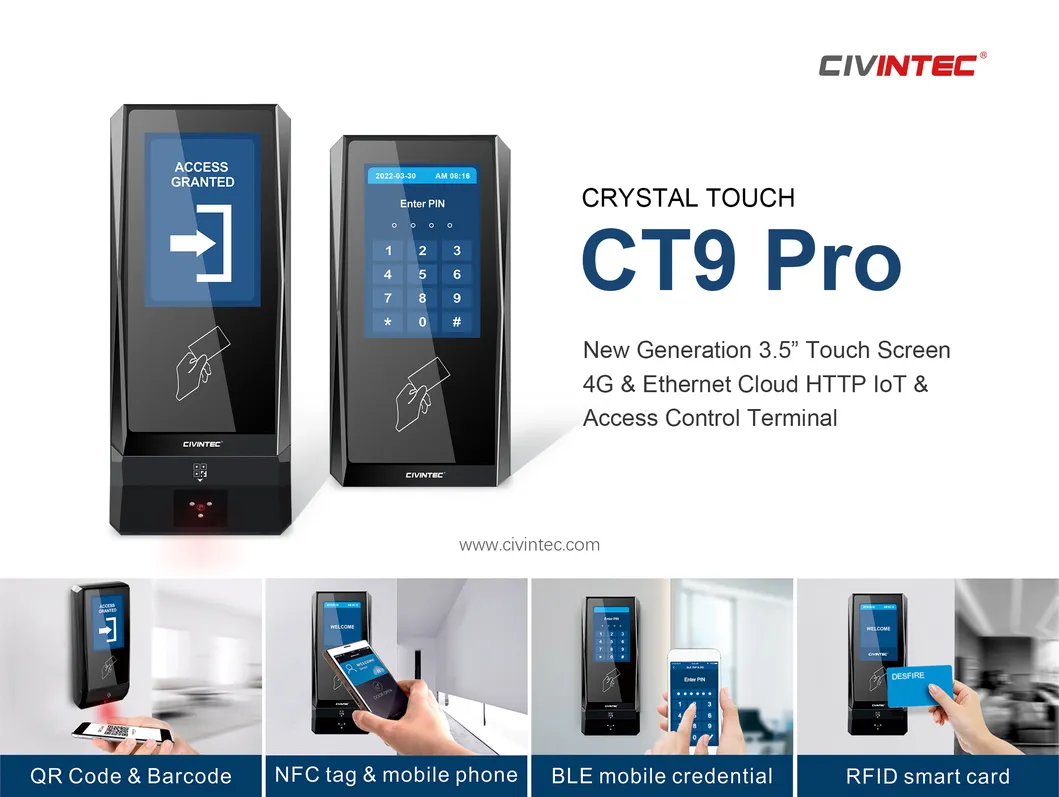

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions.

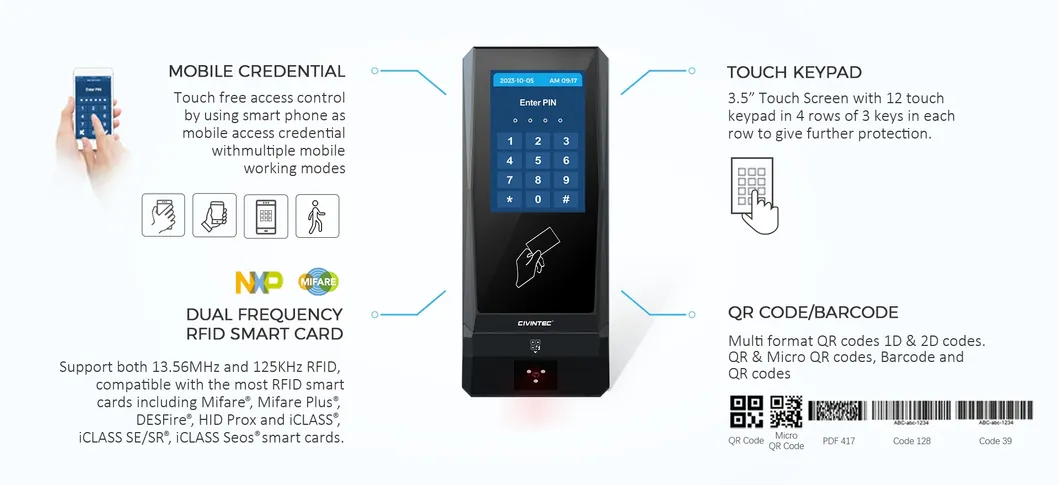

It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using mobile phone.

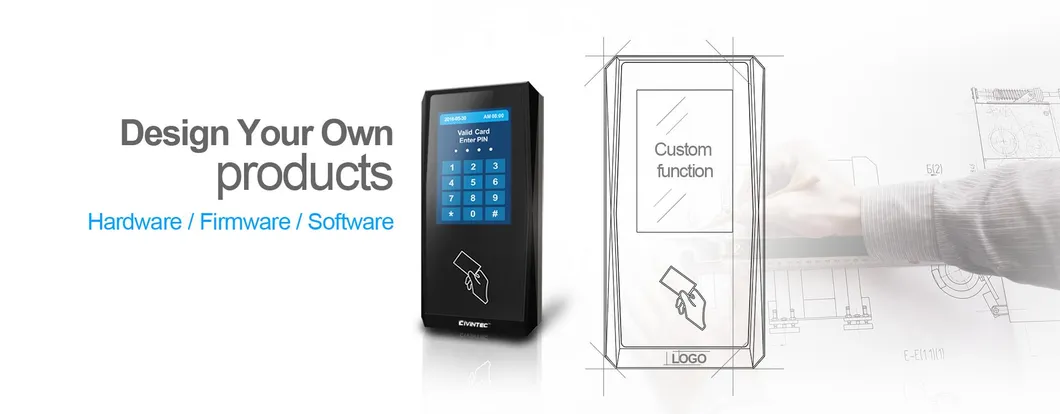

We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
