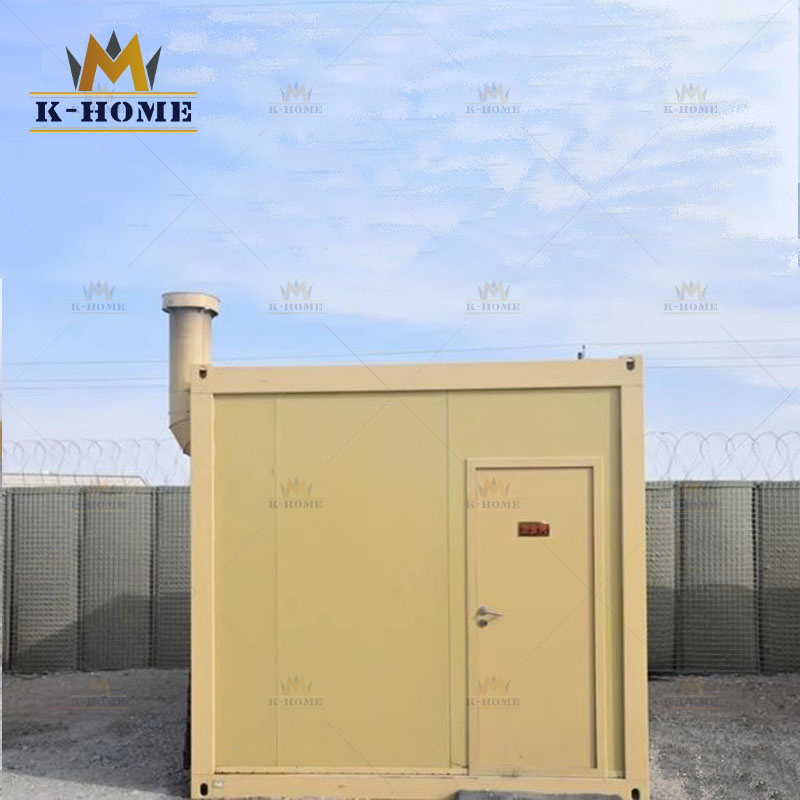

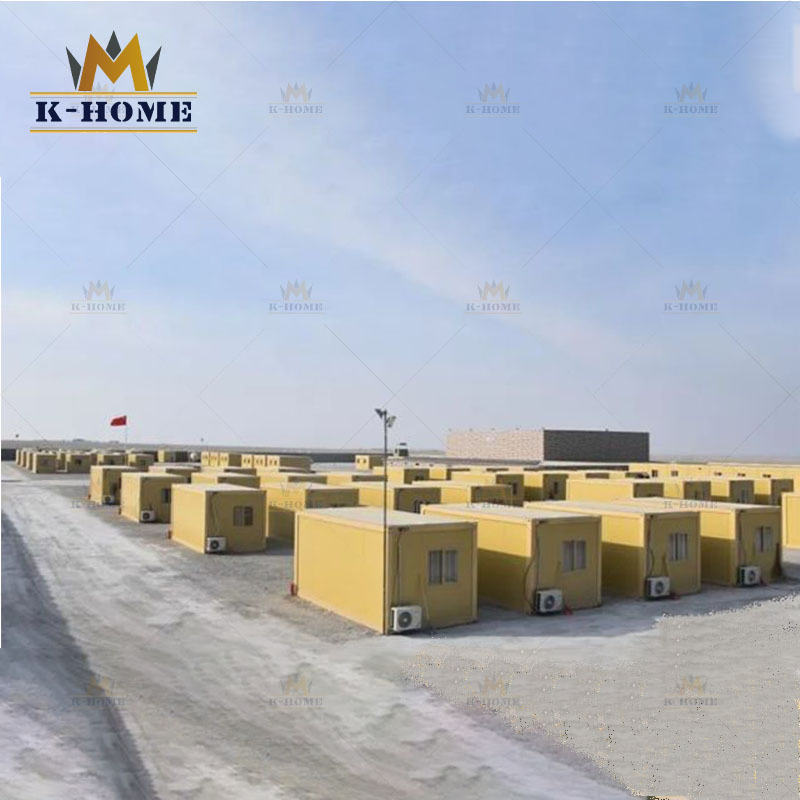

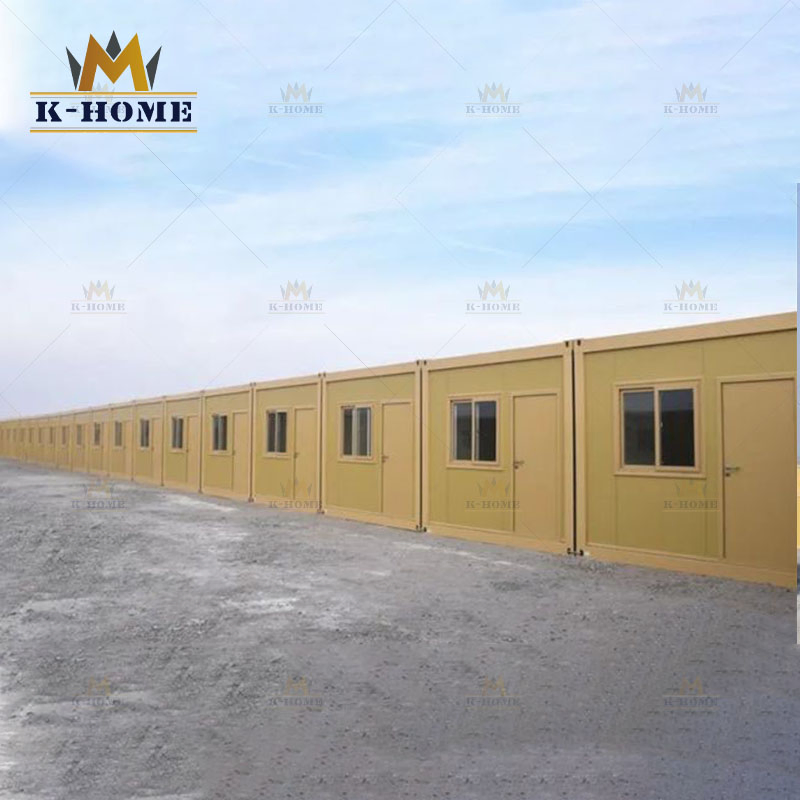

Casas Prefabricadas Containerized Modular Units

Customization: Available
Fast Installation: Fast Installation
Feature: Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance

Product Description

Basic Information
Model NO.:KHCD
Material:Sandwich Panel, Steel Structure
Service:Installation Guide
Color:Blue
Size:20FT/40FT
Wall Material:Rock Wool Sandwich Panel
Steel Frame:3mm Steel
Wall Panel:60mm EPS/Rockwool/PU Sandwich Panel
Door:Steel Door/Sandwich Panel Door
Connection:Screws, Bolts
Floor:Vinyl Sheet on Plywood or MGO Board
Warranty:1 Year
Usage:Dormitories, Camp, School, Hospital, Offices
Certification:CE, ISO
Capacity:800PCS/Month
HS Code:9406900090
Product Description
These Containerized Modular Units feature a bolt connection structure. The frame is constructed from high-quality special steel plates. Side panels are equipped with specialized sound and heat insulation fillers, providing excellent thermal regulation, noise reduction, cold protection, and fire prevention. The structure is non-combustible, non-mold, and highly durable with a structural life expectancy of up to 70 years. Galvanized or sanding paint finishes significantly enhance corrosion resistance, ensuring a service life for the prefab rooms of over 30 years.
⚙️
Our modular design is fully customizable to suit various purposes. They are ideal for remote camps, engineering offices, portable toilets, and temporary schools. The flexible assembly method allows for personalized configurations, and users can select different building decoration materials for both interior and exterior enclosure structures.

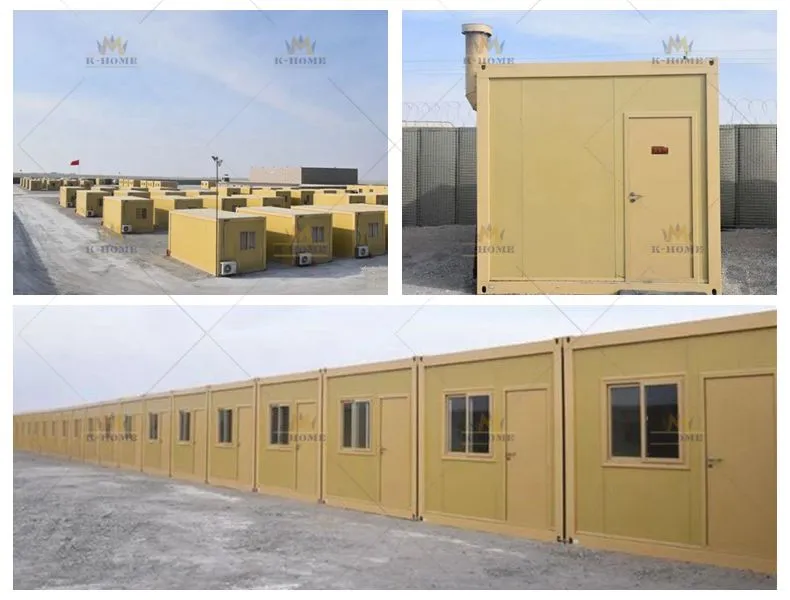

Containerized Modular Units
Key Characters
✅ Excellent assembly and disassembly capability without damage.
✅ Can be lifted, fixed, and combined freely for custom layouts.
✅ Superior fireproof and waterproof performance.
✅ Cost-saving and efficient transportation (4 units fit in one standard container).
✅ Long service life of 15 - 20 years for standard configurations.
✅ Available on-site installation, supervision, and training services.

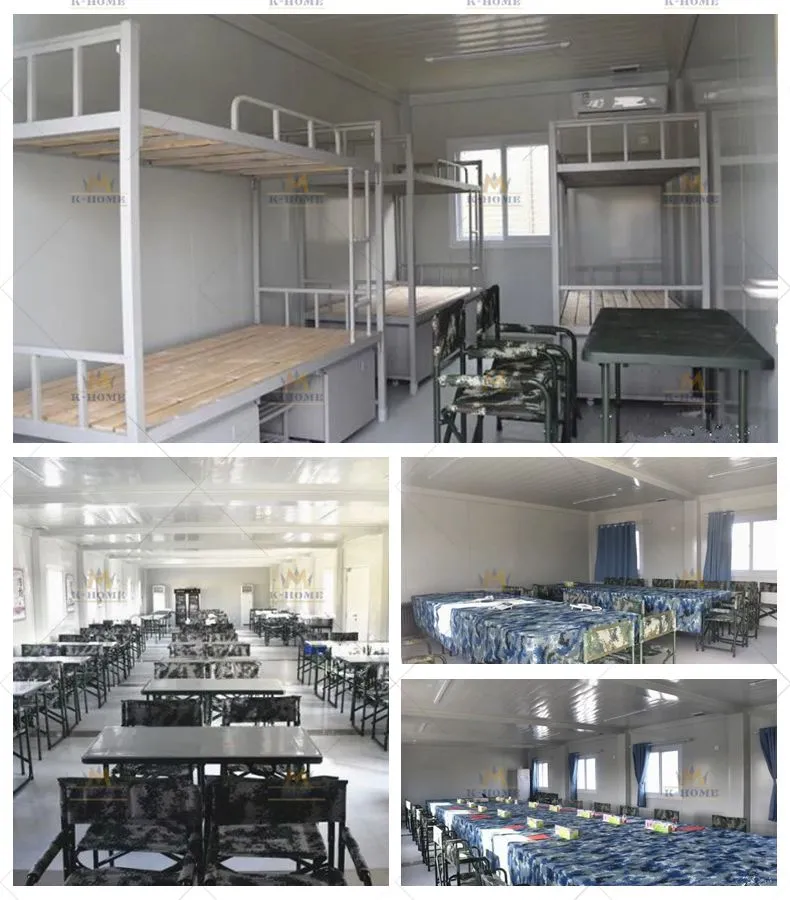

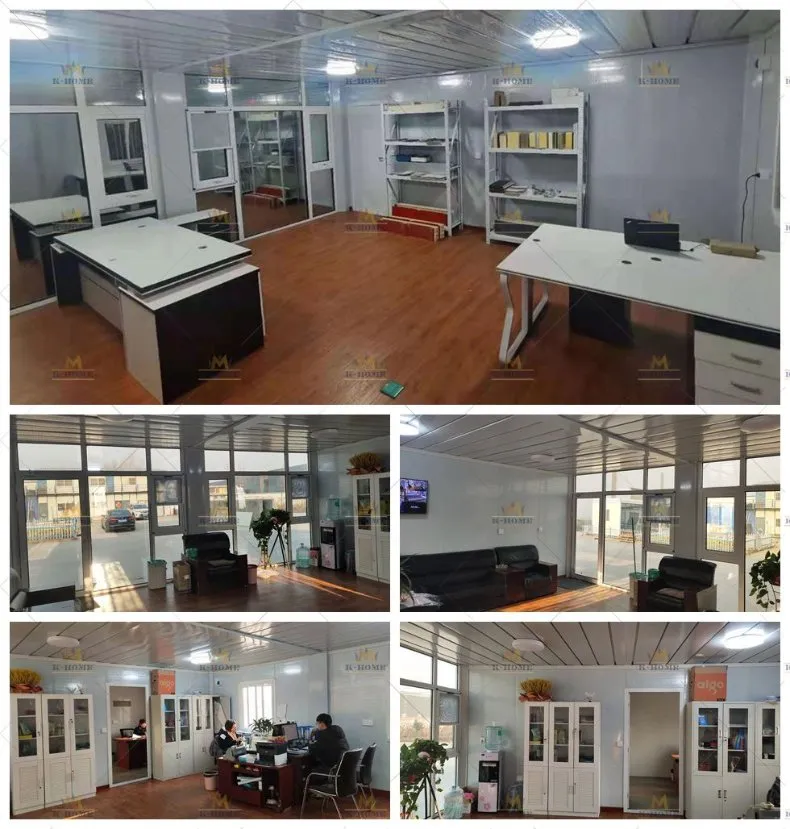

Structural Detail Modular Assembly
Technical Parameters
Parameter Standard Value
Wind ResistanceGrade 12
Wall Permitted Loading0.6KN/ m2
Ceiling Permitted Live Loading0.5 KN/m2
Wall Thermal ConductivityK=0.442W/mk
Ceiling Thermal ConductivityK=0.55W/ m2K

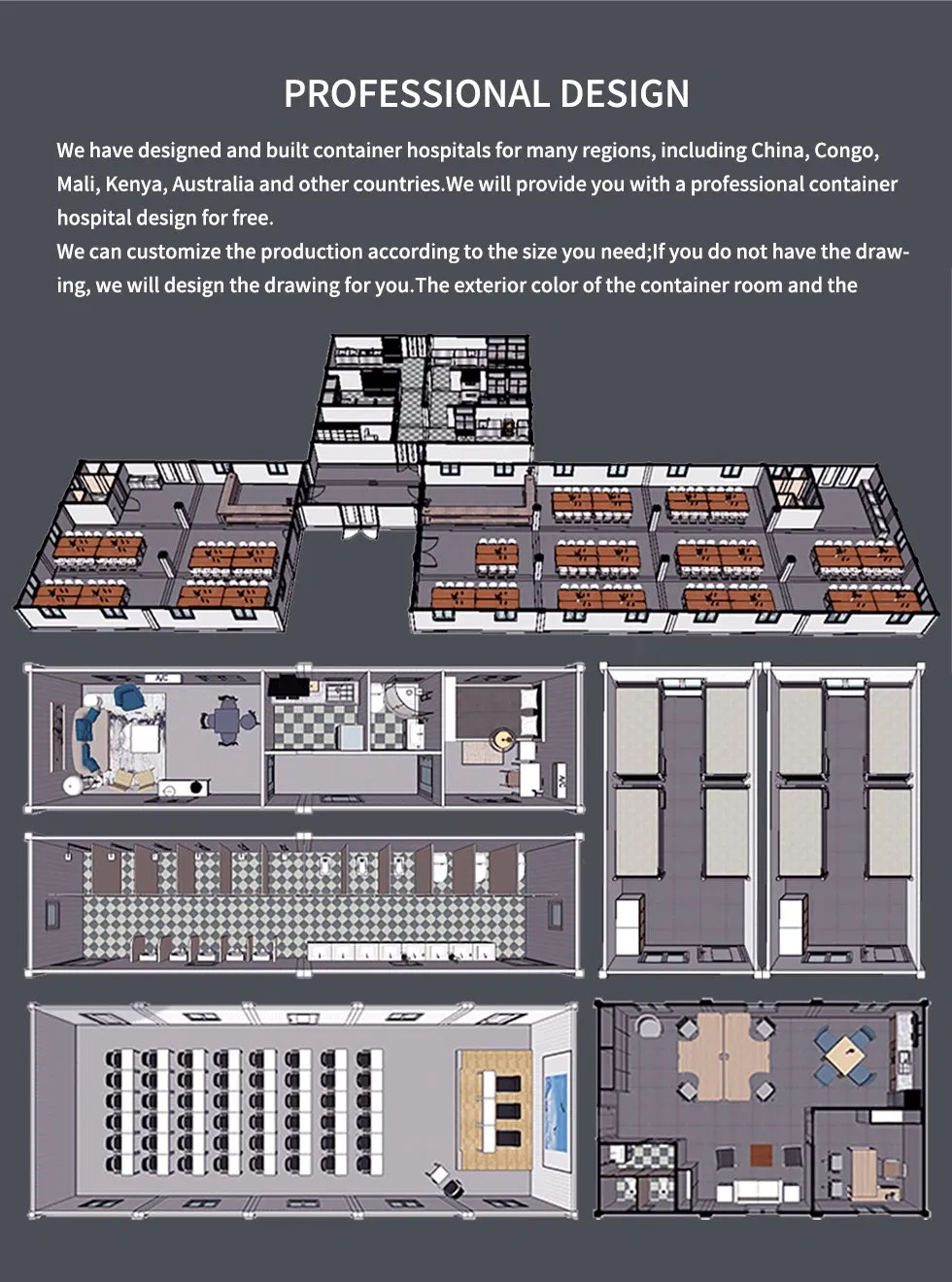

Technical Specifications Diagram
Detailed Specifications
Part System Detailed Specification
Part 1 Roof System Q235 galvanized fitting; 0.4mm blue pre-coated steel; 50mm glass wool insulation; Patterned shaped steel ceiling.
Part 2 Floor System 3mm Galvanized main structure + 1.5mm secondary beam; 15mm chipboard + PVC leather floor.
Part 3 Column System 2.5mm Shaped Galvanized Steel.
Part 4 Wall System 50mm EPS Foam Sandwich Panel; Light silver gray outside (0.35mm); White inside (0.35mm).
Part 5 Door & Window Steel door (2000*980mm); Aluminum alloy double hollow glass sliding window (1200*1000mm) with screens.
Part 6 Electric System LED lights, double sockets (2 sets), air-switch (2 sets), electrical box with safety protection.
Part 7 Accessories Electric wire; Sealant; Wiring tube; Screws and other necessary fittings.

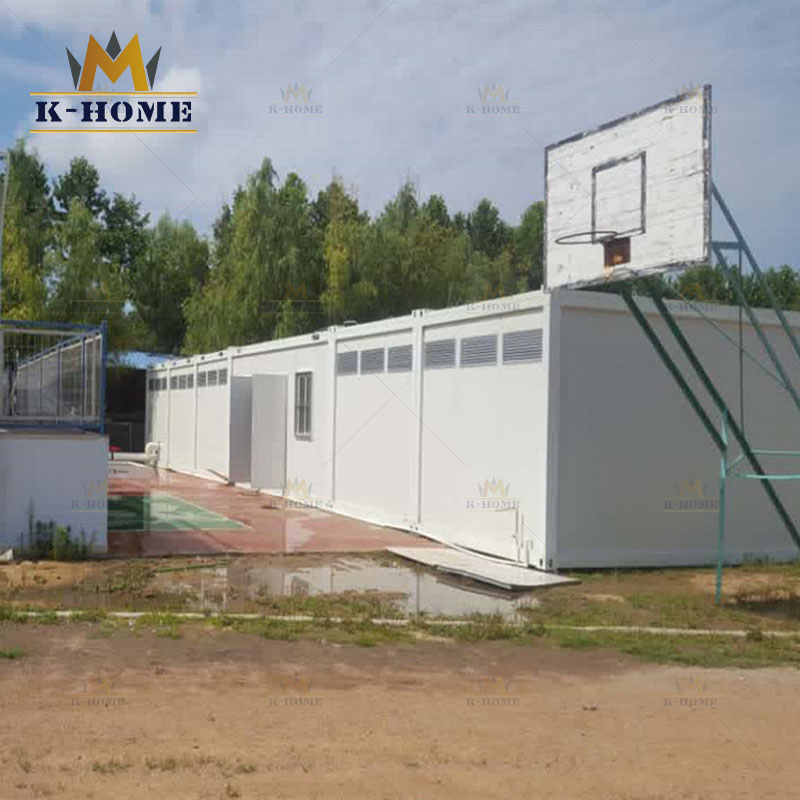

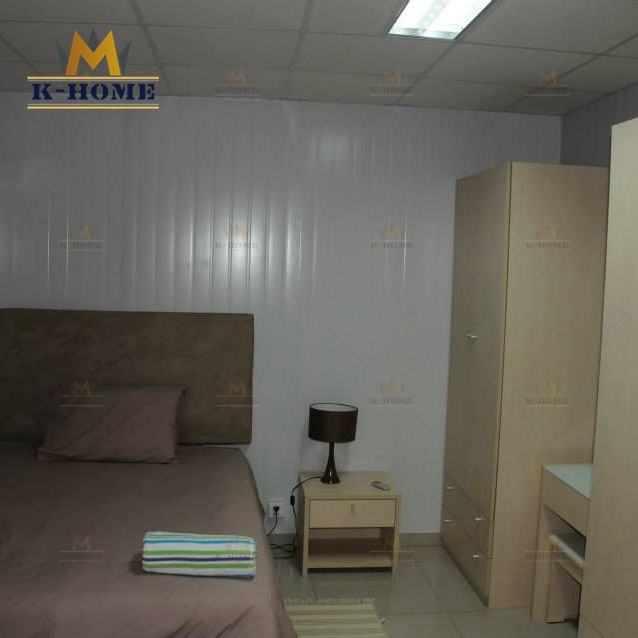

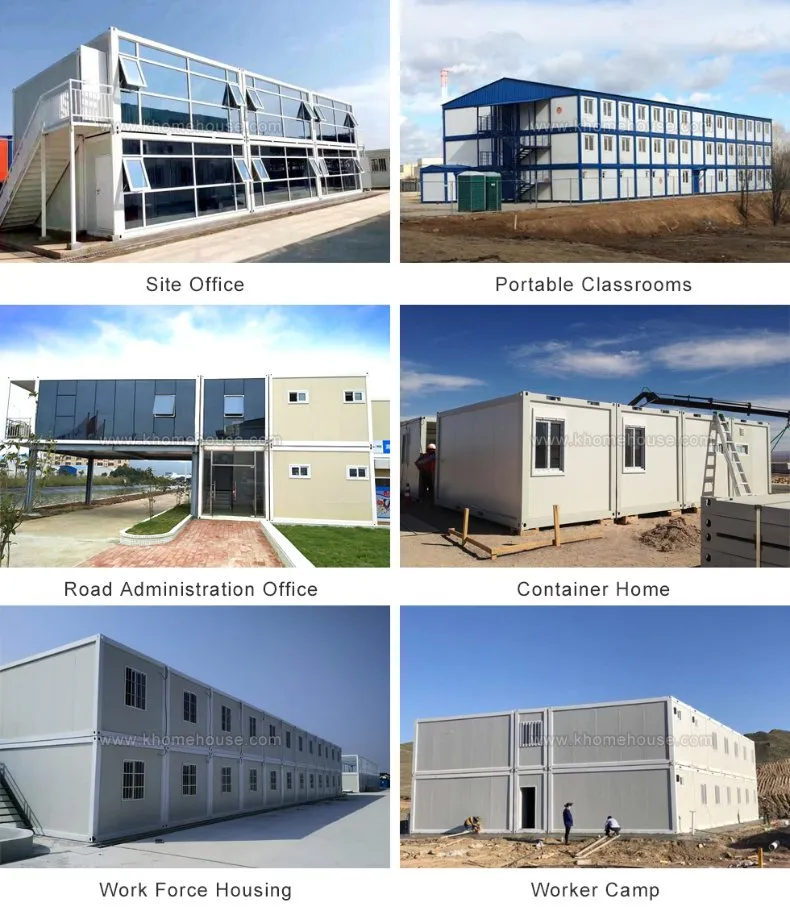

Project Showcase
Project 1 Project 2 Project 3
Project 4 Project 5
Frequently Asked Questions
Can you accept custom services and personalized designs?
Yes. Our professional engineering team can create detailed drawings following specific customer requirements and functional needs.
What are the accepted payment terms?
T/T is our standard payment method. We typically require a 30% deposit before production and the remaining 70% balance before loading.

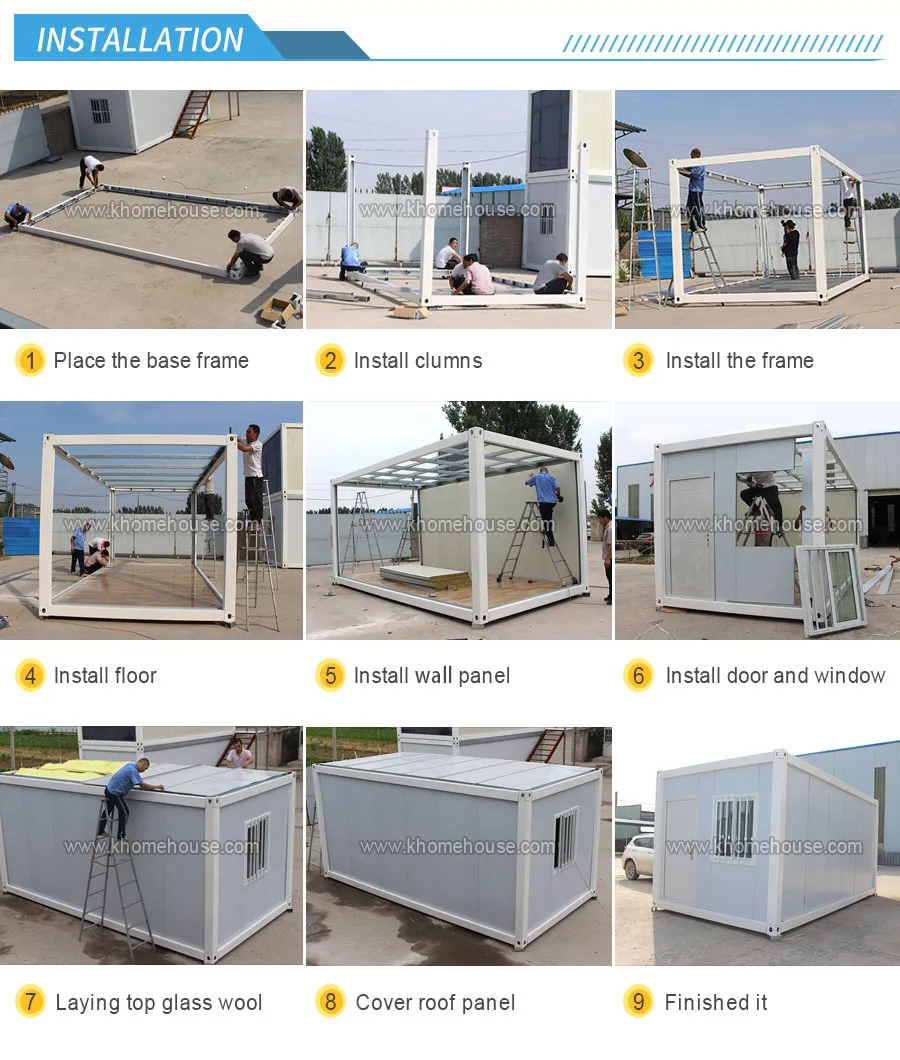

How is the modular unit installed on-site?
We provide comprehensive installation videos and manuals. If necessary, technicians can be dispatched to assist on-site (subject to travel and service fees).
What is the expected lifespan of these units?
The structural life is designed for up to 70 years, while the service life of the standard prefab panels and components can reach over 30 years with proper maintenance.

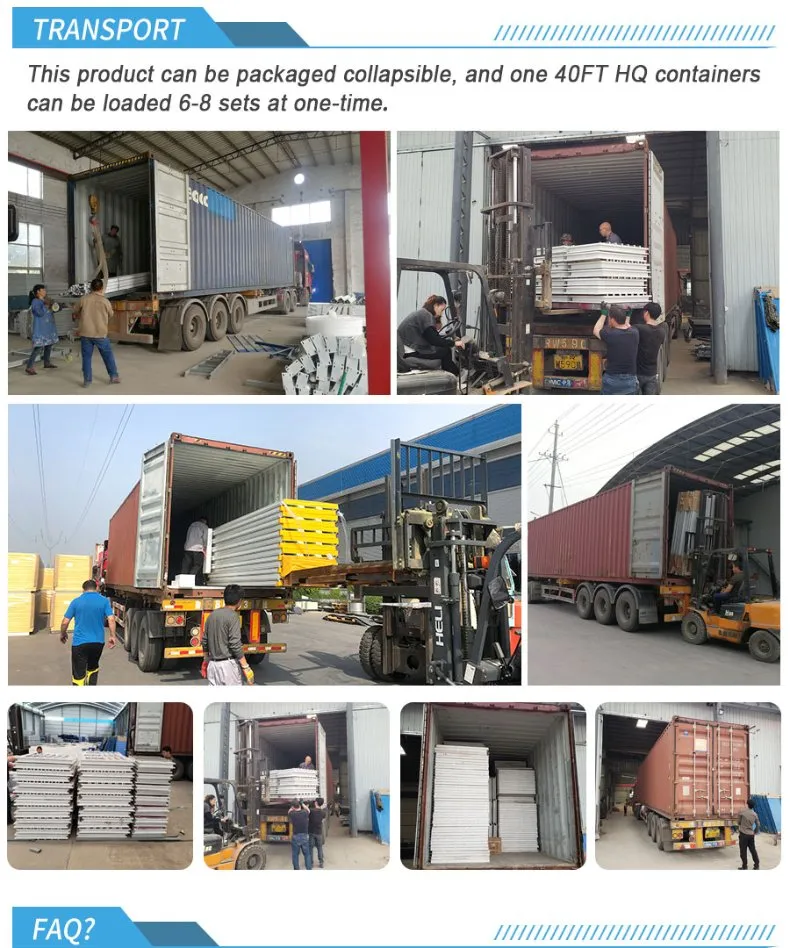

How are the units transported?
The units are designed for efficient transport; typically, 4 standard container house units can be loaded into one 40FT shipping container to reduce shipping costs.
Are these units resistant to extreme weather?
Yes, they are engineered to withstand Grade 12 winds and feature fireproof and waterproof materials to ensure safety in various environmental conditions.
