Available Features: Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof.

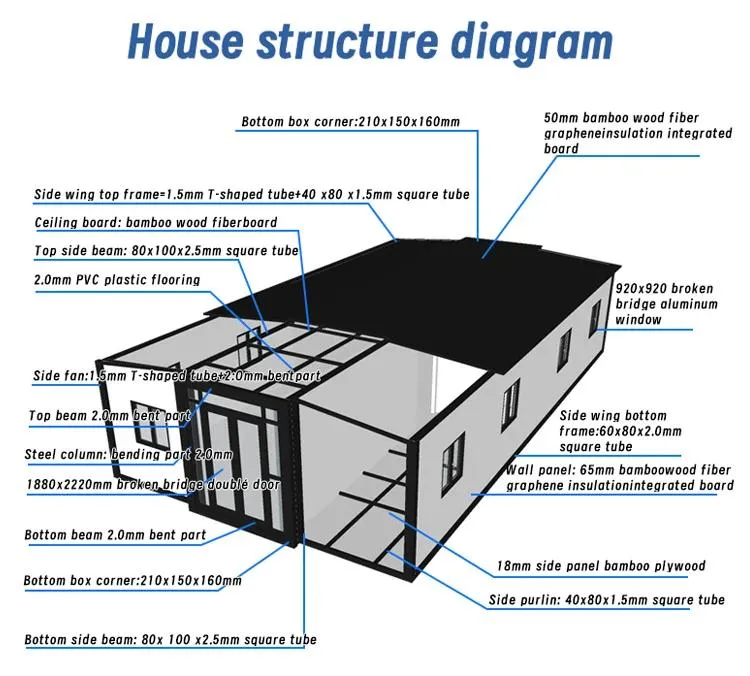

| Expandable Container House Technical Parameters | ||
|---|---|---|
| Framework | Main beam | Galvanized square tube 80*100*2.5MM Q235 |
| Integrated column head | Galvanized folding piece 150*210*2.0MM Q235 | |
| Sub-frame | Galvanized square tube 40*60*1.0MM Q235 | |
| Hinges | Galvanized thickened hinge Q235 | |
| Frame color | Painting process White frame | |
| Floor | Middle floor | 18mm glass magnesium board (non-asbestos) |
| Both sides floor | 18mm glass magnesium board (non-asbestos) | |
| Floor leather | Floor leather Palm wood | |
| Insulated Wall | Wall panel | 70mm sandwich board, double-sided 0.25 color roll, EPS material |
| Partition | 50mm sandwich panel, color steel plate double-sided 0.25 | |
| Main top and side top | 50mm sandwich panel, color steel plate double-sided 0.25 | |
| Electrical System | Parameters | Standard Australian wires; 6² incoming, 4² AC sockets, 2.5² ordinary, 1.5² lighting. 6 LED ceiling lights. (Customizable) |

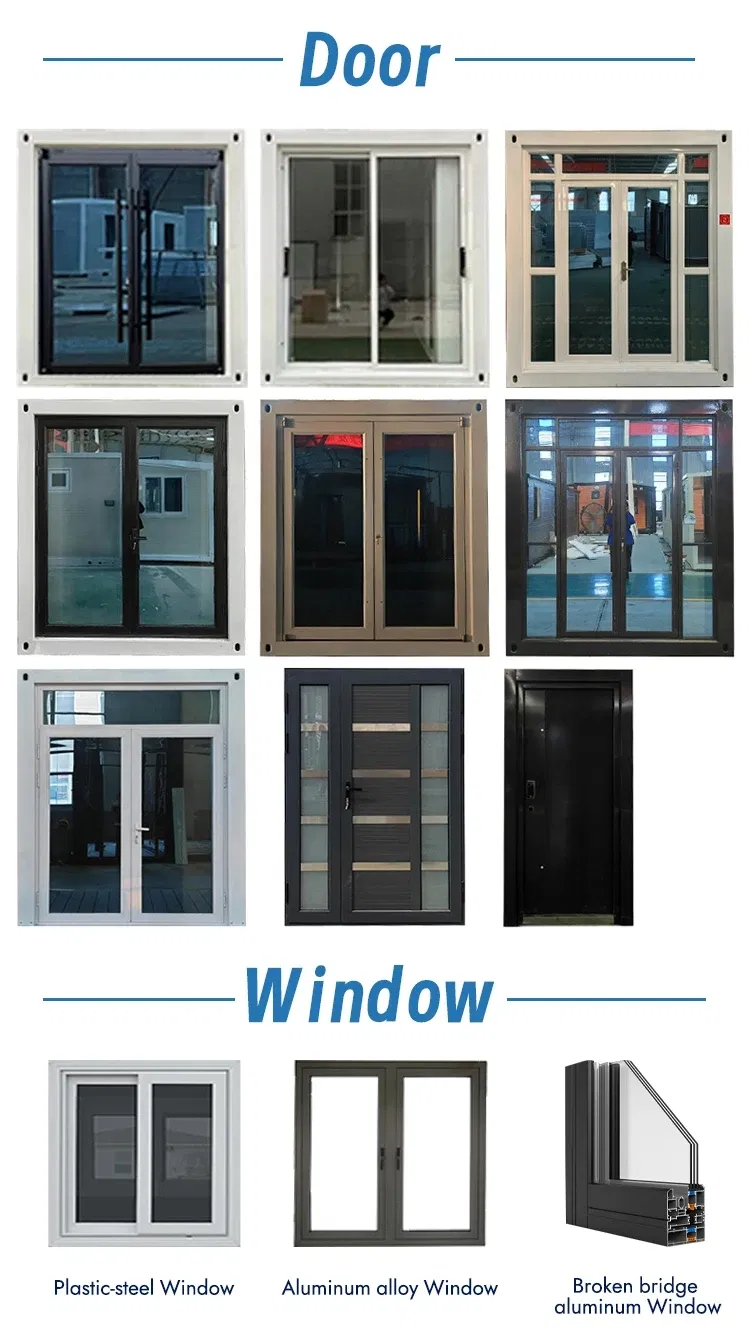

| Door & Window | Entrance door | Thermally-insulated aluminum (double-glazed tempered blue film) W1890*H2230 |
| Window | Aluminum alloy sliding window with diamond mesh 920*920 (6 pieces) | |

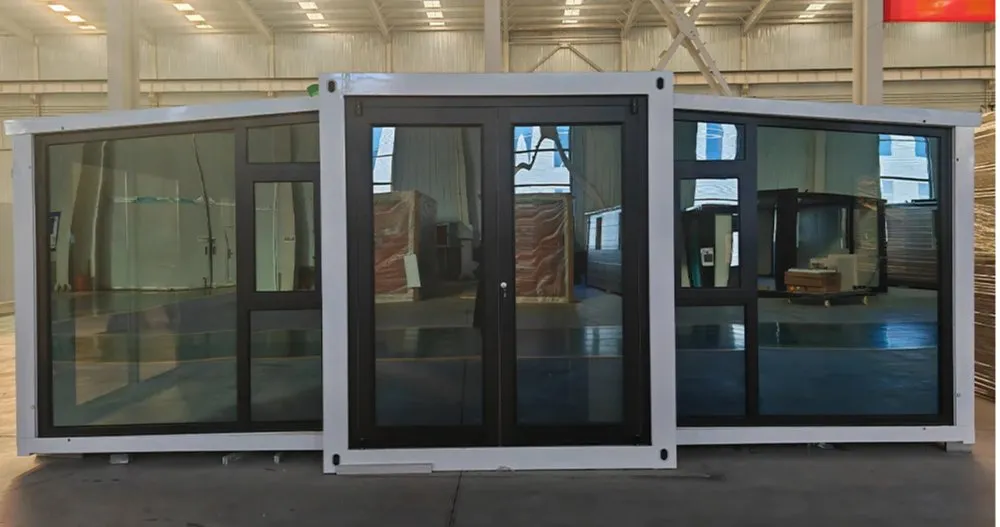

The double-wing expandable house serves as an innovative exhibition space for product launches and events, offering a novel method to attract attention.

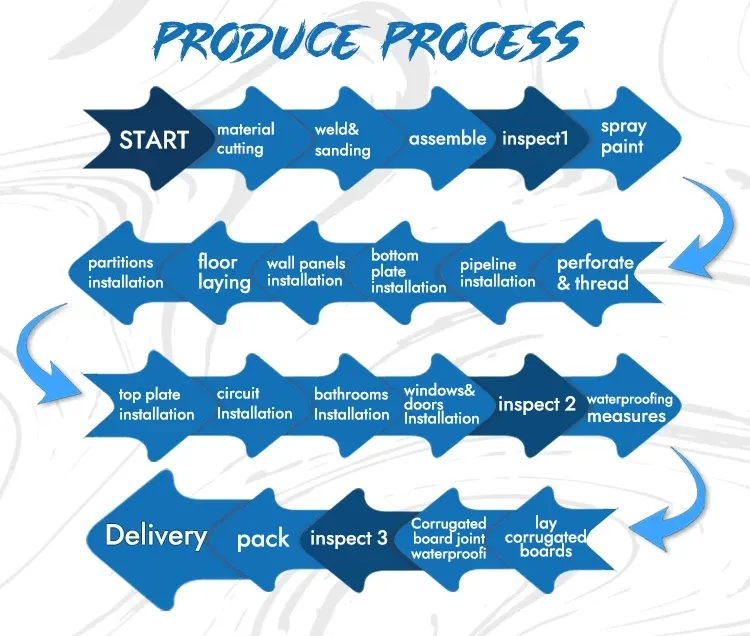

Standardized flat-base structure fits container transport tools, reducing logistics costs. Factory prefabrication allows quick on-site assembly.
Crafted from recyclable steel and sustainable panels, offering durability while aligning with green living standards.
Modular assembly for horizontal or vertical expansion, ideal for residences, stores, and emergency facilities.
