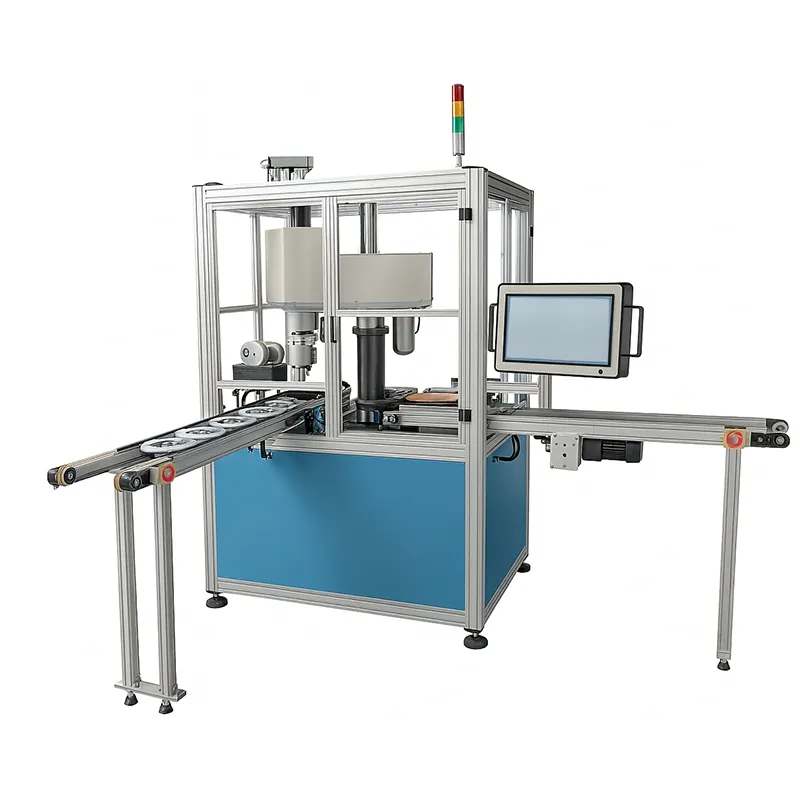

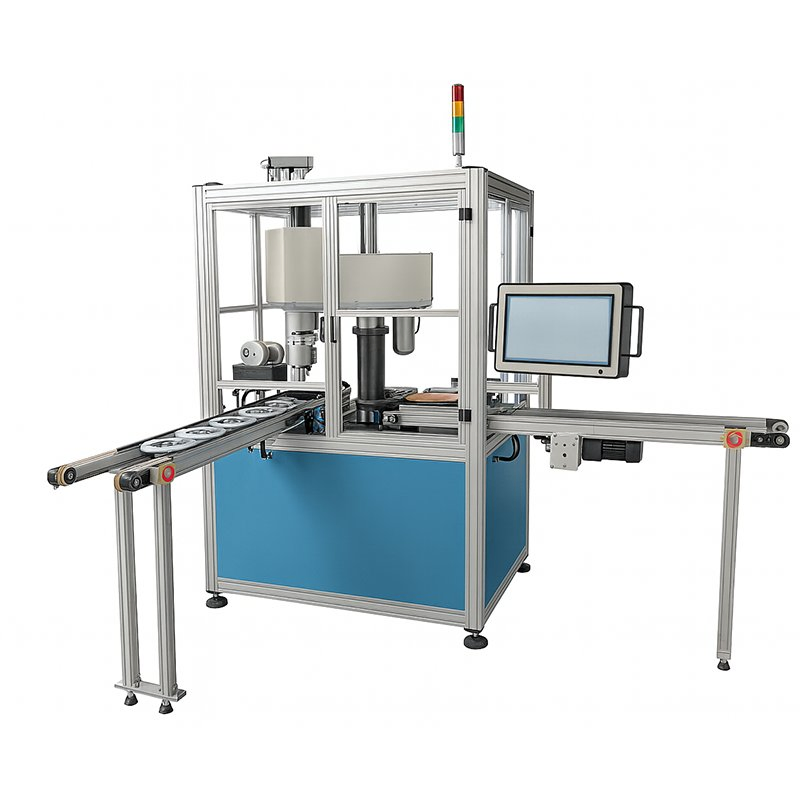

The KS-GPM-1210S is a fully automatic pressure-controlled lapping and polishing system designed for precision surface finishing of various hard and brittle materials. Developed with advanced technology and user-centered design, this system is ideal for processing materials such as metals, ceramics, glass, rock samples, and mineral specimens. Its robust structure, automated operation, and high consistency make it suitable not only for laboratory research but also for small-scale production environments that require stable and repeatable results.

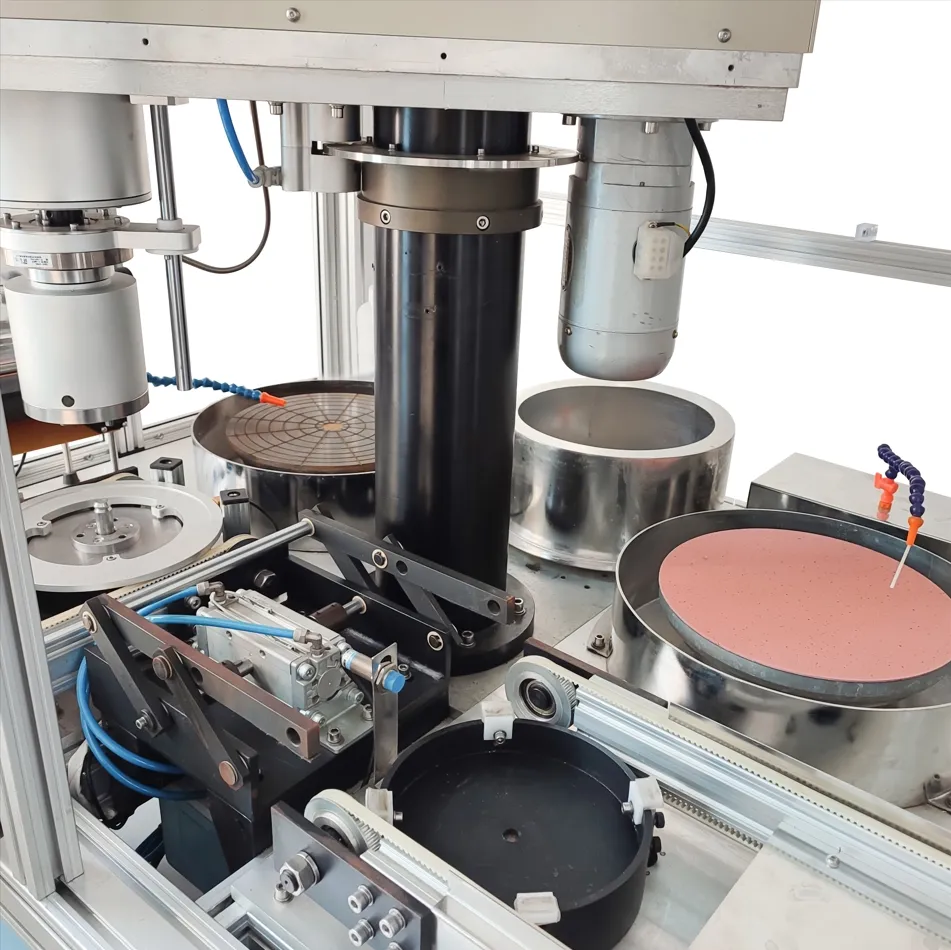

At the core of the KS-GPM-1210S is a high-precision control system that enables fully automated processing cycles. Operators can program lapping and polishing sequences to meet specific surface finish requirements, minimizing the need for manual intervention. The integration of automatic pressure control allows for uniform material removal across all samples, resulting in flat, polished surfaces with minimal variation between workpieces.
The machine is engineered for excellent reliability and long-term durability. Its heavy-duty frame and high-quality components ensure stable operation even during extended working hours. The use of corrosion-resistant materials and an ergonomic layout enhances both longevity and ease of maintenance. The intuitive control panel provides real-time monitoring of process status, offering operators complete control and flexibility over polishing parameters.
One of the key features of the KS-GPM-1210S is its intelligent sample holder system, which accommodates multiple specimens at once. This significantly boosts productivity by allowing simultaneous processing of several samples under consistent pressure and motion. The automated in/out conveyor system further streamlines the workflow by enabling continuous loading and unloading of samples, thereby reducing downtime and labor requirements.
In terms of safety and usability, the KS-GPM-1210S includes multiple interlock protections, fault detection systems, and automated shut-off features to ensure safe operation at all times. The enclosed design contains debris and prevents accidental exposure to moving parts, making it suitable for use in cleanroom environments and safety-sensitive facilities.
Technical Parameters
Model
KS-GPM-1210S
Power Supply
220V, 50Hz
Lapping Speed
10-300 rpm
Polishing Speed
10-300 rpm

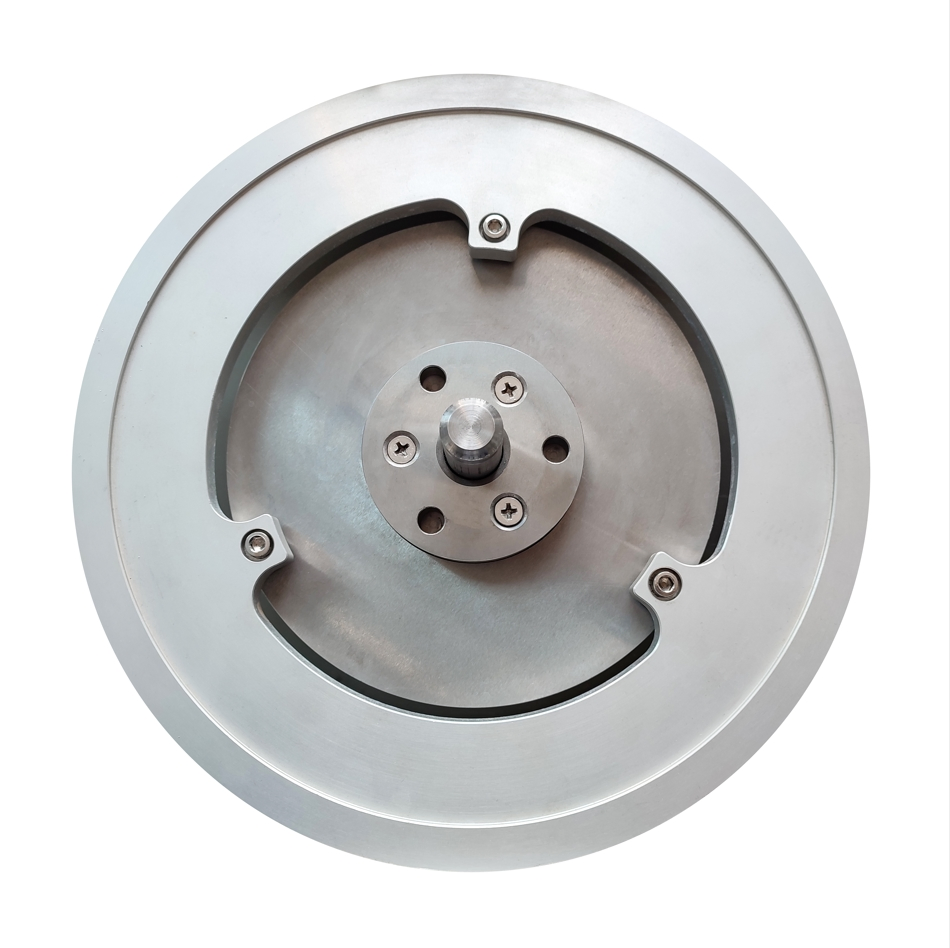

Sample Holder
Φ160mm, up to 5 samples
Conveyor System
1650×300mm in/out sample tray conveyor
Air Supply Pressure
0.1-0.7 MPa
Pressure Spindle Speed
10-100 rpm
Pressure Spindle Pressure Range
0.1-30 kg
Water Supply
Water storage container (provided by customer)

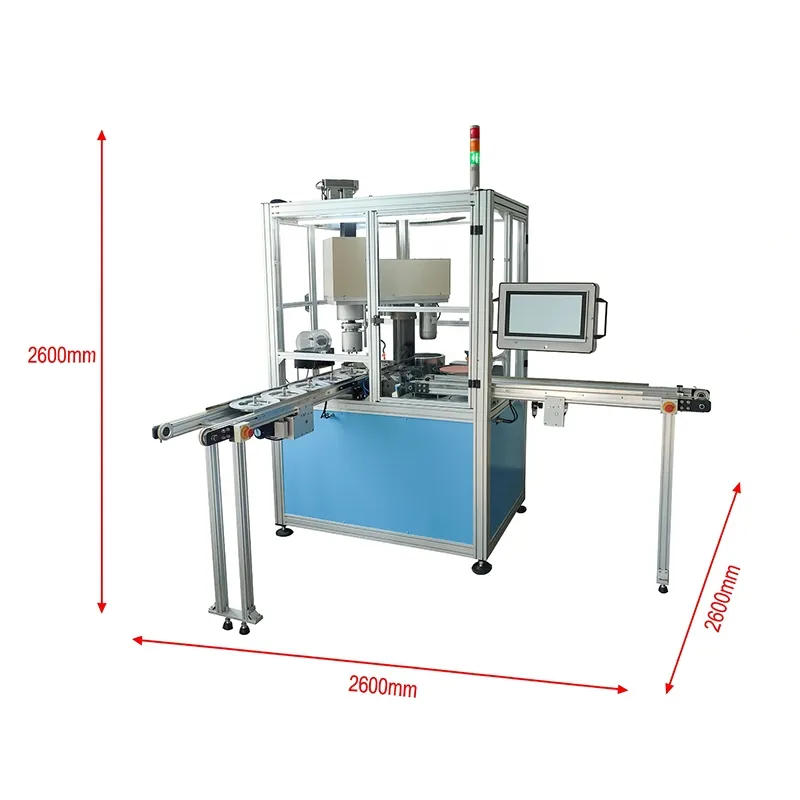

Dimensions
2600mm × 2600mm × 2600mm
Frequently Asked Questions
What types of materials can the KS-GPM-1210S process?
The system is specifically designed for high-precision finishing of hard and brittle materials, including various metals, advanced ceramics, glass, mineral specimens, and rock samples.
How does the automatic pressure control improve results?
The automated pressure system ensures that constant and uniform force is applied to all workpieces. This eliminates manual inconsistency, leading to superior flatness and repeatable surface finishes.
Can the system handle multiple samples at the same time?
Yes, it features an intelligent sample holder (Φ160mm) capable of processing up to 5 samples simultaneously, significantly increasing laboratory or production efficiency.
Is the machine suitable for cleanroom use?
Yes. The KS-GPM-1210S features an enclosed design that effectively contains debris and polishing slurries, making it appropriate for safety-sensitive and cleanroom environments.
What kind of polishing compounds are compatible with this system?
The machine is highly versatile and supports a wide range of consumables, including water-based and oil-based slurries, diamond suspensions, and other standard laboratory polishing compounds.
Does the machine require complex plumbing for water supply?
No. It is designed to operate with an external water storage container. This setup improves water efficiency and allows for installation in facilities where centralized plumbing might be limited.
