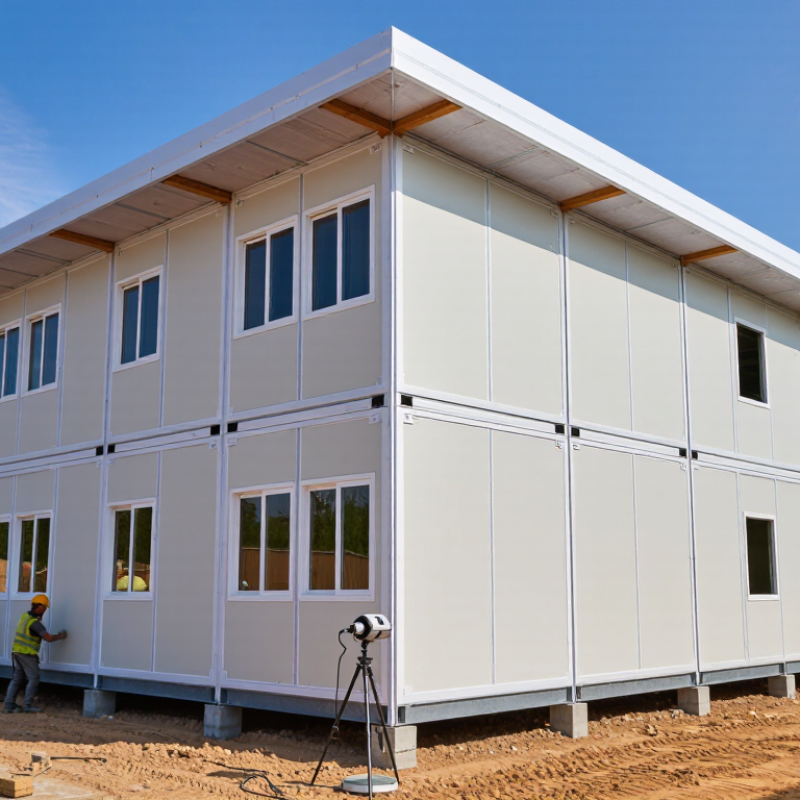

| 1 |
Increase continuous wall insulation |
Heat conduction through wall panels, studs, joints, and framing members. |
Use a continuous insulation layer outside or inside the structural frame. Avoid gaps between boards, batts, and panel sections, and stagger board joints where applicable. |
A lower wall U-value indicates better insulation. Many energy-efficient designs target approximately 0.15–0.30 W/m²·K, depending on climate and local code. |
Review the calculated assembly U-value and inspect insulation continuity before closing the wall. |
| 2 |
Upgrade roof and ceiling insulation |
Heat rises and can escape through the roof, ceiling penetrations, and service openings. |
Install a continuous, correctly supported insulation layer above the ceiling or within the roof build-up. Maintain the required ventilation path in ventilated roof assemblies. |
A commonly targeted roof or ceiling U-value is approximately 0.10–0.20 W/m²·K, subject to climate and regulations. |
Check insulation depth, compression, air gaps, and roof-edge details during installation. |
| 3 |
Treat thermal bridges at module joints |
Localized heat flow through steel frames, floor edges, corners, balconies, fasteners, and connections between prefabricated modules. |
Align insulation across module interfaces, reduce unnecessary metal continuity, and use thermally improved connectors or thermal-break materials where required. |
Thermal bridges should be assessed using linear or point thermal transmittance values, commonly expressed as ψ-value or χ-value. |
Use two-dimensional or three-dimensional thermal-bridge calculations and inspect connection details on site. |
| 4 |
Improve the airtightness layer |
Uncontrolled air leakage through panel seams, service penetrations, door frames, and poorly sealed module connections. |
Create a continuous air-control layer, seal all membrane overlaps, tape or gasket panel joints, and coordinate penetrations before factory and site installation. |
Air leakage is often reported as n50 in air changes per hour at 50 Pa. A lower value means a tighter envelope; the target should follow the applicable standard or project specification. |
Conduct a blower-door test, preferably once before finishes and again at practical completion. |
| 5 |
Select high-performance windows and doors |
Heat transfer through glazing, frames, spacers, thresholds, and perimeter gaps. |
Use low-emissivity double or triple glazing when justified by the climate and energy model. Install continuous perimeter seals and insulate around the frame without obstructing drainage. |
Whole-window U-values commonly fall around 0.8–1.6 W/m²·K for efficient products; the complete window value is more useful than the center-glass value alone. |
Review certified whole-window U-values, air-leakage ratings, installation details, and perimeter seal continuity. |
| 6 |
Insulate the floor and foundation perimeter |
Heat loss through floor panels, slab edges, crawl spaces, foundations, and exposed supports. |
Insulate the floor assembly continuously, protect exposed edges, seal service penetrations, and address the junction between the floor, wall, and foundation. |
Floor performance depends on ground conditions and edge details; a typical design target may be approximately 0.15–0.30 W/m²·K for the floor assembly. |
Inspect floor-edge insulation, supports, and junction details before access is restricted. |
| 7 |
Balance insulation with controlled ventilation |
Ventilation heat loss caused by uncontrolled infiltration or excessive exhaust air without heat recovery. |
Maintain adequate fresh-air supply, use demand-controlled ventilation where appropriate, and consider heat-recovery ventilation in a relatively airtight building. |
Heat-recovery efficiency is commonly stated as a percentage. Actual delivered performance depends on airflow, frost control, duct design, filtration, and maintenance. |
Commission airflow rates, verify duct insulation, check fan operation, and review indoor carbon-dioxide and humidity levels. |
